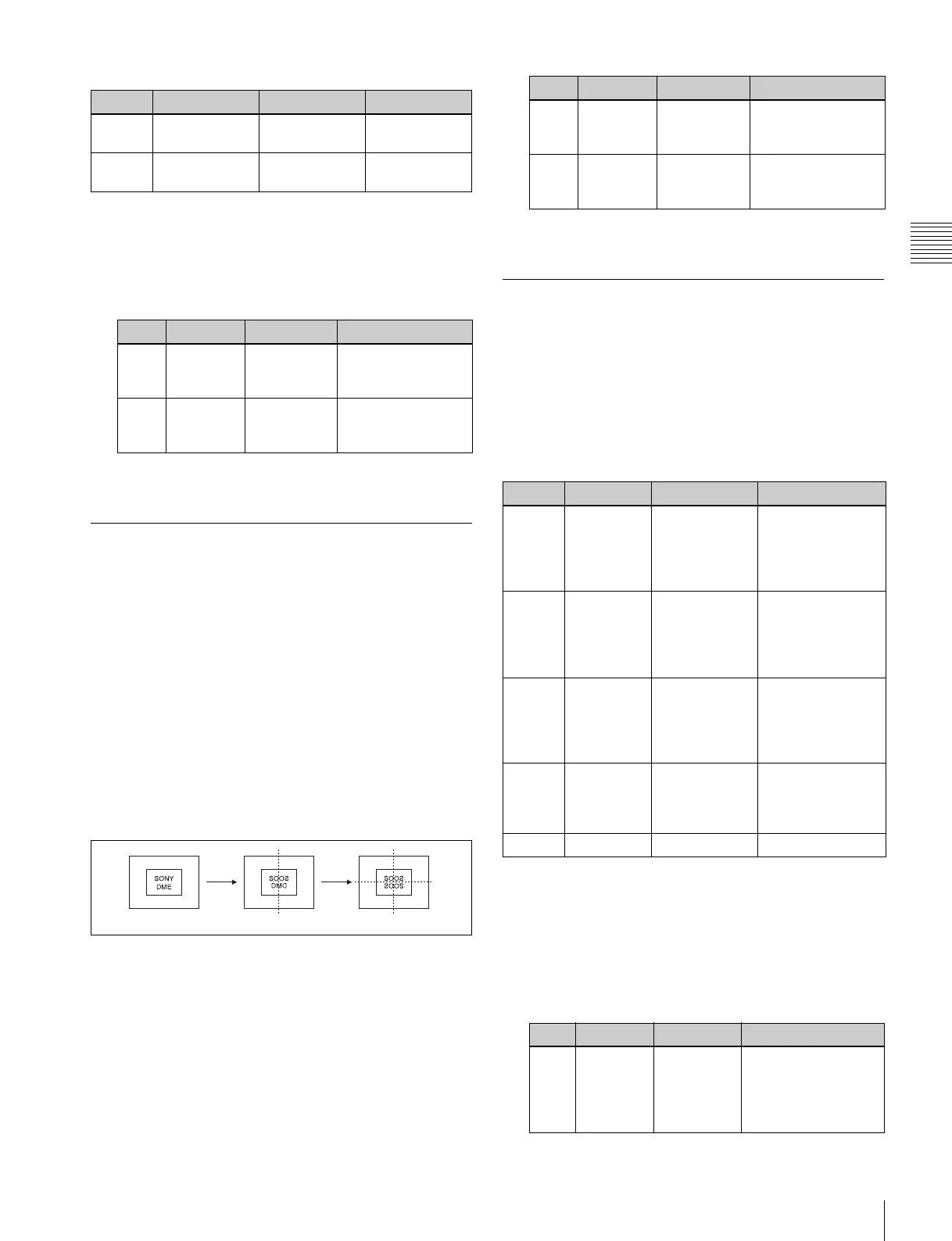

Applying Special Effects (Nonlinear Effect Settings)
Chapter 11 DME Operations
To set the partition position
1 Press [Position], turning it on.
2 Set the following parameters.
a) Setting for SD 4:3, SD 16:9
b) Setting for HD 4:3, HD 16:9
Mirror Settings
You can choose to reflect in the directions left to right,
right to left, bottom to top, top to bottom, or any
combination of directions. You can also set the position of
the border between original and reflections.
To apply the Mirror effect
With the Mirror menu displayed, press [Left to Right],
[Right to Left], [Top to Bottom], or [Bottom to Top] to set
the reflection method (multiple selections possible).
Left to Right: Reflect left side on right.
Right to Left: Reflect right side on left.
Top to Bottom: Reflect top side on bottom.
Bottom to Top: Reflect bottom side on top.
To set the position of the border between original
and reflection
1 Press [Position].
2 Set the following parameters.
a) Setting for SD 4:3, SD 16:9
b) Setting for HD 4:3, HD 16:9
Multi Mirror Settings
You can set the width of the original, the center position of
the original, the offset of the image with fixed mirrors, the
direction of the mirrors, and other parameters.
To apply the Multi Mirror effect
With the Multi Mirror menu displayed, set the following
parameters.
a) Setting for SD 4:3, SD 16:9
b) Setting for HD 4:3, HD 16:9
To set the center position of original image
1 Press [Position], turning it on.
2 Set the following parameters.
4 Width V Vertical width
of partition
0.00 to 100.00
5 Angle Angle of
partition line
–8.000 to
+8.000
Knob Parameter Adjustment Setting values
1 H Horizontal
partition
position
–5.000 to +5.000
a)
–20.000 to
+20.000
b)
2V Vertical
partition
position
–5.000 to +5.000
a)
–20.000 to
+20.000
b)
Parameter group [2/2]
Knob Parameter Adjustment Setting values
Left to Right Top to Bottom
Knob Parameter Adjustment Setting values
1H Horizontal
border
position
–8.000 to +8.000
a)
–32.000 to
+32.000
b)
2V Vertical
border
position
–6.000 to +6.000
a)
–24.000 to
+24.000
b)
Knob Parameter Adjustment Setting values
1 Interval H Horizontal
distance
between
mirrors
(original width)
0.000 to 10.000
a)
0.000 to 40.000
b)
2 Offset H Amount of
horizontal
offset of image
with mirrors
fixed
–4.000 to +4.000
a)
–16.000 to
+16.000
b)
3 Interval V Vertical
distance
between
mirrors
(original width)
0.000 to 10.000
a)
0.000 to 40.000
b)
4 Offset V Amount of
vertical offset
of image with
mirrors fixed
–4.000 to +4.000
a)
–16.000 to
+16.000
b)
5 Angle Mirror angle –8.000 to +8.000
Knob Parameter Adjustment Setting values
1H Horizontal
original
center
position
–4.000 to +4.000
a)
–16.000 to +16.000
b)
