Names and Functions of Parts of the Control Panel
Chapter 2 Menus and Control Panel
f External device operation buttons
Pressing the following buttons selects the search dial
mode.
g TIMELINE button
Press to switch the device selected with the device
selection buttons to timeline setting mode.
h STOP button
When pressed, this lights amber, and operation of the
device selected with the device selection buttons stops.
i Search dial
Use this for search and other operations on the material of
an external device.
For details, see “Controlling Tape/Disk Transport” in
Chapter 12 (Volume 2).

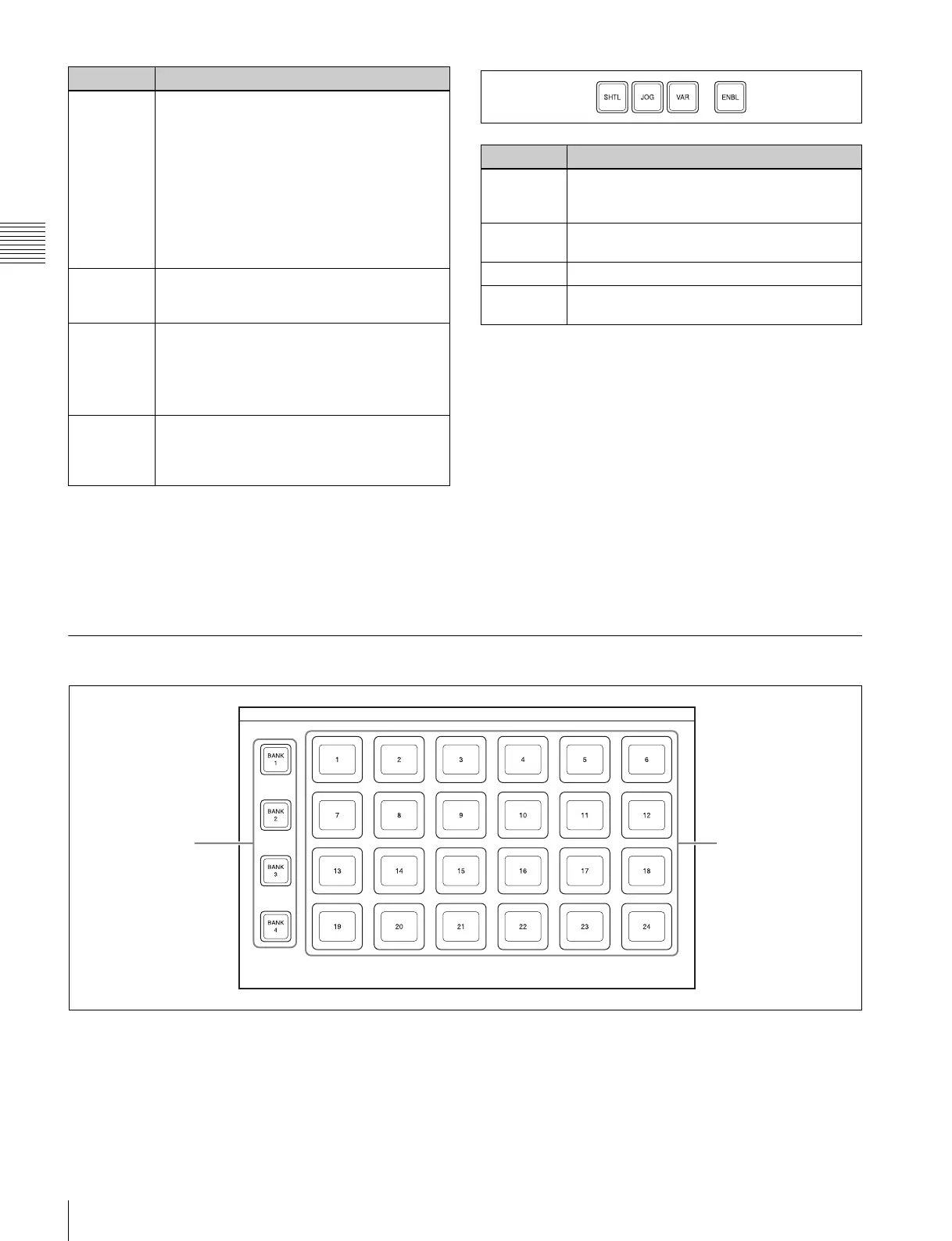

Utility/Shotbox Control Block (MKS-8033 Utility/Shotbox Module, Option)
a Bank selection buttons
Press any of the [BANK1] to [BANK4] buttons to select a
bank of 24 memory recall buttons. The selected button
lights amber.
b Memory recall buttons
You can use these buttons to recall frequently used menus,
utility functions, shotbox registers, or macro registers that
you have assigned.
PLAY • When pressed, this button lights amber, and
the device selected with the device
selection buttons plays. The playback stops
not only if the [STOP] button is pressed, but
also if any of the [STB OFF], [SHTL], [JOG],
[CUE], [REW], [PLAY], [FF], and [ALL
STOP] buttons is pressed.
• When the [VAR] button is pressed while the
device is playing back, the device plays at
one times normal speed in variable mode.
FF When pressed, this button lights amber, and
the material of the device selected with the
device selection buttons is fast forwarded.
ALL STOP • When pressed, all device material playback
stops.
• During cueing up of any of the devices, this
button flashes amber, and when all cueing
up operations are completed, it lights green.
REC When pressed simultaneously with the [PLAY]
button, this button lights red (the [PLAY]
button lights amber), and the image from the
selected device is recorded.
Name Description
Name Description
ENBL
(enable)
When this is pressed, turning it on, the search
dial [VAR], [JOG], and [SHTL] button
operations are enabled.
VAR
(variable)
Sets the search dial to variable mode.
JOG Sets the search dial to jog mode.
SHTL
(shuttle)
Sets the search dial to shuttle mode.
1 Bank selection
buttons
2 Memory recall
buttons
