Sony MVS-7000X - Edge Enhancement

120
Resizer
Chapter 4 Keys
1 In the M/E-1 >Key1 >Processed Key menu, press
[Resizer], turning it on.
2 Press [Enhanced Effect].

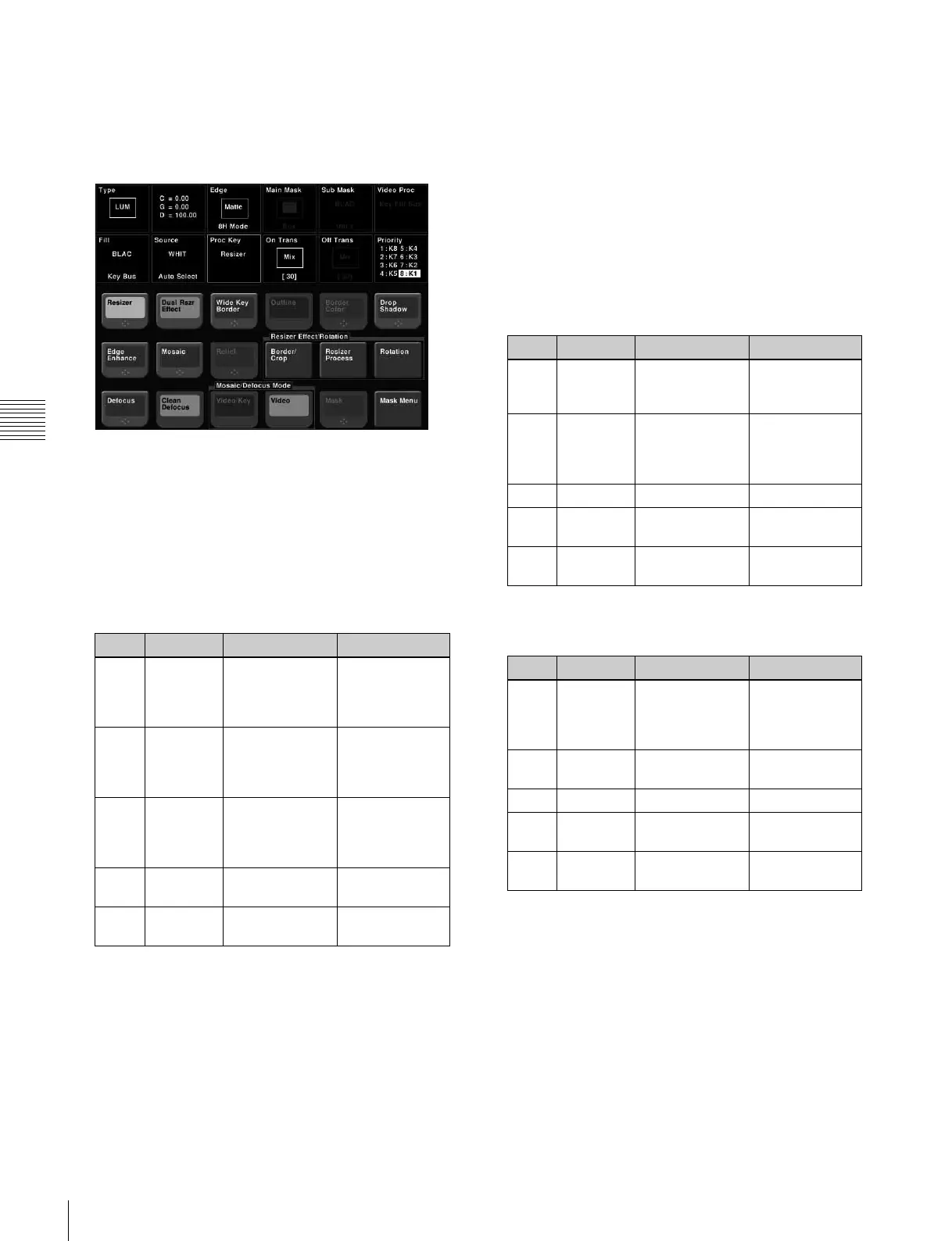

The Enhanced Effect menu appears.
Applying a wide key border
1 In the M/E-1 >Key1 >Processed Key >Enhanced
Effect menu, press [Dual Rszr Effect], turning it on.
2 Press [Wide Key Border], turning it on.
3 Adjust the following parameters.
a) Shared with the drop shadow “Soft” value.
4 To add an outline, press [Outline], turning it on.
5 To adjust the border color, press [Border Color].
6 Set the color parameters.
For details, see “To apply color to a border” (page
119).
Applying a drop shadow
1 In the M/E-1 >Key1 >Processed Key >Enhanced
Effect menu, press [Dual Rszr Effect], turning it on.
2 Press [Drop Shadow], turning it on.
3 Set the parameters.
The valid ranges of the parameter values depend on the
combination of signal format (SD/HD) and aspect
ratio (4:3/16:9) selected in the system, as follows.
SD format
a) Shared with the wide key border “Soft” value.
HD format
a) Shared with the wide key border “Soft” value.
Edge enhancement
Adjusting the gain sharpens the image.
1 In the M/E-1 >Key1 >Processed Key >Enhanced
Effect menu, press [Edge Enhance], turning it on.
2 Adjust the following parameters.
Knob Parameter Adjustment Setting values
1 H Simultaneously
adjust border
width of left and
right edges
0.00 to 100.00
2 V Simultaneously
adjust border
width of upper
and lower edges
0.00 to 100.00
3 All Simultaneously
adjust border
width of all four
edges
Value of H
shown
4Soft
a)
Softness of
border
0.00 to 100.00
5 Density Density of
border
0.00 to 100.00
Knob Parameter Adjustment Setting values
1H Horizontal
position of
shadow
–8.00 to +8.00
2 V Vertical position
of shadow
–6.00 to +6.00
(4:3)
–4.50 to +4.50
(16:9)
3 Size Shadow size 0.00 to 2.00
4Soft
a)
Softness of
shadow
0.00 to 100.00
5 Density Density of
shadow
0.00 to 100.00
Knob Parameter Adjustment Setting values
1H Horizontal
position of
shadow
–24.00 to
+24.00 (4:3)
–32.00 to
+32.00 (16:9)
2 V Vertical position
of shadow
–18.00 to
+18.00
3 Size Shadow size 0.00 to 2.00
4Soft
a)
Softness of
shadow
0.00 to 100.00
5 Density Density of
shadow
0.00 to 100.00
