Settings Relating to Keys,
Wipes, Frame Memory
and Color Correction
(Key/Wipe/FM/CCR Menu)
For settings relating to keys, wipes, frame memory and
Color Correction, use the Switcher >Key/Wipe/FM/CCR
menu.
To display the Key/Wipe/FM/CCR menu
In the Engineering Setup menu, select VF3 ‘Switcher’ and
HF5 ‘Key/Wipe/FM/CCR.’
The status area shows the key memory settings, mask and
border processing order, key priority, cross-point hold,
pattern limit transition, and wipe edge settings for each of
the M/E and PGM/PST banks.
The following functions are available here.
• Key Memory: Set the key memory operation mode for
each of the M/E and PGM/PST banks.
• Video Proc Memory: Enable or disable video process
memory.
• Show Key: Enable or disable show key for edit preview,
M/E and Pvw/K-Pvw of P/P.
• Key Auto Drop: For each M/E or PGM/PST bank,
specify a key to be turned off automatically when you
press a cross-point button for the bus to be output as the
background.
• Mask/Border Process: Set the processing order of
masks and borders for each M/E or PGM/PST bank.
• Key Priority: Set the key priority operation mode for
each of the M/E and PGM/PST banks. In DSK mode, the
key priority is fixed.
• Xpt Hold mode: Set the operation mode for the cross-
point hold button provided on the key bus for each of the
M/E and PGM/PST banks.
• Pattern Limit Transition: Set the operation mode
when the pattern limit is released for each of the M/E and
PGM/PST banks.
• Wipe Edge Default: Adjust the wipe edge softness for
each of the M/E and PGM/PST banks.
• CCR Internal Signal Enable: Select whether signals
generated internally to the switcher can be selected as
input material to the color corrector.
• FM Auto Store: Switch on or off the function to
automatically attach a name and save in frame memory.
Switching Video Process Memory
On or Off
In the Switcher >Key/Wipe/FM/CCR menu, press [Video
Proc Memory], turning it on.
Settings for the Show Key Function
1
In the Switcher >Key/Wipe/FM/CCR menu, press
[Show Key].
The Show Key menu appears.
2
In the <Show Key Enable> group, press the signal for
which “show key” is enabled, turning it on.
3
To set the time for which “show key” is held, press
[Hold Time].
4
Adjust the following parameter.
Settings for Key Auto Drop Function
The “key auto drop” function automatically switches off a
particular key when you press a cross-point button in a bus
that outputs the background on the particular switcher
bank (PGM/PST, or M/E-1 to M/E-4).
When the background output bus is in flip-flop mode, this
is always the A bus. In bus-fixed mode, it is either the A
bus or the B bus depending on the fader lever position.
For details of bus-fixed mode, see “Executing a
Transition” in Chapter 3 (Volume 1).
1
In the Switcher >Key/Wipe/FM/CCR menu, press
[Key Auto Drop].

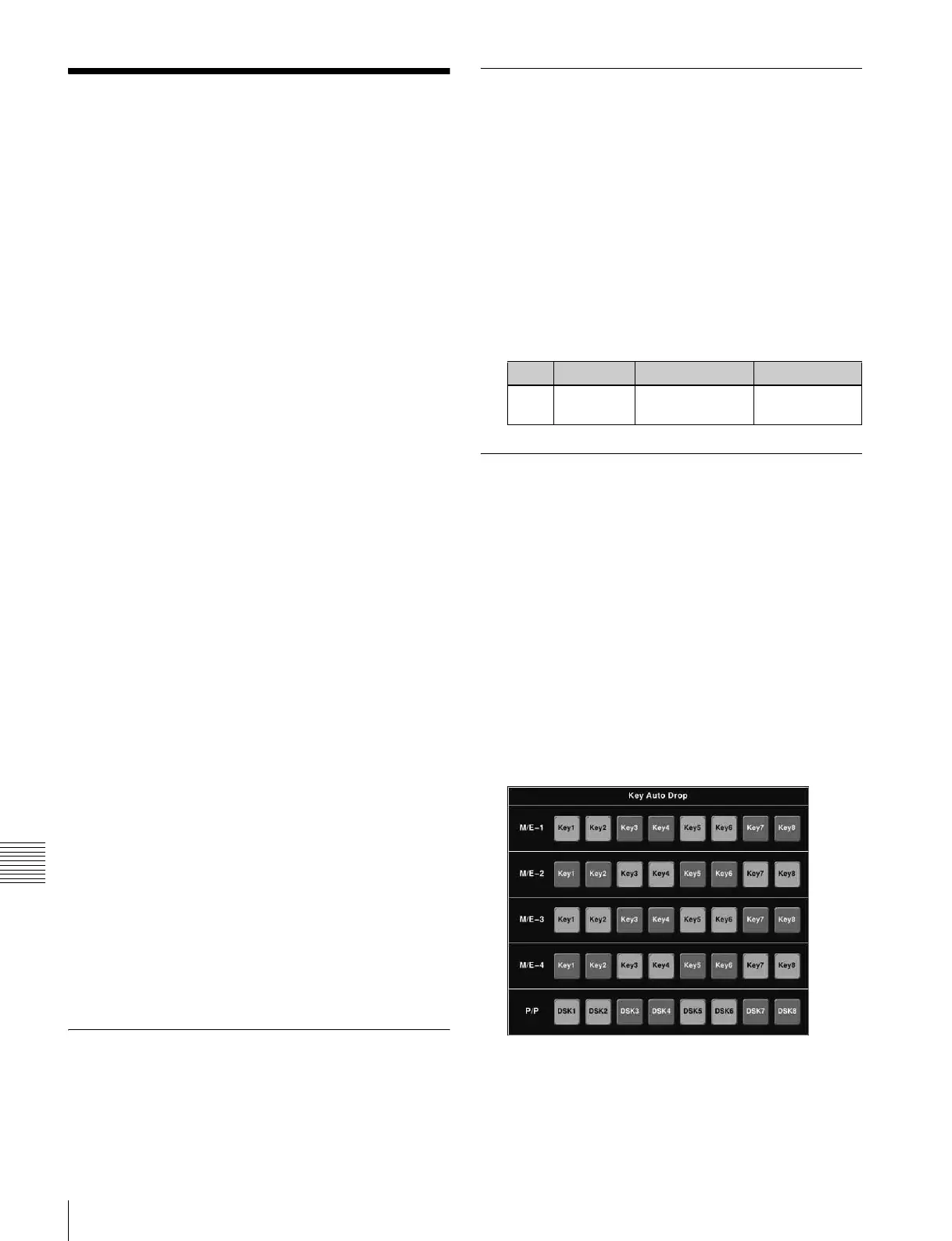

The Key Auto Drop menu appears.
2
In the <Key Auto Drop> group, press the name of the
keyer for which you want the key to be deleted
automatically, turning it on.
Knob Parameter Adjustment Setting values
1 Hold Time Show key hold
time
0 to 999
(frames)
