Applying Special Effects (Lighting and Recursive Effects)
Chapter 11 DME Operations
Mat: An effect like light striking paper, cloth, or
another diffusively reflective surface.
2 Set the following parameters.
a) For SD 4:3 and SD 16:9
b) For HD 4:3
c) For HD 16:9
3 When you select Normal or Mat in step 1, press [Bar
Diffuse Color], turning it on, and adjust the following
parameters to set the color of the diffuse light area.
Trail Settings
• Of the three effects of trail, motion decay and keyframe
strobe, only one can be on at a time. When one of them
is on, turning another of them on automatically turns off
the one that has been on.
• Turning Trail on when Motion Decay (see page 284),
Keyframe Strobe (see page 285) or Wind (see page 286)
is on turns it off automatically.
Applying the Trail effect
1 In the DME menu, select VF5 ‘Light/Trail’ and HF2
‘Trail.’
The Trail menu appears.
2 Press [Trail], turning it on.
3 Set the parameters.
a) 0.00 is no trail. At 100.00, the trail does not disappear.
4 To erase the trail, press [Trail Eraser], turning it on.
Switching the priority between the current
image and trail superimposed
In the <Priority> group, select the method of
superimposition.
Over: Current image is on top.
Under: Trail is on top.
Selecting the source to create a trail
In the <Trail Source> group, select the source to create a
trail.
Knob Parameter Adjustment Setting values
1 Intensity Intensity of
diffuse light
area
0.00 to 100.00
2 Offset Offset of
center of
diffuse light
area
–4.00 to +4.00
a)
–12.00 to +12.00
b)
–16.00 to +16.00
c)
3 Width Width of
diffuse light
area
0.00 to 100.00
4 Soft Softness of
diffuse light
area
0.00 to 100.00
Knob Parameter Adjustment Setting values
1 Luminance Luminance 0.00 to 100.00
2 Saturation Saturation 0.00 to 100.00
3 Hue Hue 359.99 to 0.00

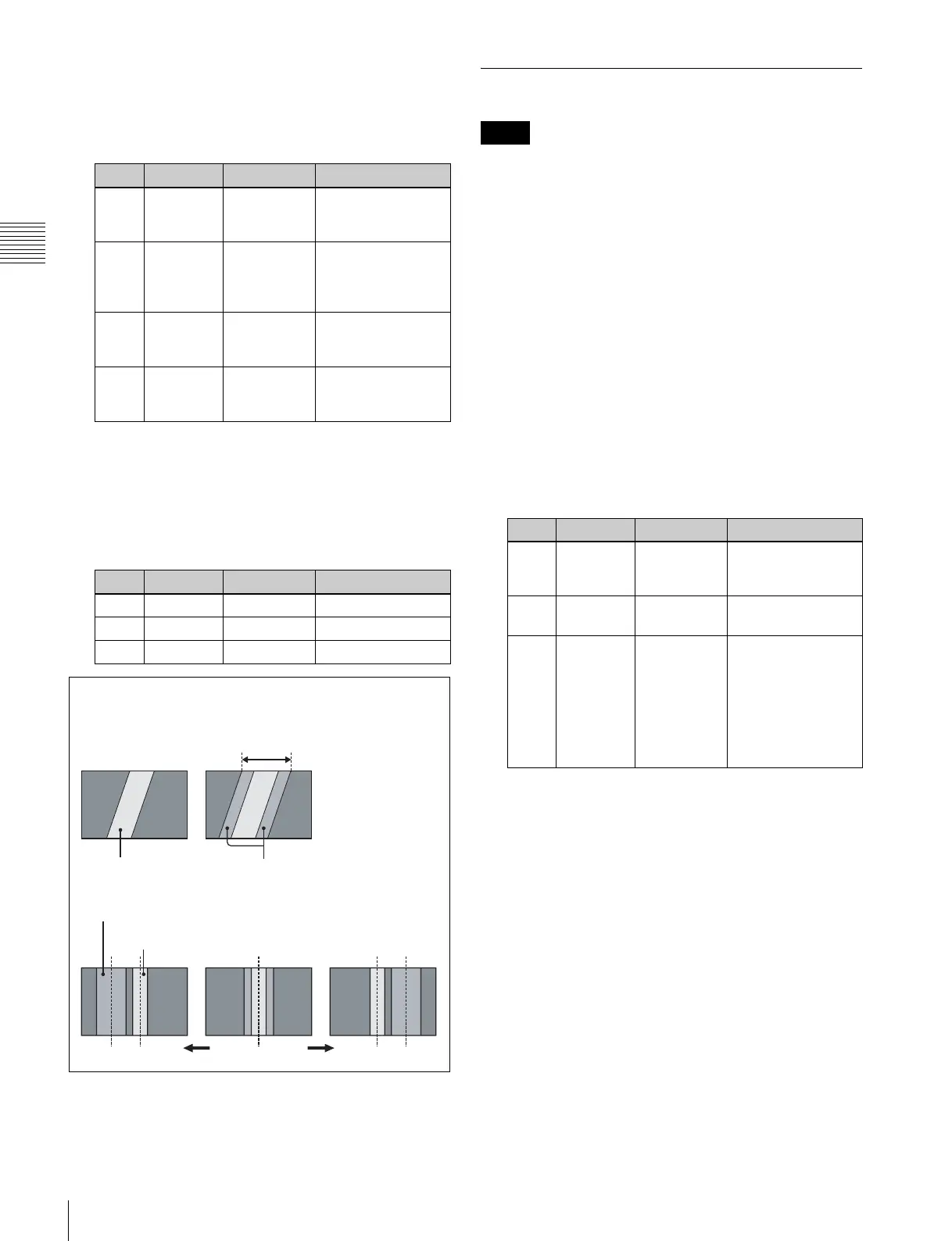

With no selection
made in the <Bar
Light Mode> group
Width
Bar Light
With a selection made in
the <Bar Light Mode>
group
Diffuse Light
Diffuse Light
Bar Light
Offset = 0
Notes
Knob Parameter Adjustment Setting values
1 Decay Degree to
which the
trail is left
0.00 to 100.00
a)
2 Interval Freeze
interval
1 to 255 (frames)
3 Live Proportion of
the interval
between two
successive
freeze
images for
which the
video is run
0.00 to 100.00
