Applying Special Effects (Lighting and Recursive Effects)
Chapter 11 DME Operations

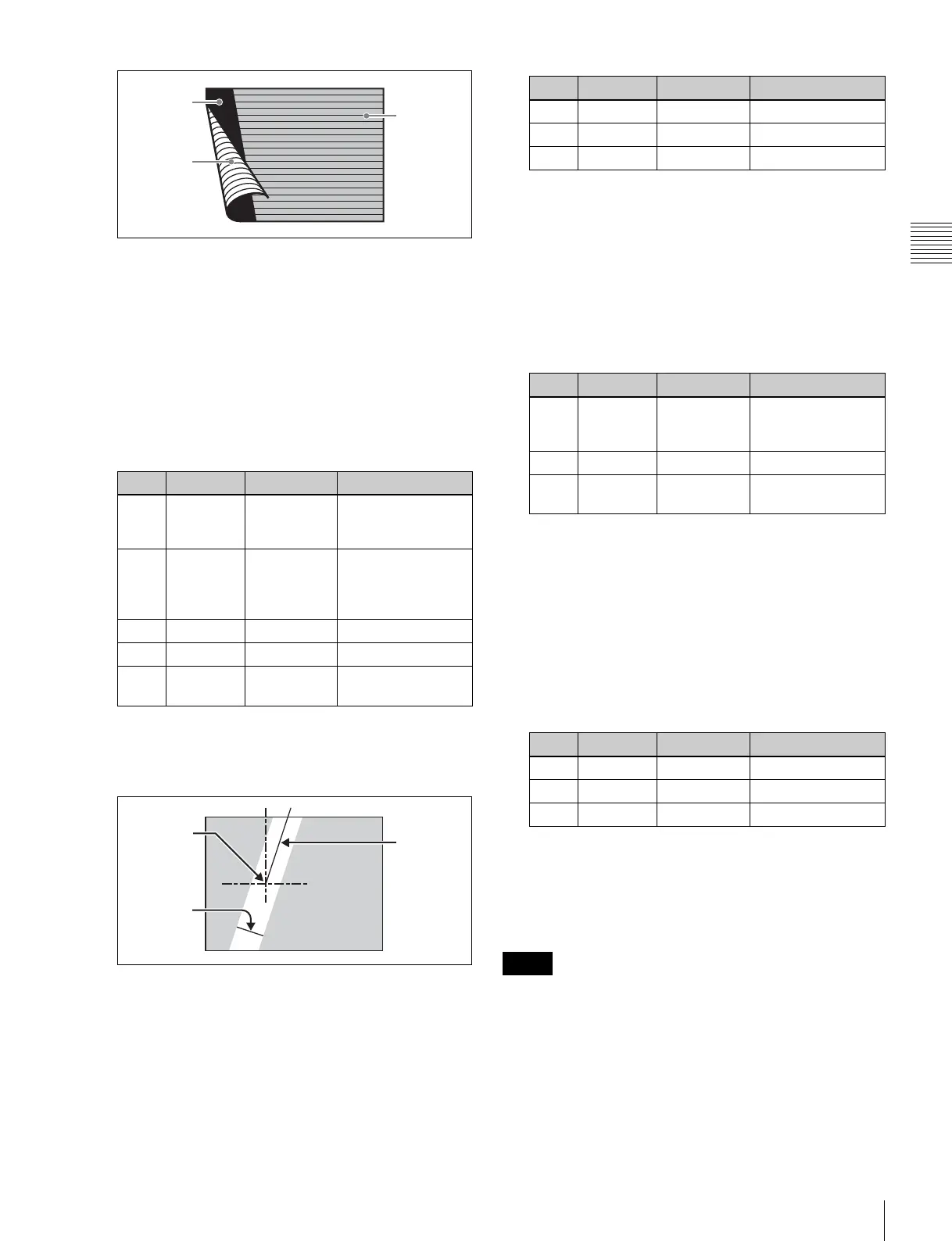

The three regions for which the light intensity can be set
Setting the bar shape of the highlight area
When you select [Bar] or [Preset] in step 3 of “Applying
the Lighting effect” (page 280), use the following
procedure to set the shape of the bar.
1 Turn [Light Modify] on.
2 Adjust the following parameters.
a) For SD 4:3
b) For SD 16:9
c) For HD 4:3
d) For HD 16:9
e) There are some nonlinear effects for which Angle cannot be used.
Bar shape parameters
Setting the color of the light in the
highlight area
1 Turn [Light Color] on.
2 Adjust the following parameters.
Setting the bar shape of the shade area
When you select [Preset] in step 3 of “Applying the
Lighting effect” (see page 280), use the following
procedure to set the bar shape of the shade area.
1 Turn [Shade Modify] on.
2 Adjust the following parameters.
a) For SD 4:3 and SD 16:9
b) For HD 4:3
c) For HD 16:9
Setting the color of the shade in the shade
area
1 Turn [Shade Color] on.
2 Adjust the following parameters.
Setting the bar mode of the highlight area
When you select [Bar] in step 3 of “Applying the Lighting
effect” (page 280), use the following procedure to set the
bar mode of the highlight area.
The bar mode of the highlight area is not supported on the
MVE-8000A.
1 Select the mode in the <Bar Light Mode> group.
Normal: Emphasizes the bar highlight area.
Specular: An effect like light striking a surface with
metallic reflections.
Knob Parameter Adjustment Setting values
1 X X-value of
bar center
point
–8.00 to +8.00
a) b)
–24.00 to +24.00
c)
–32.00 to +32.00
d)
2 Y Y-value of
bar center
point
–6.00 to +6.00
a)
–4.50 to +4.50
b)
–18.00 to
+18.00
c) d)
3Angle
e)
Angle of bar –8.00 to +8.00
4 Width Width of bar 0.00 to 100.00
5 Soft Softness of
edges
0.00 to 100.00
Highlight
area
Ambient
area
Shade
area
Center point
of bar
Bar width
Bar angle
Knob Parameter Adjustment Setting values
1 Luminance Luminance 0.00 to 100.00
2 Saturation Saturation 0.00 to 100.00
3 Hue Hue 359.99 to 0.00
Knob Parameter Adjustment Setting values
1X X-value of
bar center
point
–8.00 to +8.00
a)
–24.00 to +24.00
b)
–32.00 to +32.00
c)
4 Width Width of bar 0.00 to 100.00
5 Soft Softness of
edges
0.00 to 100.00
Knob Parameter Adjustment Setting values
1 Luminance Luminance 0.00 to 100.00
2 Saturation Saturation 0.00 to 100.00
3 Hue Hue 359.99 to 0.00
Notes
