Overall Control Panel Settings (Config Menu)
Chapter 19 Control Panel Setup (Panel)
• M/E-2 Key1, 2
• M/E-2 Key3, 4
• M/E-2 Key3, 4
• M/E-2 Key5, 6
• M/E-2 Key7, 8
• M/E-3 Key1, 2
• M/E-3 Key3, 4
• M/E-3 Key5, 6
• M/E-3 Key7, 8
• M/E-4 Key1, 2
• M/E-4 Key3, 4
• M/E-4 Key5, 6
• M/E-4 Key7, 8
•DSK1, 2
•DSK3, 4
•DSK5, 6
•DSK7, 8
•Key1, 2
1)
•Key3, 4
1)
•Key5, 6
1)
•Key7, 8
1)
• N/A (no assignment)
1) These keys are the keys of the M/E-1, M/E-2, M/E-3, M/E-4 or PGM/PST
bank depending on the settings of the M/E Assign menu of the interface
port for the extension section in which the independent key transition
control block is installed.
To assign a key to the main base
To assign a key to the independent key transition control
block (simple type), use the following procedure. Here the
example shown is the case in which keys 3 and 4 (“Key3,
4”) are assigned to the second row switcher bank of the
main base.
1 In the Panel >Config menu, press [Compact Key
Module Assign].
The Compact Key Module Assign menu appears.
The left side of the status area shows data for the main
base (physical layout and switcher bank names and
key assignment).
2 Press directly on the display on the left, to select the
control block for the assignment.
Here, press on the intersection of the “2nd Row”
column and “Module” row.
3 Select the key from the table on the right.
4 Press [Set].
To return the key assignment to the default
In the Compact Key Module Assign menu, press [Default].
This returns all key assignments for the main base to their
factory default state.
To assign a key to an extension
Press [Extension Port], to display the Extension Port
menu, then continue as for the main base.
To return the extension assignments to their original
values, press [Default].
Assigning Functions to Key Control
Block Buttons
Select one of the four key control blocks installed in the
main base and extension, then assign functions to the 30
buttons.
1 In the Panel >Config menu, press [Link/Program
Button].
The Link/Program Button menu appears.
2 Press [Key Control Module].
The Key Control Module menu appears.
3 Press one of [1st], [2nd], [3rd], and [4th], to select the
key control block.

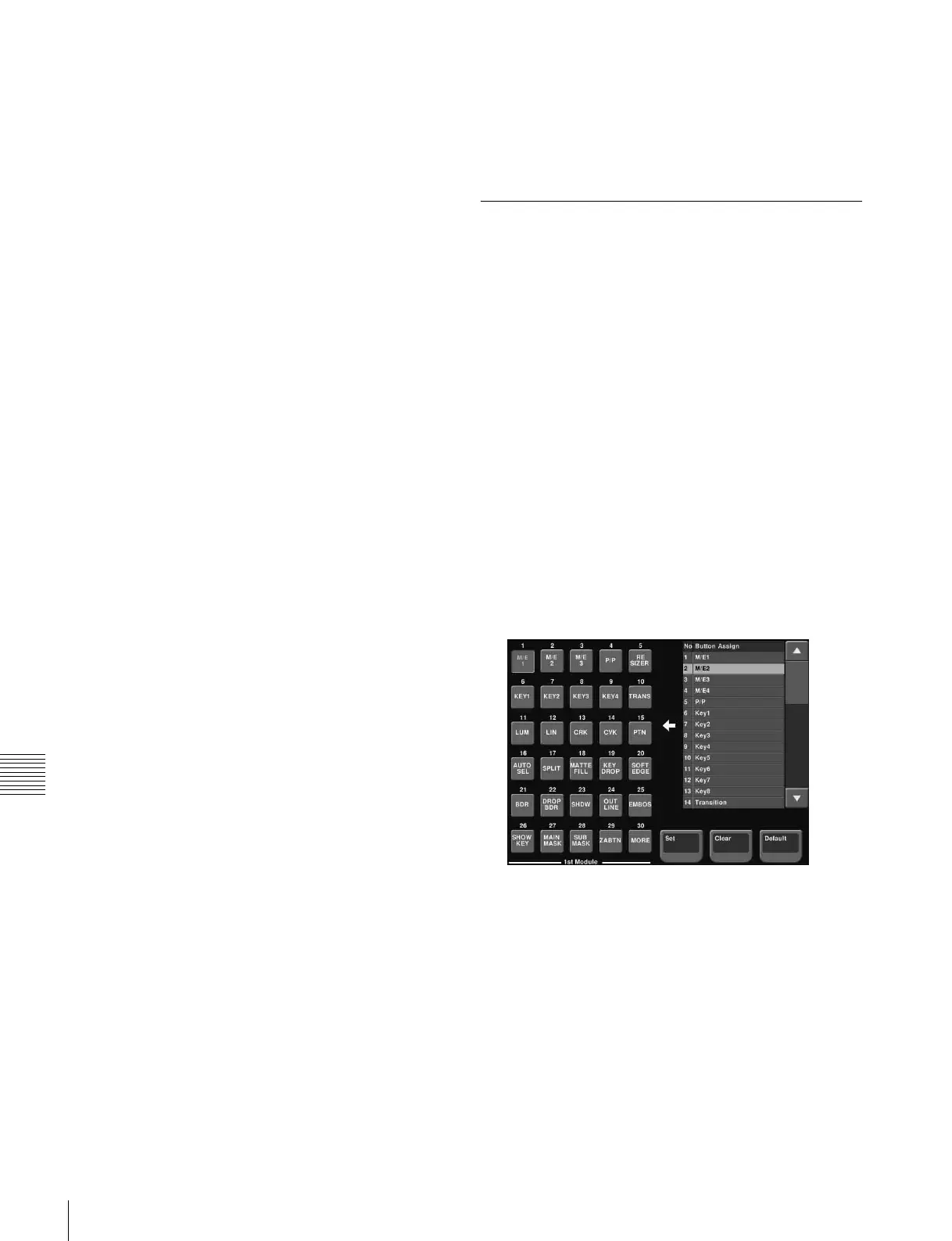

4 Press [Button Assign].
The assignment status of the control block you
selected in step 3 above appears.
5 Press the button to which you want to assign a
function, displaying it in reverse video.
6 Using any of the following methods, select the
function you want to assign from the Button Assign
list.
• Press directly on the list.
• Press the arrow keys to scroll the reverse video
cursor.
• Turn the knob.
