The Global Effect >Ch1 - Ch4 menu appears.
Combiner Settings

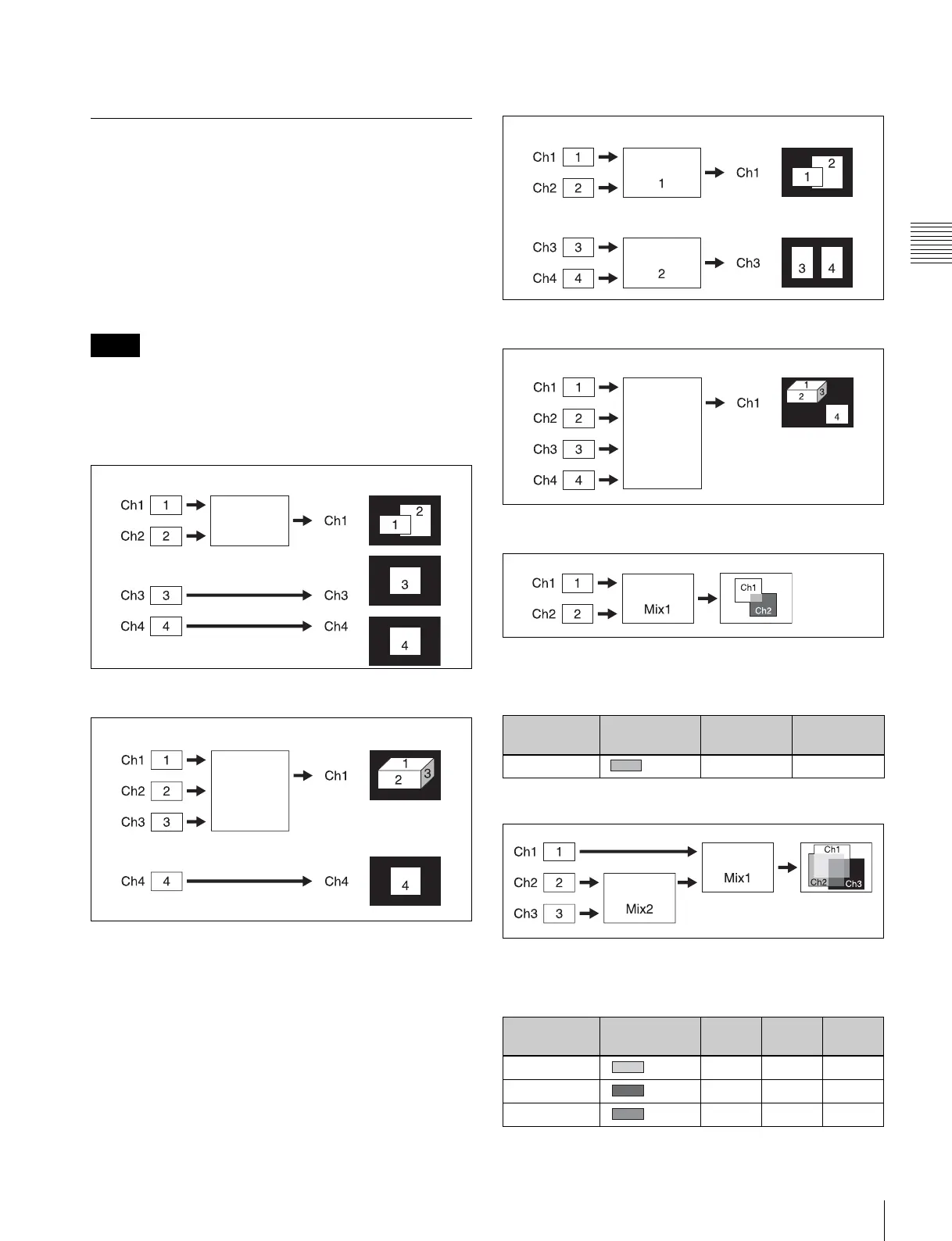

When multiple channels are selected on one keyer or for
one transition, the Combiner automatically combines the
selected images. Up to four channels can be combined.
You can also control the way in which the combination is
carried out, as a mix or an overlap with priority set
automatically. For a mix, you can control the relative
amounts of each channel.
Images can also be crossed in three dimensions.
Three-dimensional image crossing is not supported on the
MVE-8000A.
Combination of channel 1 (Ch1) and channel 2
(Ch2)
Combination of Ch1, Ch2, and Ch3
Combination of Ch1 and Ch2 / combination of
Ch3 and Ch4
Combination of Ch1, Ch2, Ch3, and Ch4
Mixing Ch1 and Ch2
If the Mix1 setting is 70, the proportion of the channels in
the mixed portion in the previous illustration is as shown
in the following table.
Mixing Ch1, Ch2, and Ch3
If the Mix1 setting is 70 and the Mix2 setting is 40, the
proportions of the channels in the mixed portions in the
previous illustration are as shown in the following table.
Notes
Combiner
Combiner
Combination Indication in
figure
Ch1 Ch2
Ch1 and Ch2 30% 70%
Combination Indication in
figure
Ch1 Ch2 Ch3
Ch1 and Ch2 30% 70% –
Ch2 and Ch3 – 60% 40%
Ch1 and Ch3 30% – 70%
