Signal Selection
Chapter 3 Signal Selection and Transitions
Signal Selection
You carry out signal selection with the cross-point buttons
in the cross-point control block of the M/E bank or PGM/
PST bank, and the buttons in the auxiliary bus control
block.

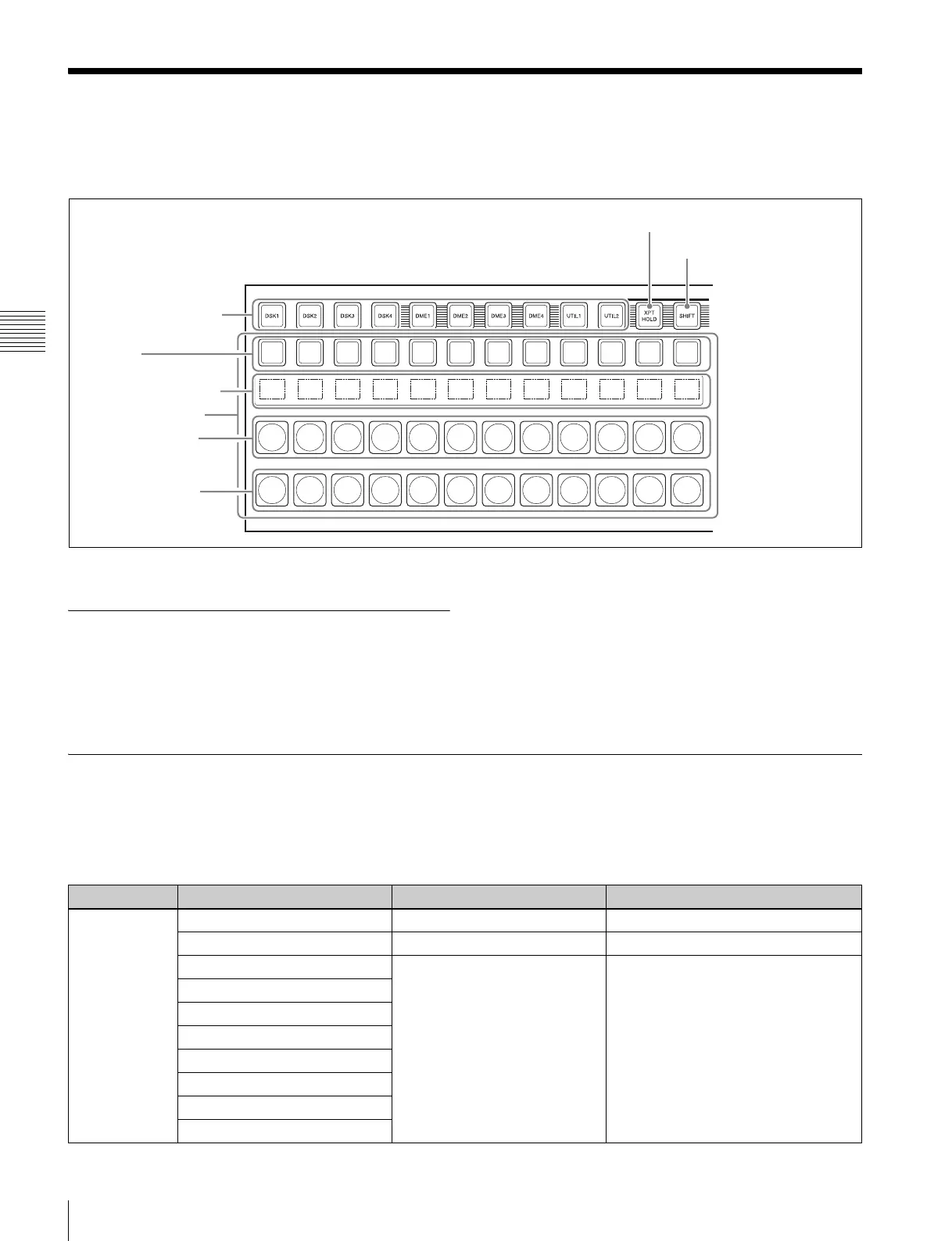

Cross-point control block
Basics of Signal Selection
Each of the M/E bank and auxiliary bus control block has
cross-point buttons.
These buttons are identified by numbers common to all of
the banks and block, and a signal is assigned to each
number.
The basis of signal selection is to select, in a cross-point
button row, the cross-point button to which is assigned the
desired signal.
Bus Selection
The key row is shared by multiple buses.
To assign a bus to the cross-point buttons in the auxiliary
bus control block, press one of the AUX delegation buttons
to select the bus.
The following table illustrates the correspondence
between buses and cross-point button rows, and the
delegation operations.
Source name displays
Key row
XPT HOLD button
Key delegation buttons
Background A row
Background B row
SHIFT button
Cross-point buttons
Bank Bus name Cross-point button row Delegation operation
M/E-1 Background A bus Background A row −
Background B bus Background B row −
Key 1 bus Key row Turn on the button to which the
corresponding key is assigned.
Key 2 bus
Key 3 bus
Key 4 bus
Key 5 bus
a)
Key 6 bus
a)
Key 7 bus
a)
Key 8 bus
a)
