198
Color Corrector Functions
Chapter 9 Color Corrector
There are three modes for luminance processing, as
follows.
Tint mode: adding a specified color to the original video
signal.
Color Modify mode: adjusting the original video signal.
Y Modify mode: adjusting the output levels of the input
luminance signal.
• White balance adjustment: setting the output level
for an input luminance signal at the 100% level.
• Black balance adjustment: setting the output level
for an input luminance signal at the 0% level.
• Y lift correction: adjusting the curvature of the
curve.
• Y dark correction: adjusting the position of the
maximum point of the curve.
It is also possible to mask part of the region to be corrected.
Applying luminance processing
1
In the CCR menu, press VF1 ‘CCR1’ and HF5
‘Luminance Process.’
The Luminance Process menu appears.
2
In the <Luminance Process> group, press [Luminance
Process], turning it on.
3
In the <Mode> group, specify the adjustment mode.
Tint: add a specified color to the original video signal.
Color Modify: adjust the original video signal.
Y Modify: adjust the output levels of the input
luminance signal.
When tint mode or color modify mode is selected, skip
to step 4.
When Y modify mode is selected, adjust the following
parameters.
4
In the <Bound> group, make the settings for the three
regions (Dark, Middle, and Bright).
[Level] parameters: set the boundaries of the three
regions.
[Soft] parameters: set the degree of boundary
softness of the three regions.

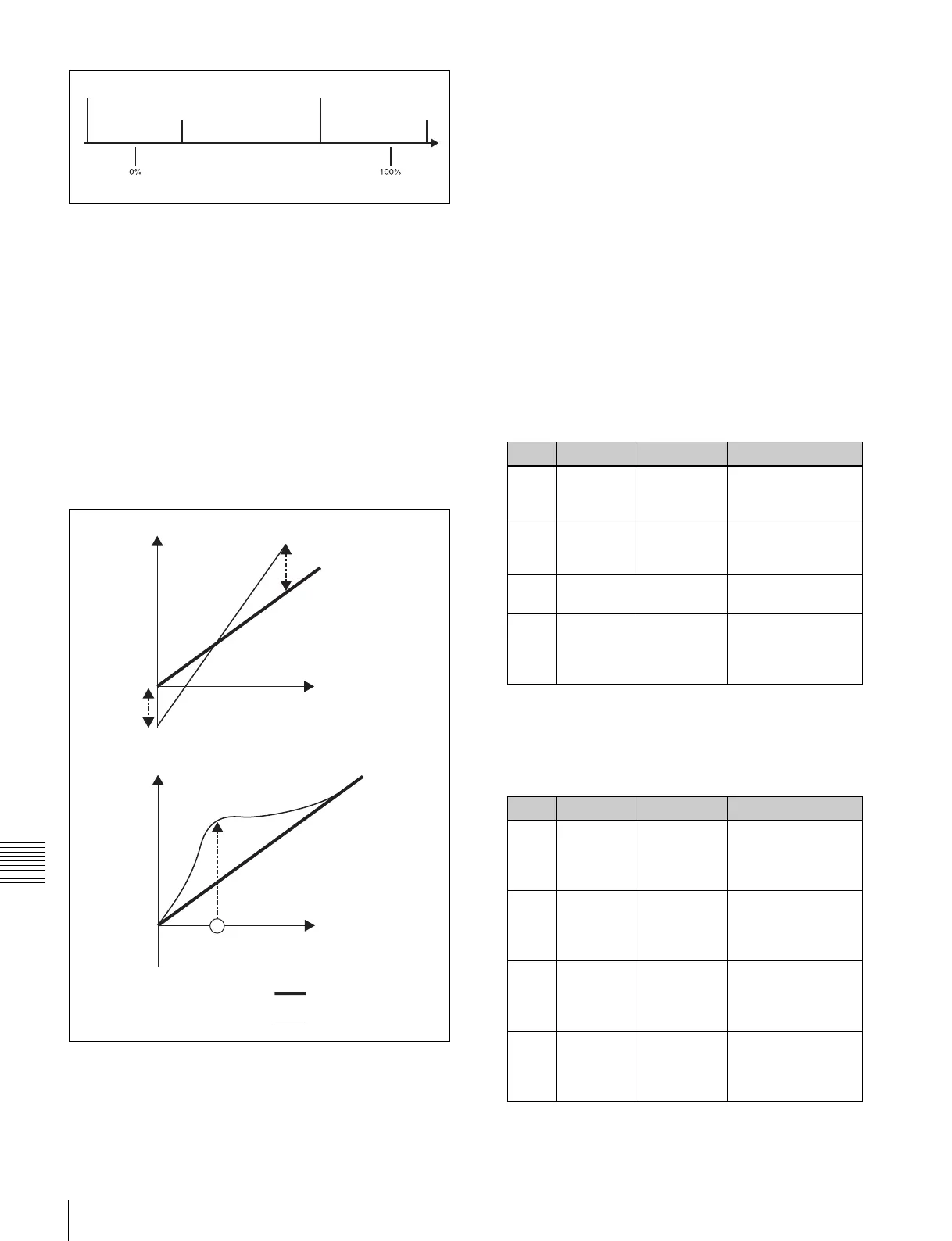

Under Dark point
Middle/Dark point
Bright/Middle point
Over Bright point
Dark Middle Bright
Input signal luminance level
Output signal luminance level
Black balance adjustment
White balance
adjustment
Input signal
luminance level
Unadjusted signal
Input signal
luminance level
Output signal luminance level
Y Dark
Adjusted signal
Y Lift
Knob Parameter Adjustment Setting values
1White White
balance
adjustment
0.00 to 200.00
2Black Black
balance
adjustment
–100.00 to +100.00
3 Y Lift Curvature of
curve
–100.00 to +100.00
4 Y Dark Position of
maximum
point of
curve
–7.31 to +109.59
Knob Parameter Adjustment Setting values
1Over B
Level
Luminance
level of the
Over Bright
point
50.00 to 150.00
2Mid B
Level
Luminance
level of the
Bright/Middle
point
10.00 to 120.00
3 Dark Mid
Level
Luminance
level of the
Middle/Dark
point
–20.00 to +90.00
4 Under D
Level
Luminance
level of the
Under Dark
point
–50.00 to +50.00
