204
Side Flags
Chapter 10 Special Functions
• When using the DME through SDI interface with [Auto
Crop] being off, side flags are not added to the new
image during DME wipe.
• For signals with the following DME wipe pattern
selected on the DME external video bus (gray part
shown in the pattern illustration), side flags are not
applied when auto side flags are set to Off.
- Two-channel page turn
- Two-channel page roll
- Two-channel frame in-out
- Two-channel brick
- Three-channel brick

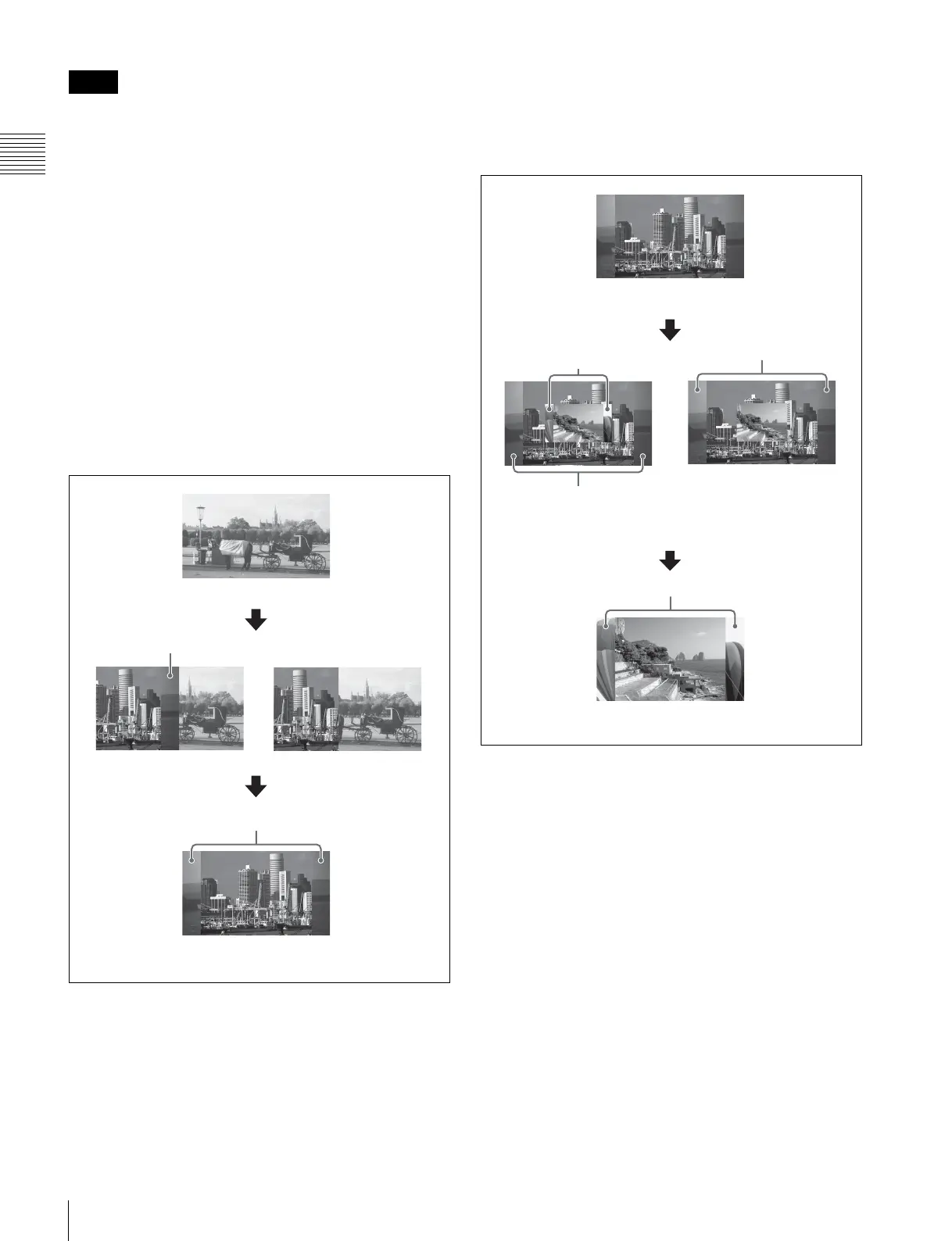

The following illustration shows the action in a DME
wipe.
DME wipe from a 4:3 image to a 16:9 image
Wipe action using slide (No. 1001)
DME wipe from a 4:3 image to another 4:3
image (when side flags are on for both
images)
Wipe action using squeeze (No. 1031)
a) When using the DME through SDI interface, side flags are not added
during a DME wipe.
Notes
Auto crop on
4:3 image
(Side flags on)
Auto crop off
Side flag area
16:9 image
Side flag areas
Auto crop on
4:3 image
(Side flags on)
Side flag areas
Autocrop off
Side flag areas
a)
4:3 image
(Side flags on)
Side flag areas
Side flag areas
