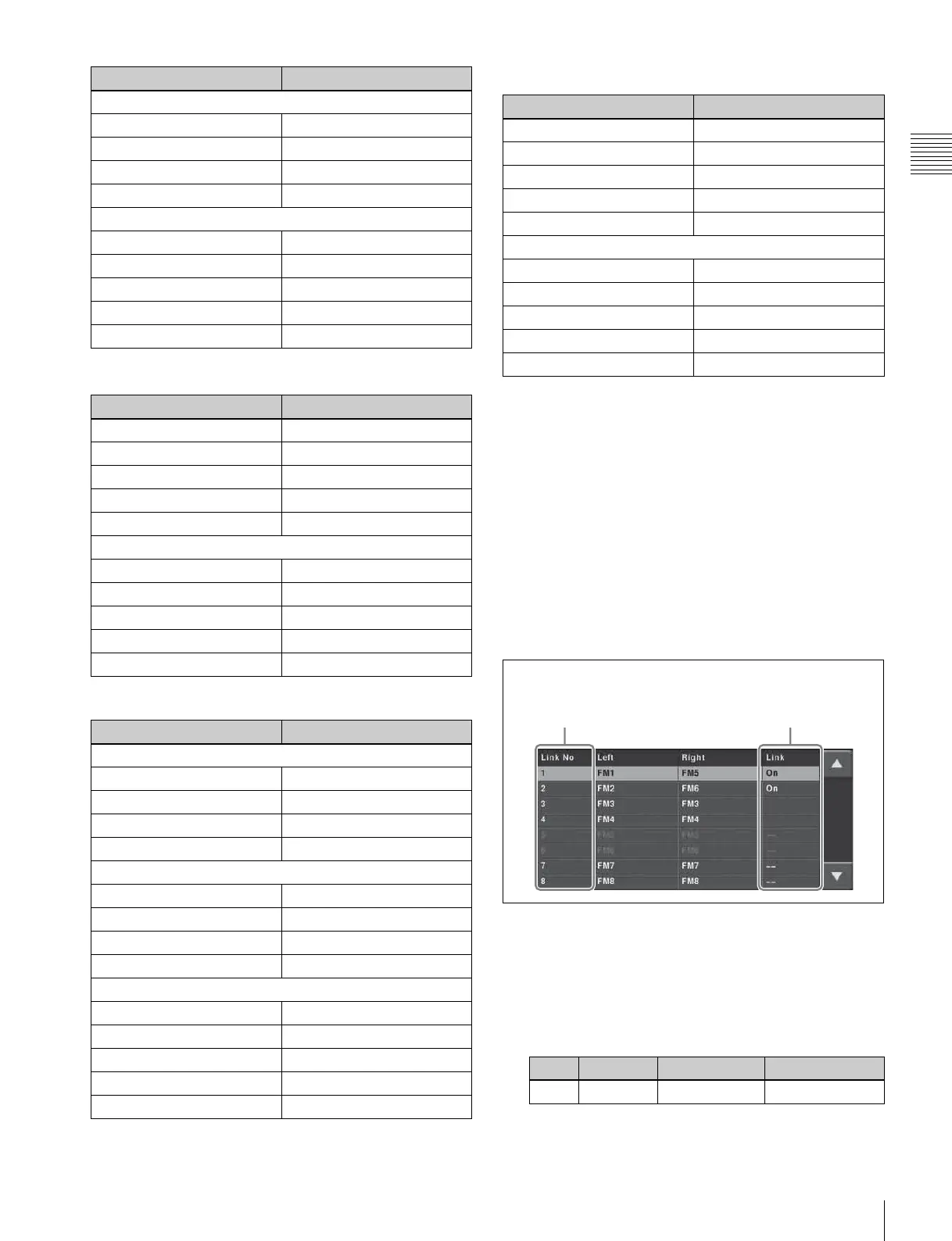

3D Support
Chapter 10 Special Functions
If [1-21 Mode] is selected on MVS-8000X
If [1-2 Mode] is selected on MVS-7000X
If [1-21 Mode] is selected on MVS-7000X
Setting frame memory outputs for 3D
mode
Select whether to use frame memory outputs 1 to 8 in
combinations of left and right signals for 3D mode. The
left and right combinations are fixed, as 1 and 5, 2 and 6, 3
and 7, and 4 and 8.
1 Display the Engineering Setup >Switcher >Config
>3D Config menu.
2 Press [FM Output Link].
The FM Output Link menu appears.
3 Using any of the following methods, select the link
number.
• Press directly on the list.
• Press the arrow keys to scroll the reverse video
cursor.
• Turn the knobs.
Slot 14
OUTPUTS 25 OUTPUTS 26
OUTPUTS 27 OUTPUTS 28
::
OUTPUTS 43 OUTPUTS 44
Slot 15
MSD1 MSD2
OUTPUTS 21 OUTPUTS 22
OUTPUTS 23 OUTPUTS 24
OUTPUTS 45 OUTPUTS 46
OUTPUTS 47 OUTPUTS 48
Right signals Left signals
Slot 13 Slot 14
OUTPUTS 1 OUTPUTS 25
OUTPUTS 2 OUTPUTS 26
::
OUTPUTS 20 OUTPUTS 44
Slot 15
MSD1 MSD2
OUTPUTS 21 OUTPUTS 22
OUTPUTS 23 OUTPUTS 24
OUTPUTS 45 OUTPUTS 46
OUTPUTS 47 OUTPUTS 48
Right signals Left signals
Slot 9
OUTPUTS 1 OUTPUTS 2
OUTPUTS 3 OUTPUTS 4
::
OUTPUTS 19 OUTPUTS 20
Slot 10
OUTPUTS 25 OUTPUTS 26
OUTPUTS 27 OUTPUTS 28
::
OUTPUTS 43 OUTPUTS 44
Slot 11
MSD1 MSD2
OUTPUTS 21 OUTPUTS 22
OUTPUTS 23 OUTPUTS 24
OUTPUTS 45 OUTPUTS 46
OUTPUTS 47 OUTPUTS 48
Right signals Left signals
Right signals Left signals
Slot 9 Slot 10
OUTPUTS 1 OUTPUTS 25
OUTPUTS 2 OUTPUTS 26
::
OUTPUTS 20 OUTPUTS 44
Slot 11
MSD1 MSD2
OUTPUTS 21 OUTPUTS 22
OUTPUTS 23 OUTPUTS 24
OUTPUTS 45 OUTPUTS 46
OUTPUTS 47 OUTPUTS 48
Knob Parameter Adjustment Setting values
1 Link No Link number 1 to 8
Link number
Using two signals in left-right
combination
Using one signal shared
between left and right
