223
DME
Chapter 11 DME Operations

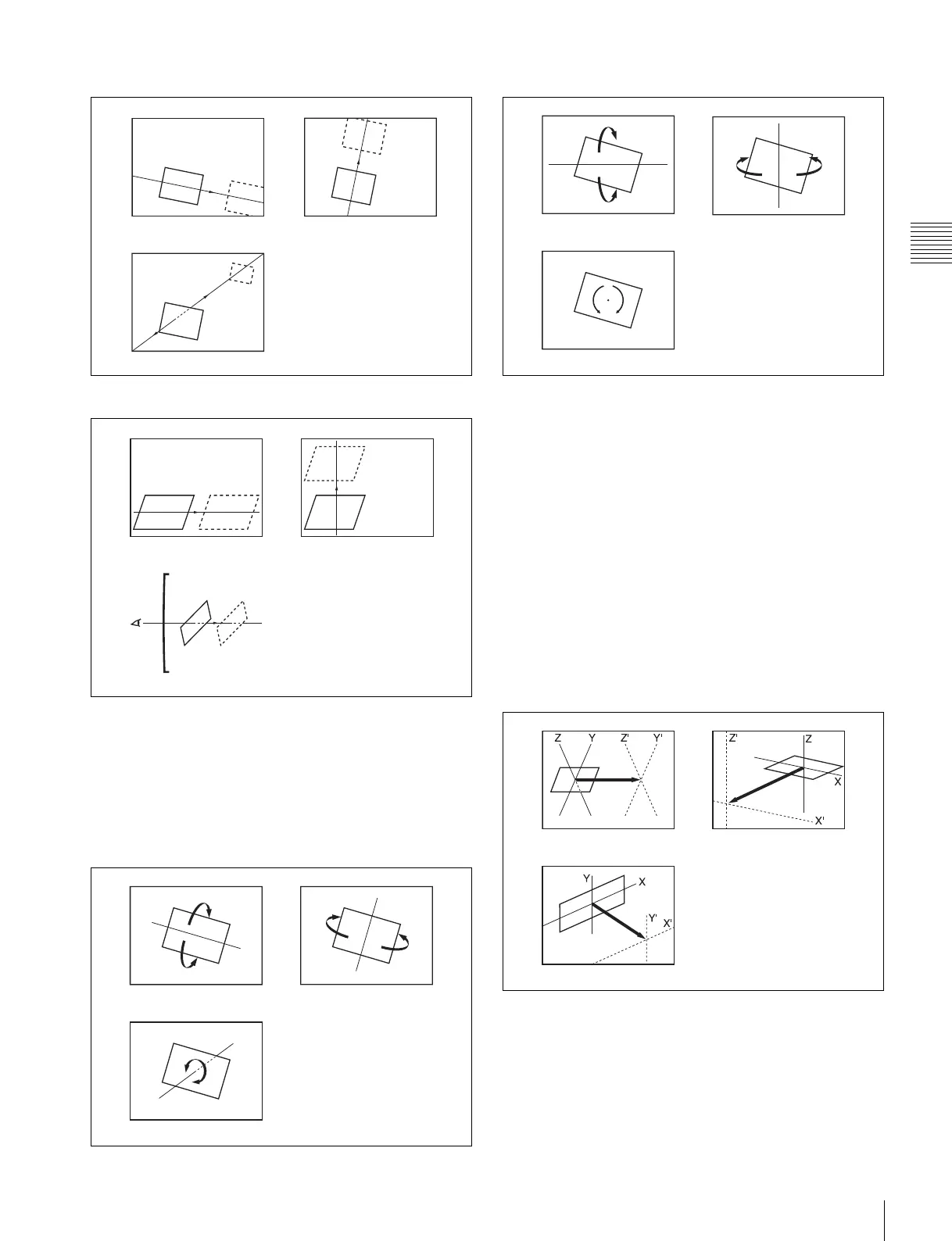

Image movement in the source coordinate space
Image movement in the target coordinate space
Rotation
Rotates the image on the x-axis, y-axis, or z-axis. The type
of rotation differs depending on whether you are
manipulating the image in the source coordinate space or
the target coordinate space.
Image rotation in the source coordinate space
Image rotation in the target coordinate space
Spin
When rotating the image in Rotation mode, it may not
always be possible to achieve the kind of rotation around
an axis that you want. Combining Rotation mode with Spin
mode creates an effect that rotates the image around a
specified axis. The type of rotation differs depending on
whether you are manipulating the image in the source
coordinate space or the target coordinate space. (The way
the image rotates around an axis is the same as in Rotation
mode.)
Axis Location
Moves an axis of rotation in the source coordinate space.
Axis movement
Location Size
Changes the size of the whole image.
• Because shrinking and magnification of the image in the
source coordinate space is done in three-dimensional
space, magnifying the image emphasizes the sense of
perspective.
Movement on the x-axis Movement on the y-axis
Movement on the z-axis
Movement on the x-axis Movement on the y-axis
Movement on the z-axis
Rotation around the y-axisRotation around the x-axis
Rotation around the z-axis
Rotation around the y-axisRotation around the x-axis
Rotation around the z-axis
Movement on the x-axis
Movement on the y-axis
Movement on the z-axis
