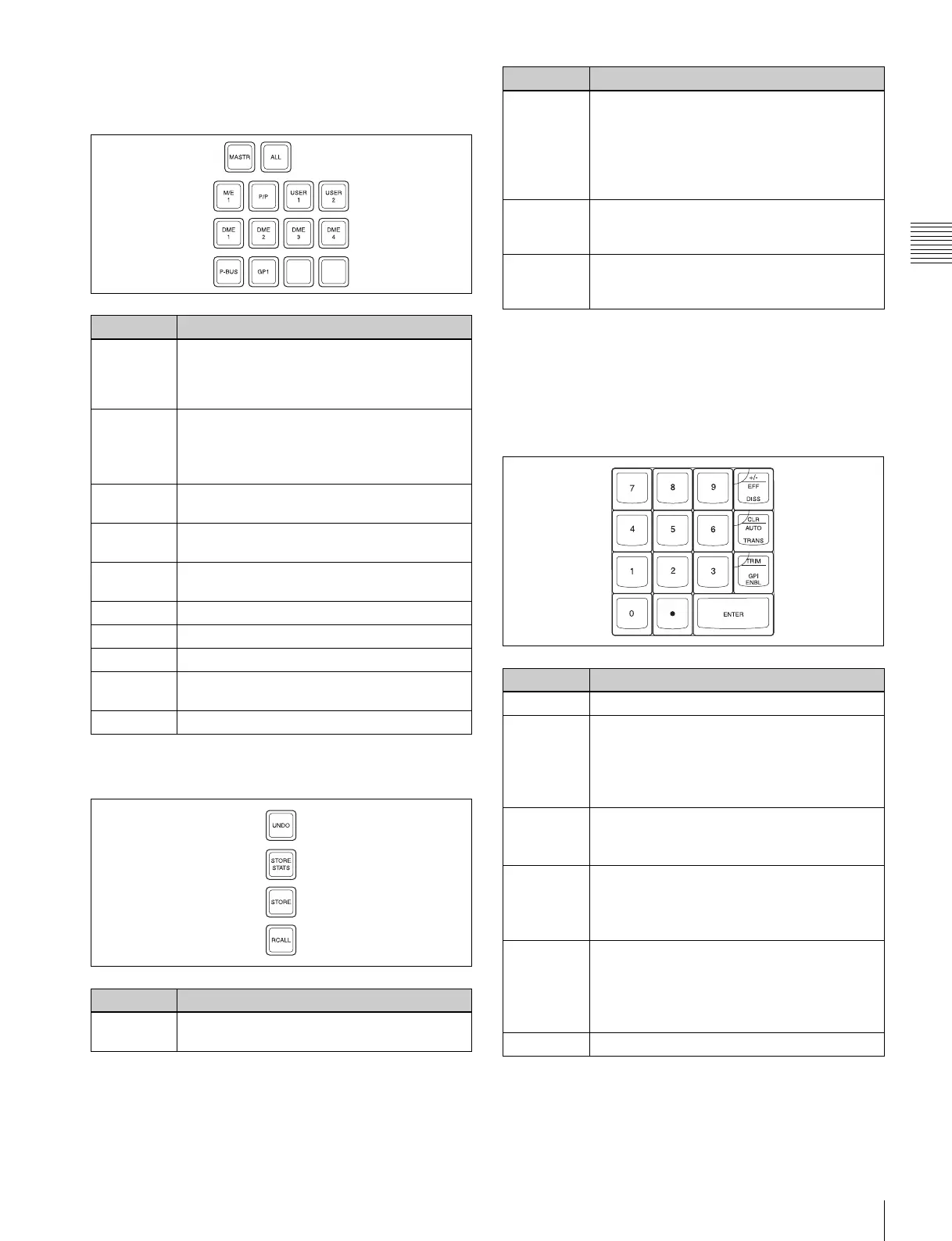

Names and Functions of Parts of the Control Panel
Chapter 2 Menus and Control Panel
With the exception of the [MASTR] and [ALL] buttons,
you can change the region assignment to the buttons as
desired in the Setup menu.
c Function selection buttons
The following buttons are used to switch the function.
a) [STORE] button or [RCALL] button flashes amber when one or more of
the regions assigned to the Region selection buttons are not selected by the
Region Select menu.
d Numeric keypad
In addition to the buttons for numeric input, this includes
buttons for adding attributes to snapshots.
e Display
This shows the selected region name, register number and
entered numeric values.
Name Description
MASTR Press this, turning it on, to save region
information in a master snapshot register or
master timeline register, or to recall such
region information.
ALL • Select all regions.
• When any region is already selected,
pressing this button makes all regions
unselected
M/E 1 and
P/P
Select the corresponding regions, M/E-1 and
PGM/PST.
USER 1 to
USER 8
Select the corresponding User regions.
DME1 to
DME8
Select a DME channel.
P-Bus Select the P-Bus region.
GPI Select the GPI region.
RTR Select the router region.
DEV1 to
DEV12
Select the Device 1 to Device 12 regions
respectively.
MCRO Select the macro region.
Name Description
UNDO After recalling a register, press this button to
return to the state before recalling the register.
STORE
STATS
(store
status)
• This lights amber when data is stored in a
register.
• After saving data to a register, hold down
this button and press the [UNDO] button to
return the register to the state before the
data was saved.
STORE
a)
Press this button to switch to the mode for
saving a snapshot, effect, shotbox or macro in
a register.
RCALL
(recall)
a)
Press this button to switch to the mode for
recalling a snapshot, effect, shotbox or macro
from a register.
Name Description
0 to 9 Used to input numeric digits.
. (period) • Enters the decimal point.
• When the [TC] button is lit, enters “00.”
• When the [EFF] button, [SNAPSHOT]
button or [SHOTBOX] button is lit, this is
used to find an empty register.
+/–/EFF
DISS (effect
dissolve)
• Invert the sign, negative or positive.
• When the [SNAPSHOT] button is lit, applies
the effect dissolve attribute to a snapshot.
CLR/AUTO
TRANS
(clear/auto
transition)
• Clear an input value, returning to the
previous state.
• When the [SNAPSHOT] button is lit, applies
the auto transition attribute to a snapshot.
TRIM/GPI
ENBL
(enable)
• After entering a difference value to be
added to an existing setting, press this
button to confirm the change.
• When the [SNAPSHOT] button is lit, adds a
GPI output attribute to the snapshot.
ENTER Confirm an entered value.
Name Description
