Names and Functions of Parts of the Control Panel
Chapter 2 Menus and Control Panel

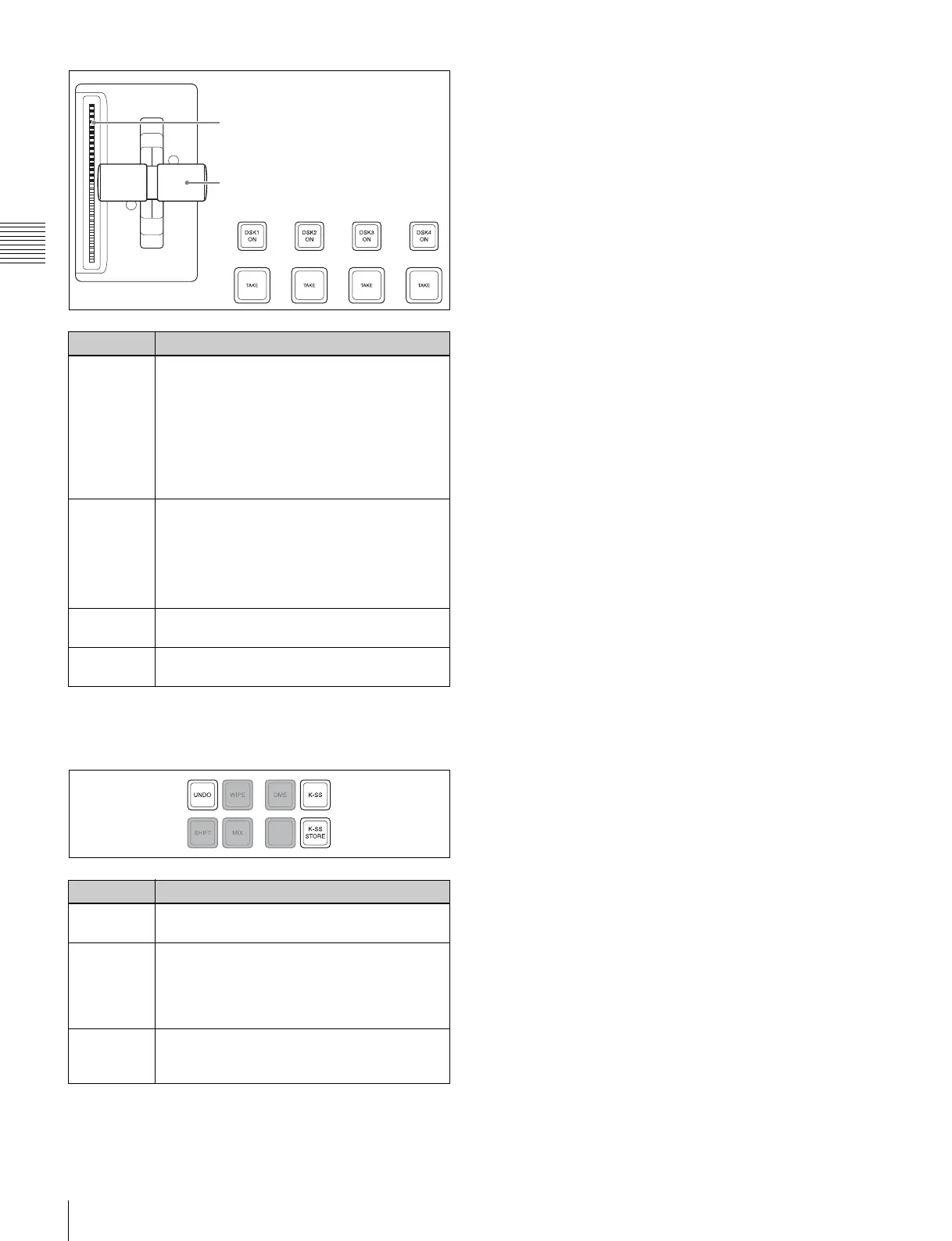

d Key snapshot setting buttons
Pressing the following buttons carries out key snapshot
operations.
e Key source name display/key snapshot buttons
These display the selected source name for each
corresponding keyer. In snapshot mode, they correspond
to registers 1 to 4 of the selected keyer, and pressing the
button saves or recalls a key snapshot.
Name Description
DSK1
(downstrea
m key 1)
ON to DSK4
ON buttons
• Press these to instantaneously cut the
downstream keys 1, 2, 3, and 4 in or, when
the downstream keys are already inserted,
cut them out.
• When the key corresponding to the button
appears in the final program output, the
button lights red, and otherwise lights
amber.
TAKE
buttons
• These correspond to downstream keys 1, 2,
3, and 4 from left to right; press to execute
an auto transition. The transition starts
immediately, and the button lights amber.
• When the transition completes, the button
goes off.
Fader lever Move this vertically to carry out a manual
downstream key transition.
Tra ns it ion
indicator
This comprises multiple LEDs, which show
the progress of the downstream key transition.
Name Description
K-SS (key
snapshot)
This enables key snapshot mode.
K-SS
STORE
(key
snapshot
store)
To save a key snapshot, hold down this
button, and press the key source name
display/key snapshot button for the register
you want to save.
UNDO (key
snapshot
recall undo)
This undoes the last key snapshot recall.
Transition indicator
Fader lever
