Sony MVS-7000X - Page 530

530
Signal Input Settings (Input Menu)
Chapter 20 Switcher Setup (Switcher)
Making detailed settings for up-conversion
1 In the Switcher >Input >FC Adjust menu, select the
input to which the setting applies.
2 In the <Conversion> group, select one of the
following.
Frame: Conversion in frame units
Field: Conversion in field units
Adaptive: Automatically switching between the
above two modes
When Adaptive is selected, adjust the following
parameter.
a) 1: Still priority mode, 2: Standard mode, 3: Motion priority mode
3 In the <Aspect> group, select one of the following.
Edge Crop: Add black bars on the left and right sides
of a 4:3 aspect ratio image to convert it to a 16:9
image.
Letter Box: Crop the top and bottom of a 4:3 aspect
ratio image to convert it to a 16:9 image.
Squeeze: Stretch a 4:3 image horizontally to covert it
to a 16:9 image.

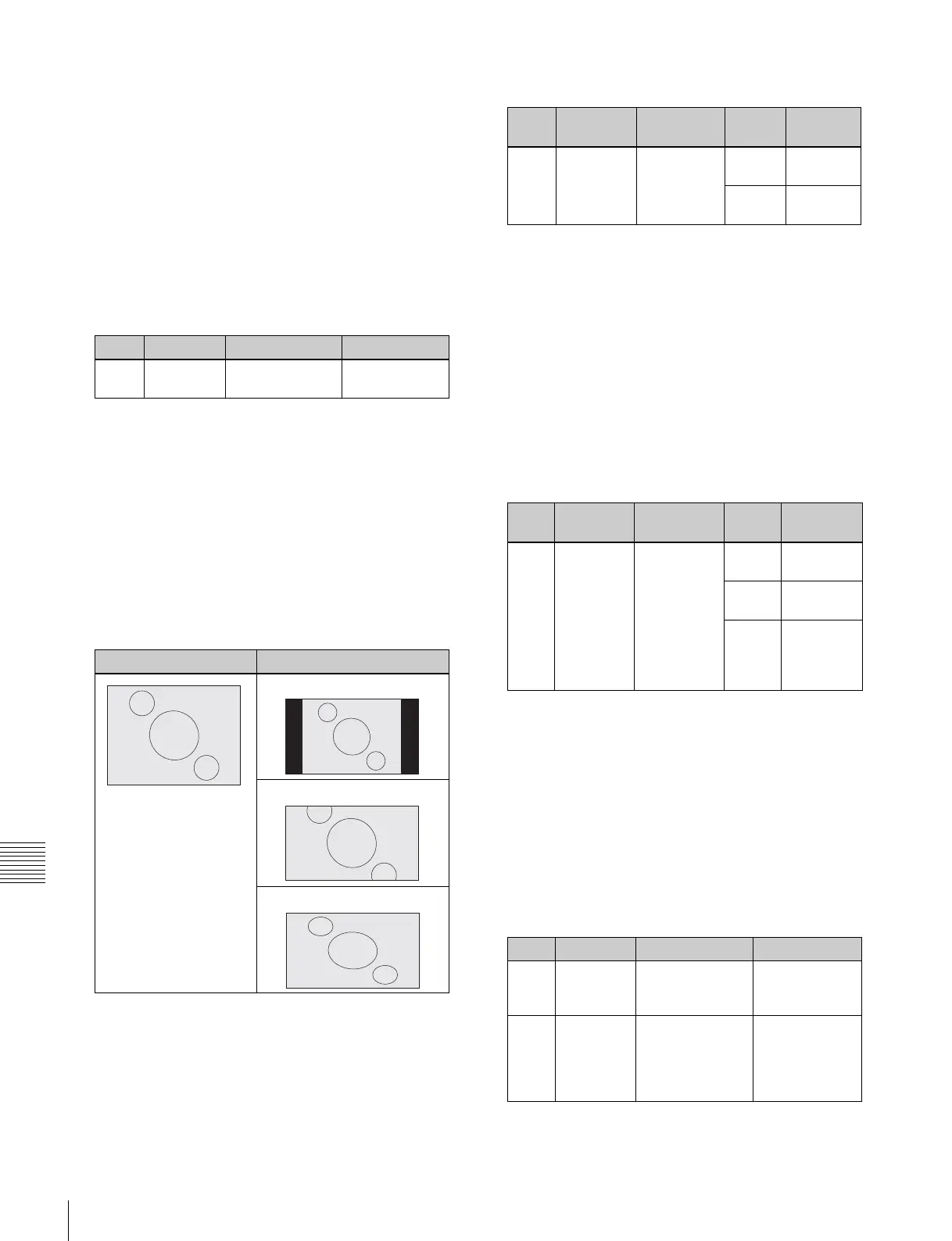

(For details of the image transformations, see the
following figure.)
Setting the image position in edge crop
up-conversion mode
1 In the <Edge Crop Position> group of the Switcher
>Input >FC Adjust menu, press [Position], turning it
on.
2 Adjust the following parameter.
a) For down-conversion, the value is from –30 to +30 inclusive.
To return the edge crop image to the center
In the <Edge Crop Position> group, press [Center].
Setting the image position in letter box up-
conversion mode
1 In the <Letter Box Position> group of the Switcher
>Input >FC Adjust menu, press [Position], turning it
on.
2 Adjust the following parameter.
To return the letterbox image to the center
In the <Letter Box Position> group, press [Center].
Making enhancer settings
1 In the Switcher >Input >FC Adjust menu, press
[Enhancer], turning it on.
2 Set the following parameters.
Knob Parameter Adjustment Setting values
2 Motion
Select
Motion detection
sensitivity
1 to 3
a)
Original image (4:3) Up-converted image (16:9)
Edge Crop
Letter Box
Squeeze
Knob Parameter Adjustment Setting
format
Setting
values
2EC
Position
position
a)
1080 –120 to
+120
720 –80 to
+80
Knob Parameter Adjustment Setting
format
Setting
values
2 LB Position Image
position
1080i/
59.94
–31 to +32
1080i/
50
–36 to + 36
720P/
59.94,
720P/
50
–30 to +30
Parameter group [1/2]
Knob Parameter Adjustment Setting values
2 Detail Gain Adjust the edge
enhancement
sharpness
0 to 127
3 Limiter Adjust the
maximum signal
level to be added
to the original
signal
0 to 63
