Signal Selection
Chapter 3 Signal Selection and Transitions
For details of Setup menu operations, see “Creating
Cross-Point Assign Tables” in Chapter 19 (Volume 2).
Cross-point button control block button
numbers
On the M/E and PGM/PST banks, each cross-point button
has two button numbers, and you use the [SHIFT] button
to switch between these numbers.
The button numbers are as follows.

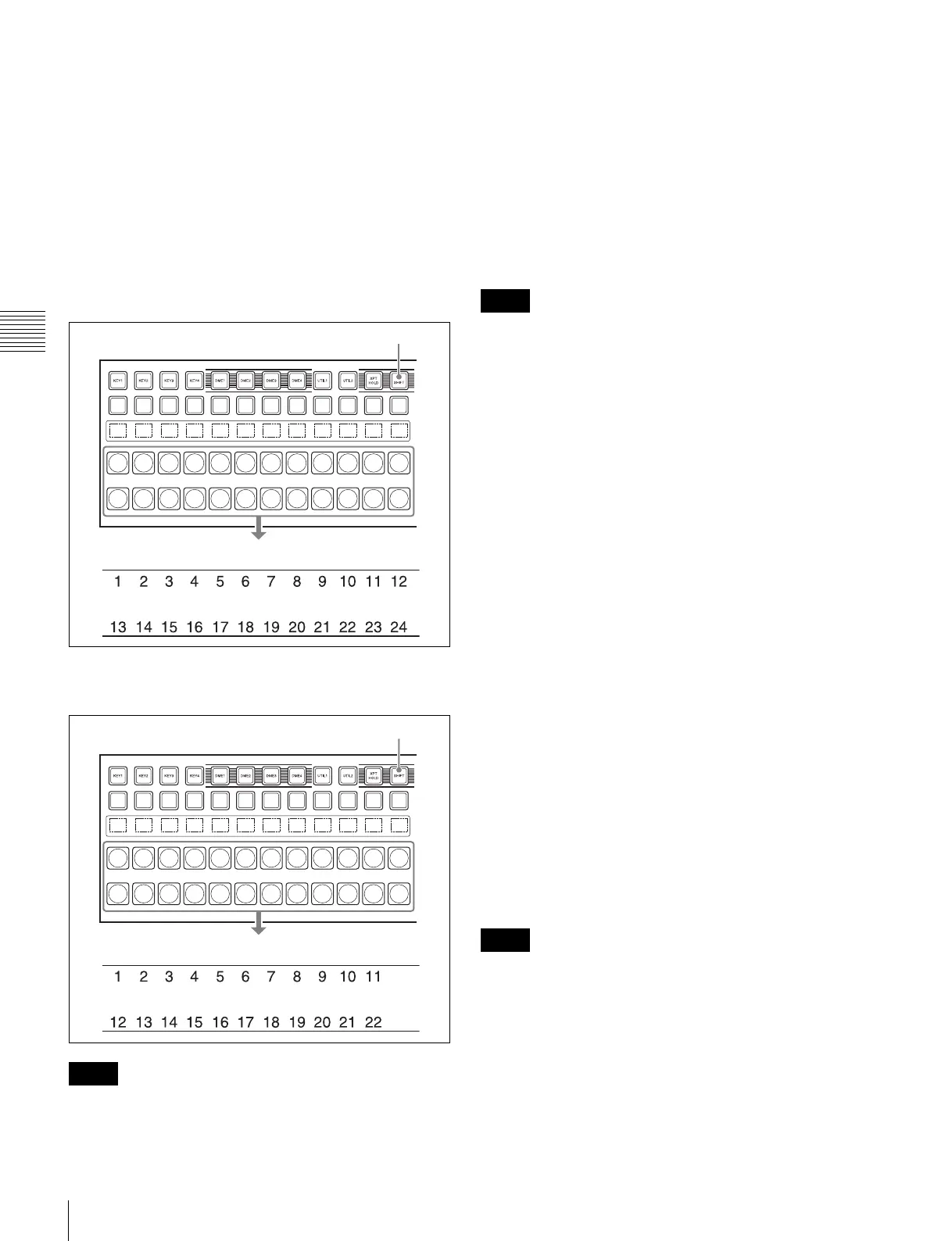

Button numbers when all 12 buttons are used as cross-
point buttons
Button numbers when the rightmost buttons (12th
buttons) are used as SHIFT buttons
You can use the rightmost button (number 12) as a [SIDE
FLAG] button. In this case, the shift button moves one to
the left, to number 11, and the button numbers are offset by
one.
For details of the [SIDE FLAG] button, see “Assigning a
Cross-Point Button to Enable/Disable Side Flags” in
Chapter 19 (Volume 2).
Inhibiting cross-point button operations
For each cross-point button, you can temporarily inhibit
operations.
This setting is cleared when you reset the control panel.
Assigning a button to the function of disabling
cross-point button operation
You can assign the button to be used for the operation to a
user preference button, in setup. The [Inhibit All Clear]
function is also assigned to this button.
For details, see “Assigning Functions to User Preference
Buttons” in Chapter 19 (Volume 2).
Buses for which operations can be inhibited
This setting applies to the auxiliary bus control block and
the cross-point buttons in each switcher bank.
For example, if you make the setting for one cross-point
button in a switcher bank, this inhibits operation of all
cross-point buttons with the same number in the following
buses.
The corresponding name also disappears from the source
name display.
• Background A, background B
•Keys 1 to 8
• Utility 1, Utility 2
• DME utility 1, DME utility 2
• External DME
To inhibit operation of a cross-point button
Hold down the button which “Inhibit Set” is assigned, and
press the cross-point button whose operation you want to
inhibit.
The button you pressed flashes amber, and this makes the
operation inhibited.
Even when you inhibit operation of a cross-point button,
macro attachment settings are still possible.
For details, see “Setting and Canceling a Macro
Attachment” in Chapter 16 (Volume 2).
