Executing a Transition
Chapter 3 Signal Selection and Transitions
You can also display the transition rate and independent
key transition rate for each of the M/E and PGM/PST
banks, and change the settings (see page 188).
When a clip transition is selected as the transition type, it
is not possible to set the transition rate.
Frame input mode and timecode input
mode
For numeric input of the transition rate value, there are two
modes: frame input mode and timecode input mode. The
frame input mode is selected automatically when the frame
display mode is selected. The timecode input mode is
selected automatically when the timecode display mode is
selected.
Frame input mode: The entered value is a number of
frames.
Example: Entering 123 constitutes an entry of 123
frames
Timecode input mode: The entered value is a timecode
value.
Example: Entering 123 constitutes an entry of 1
second 23 frames.
Whereas you can enter a value of up to 999 in frame input
mode, a value not smaller than 10 seconds cannot be
entered in timecode input mode.
Frame display mode and timecode display
mode
For the transition rate display in the transition control
block, there are two modes: frame display mode and
timecode display mode. You can select one of these modes
in setup.
For details, see “Setting the Transition Rate Display
Mode” in Chapter 19 (Volume 2).
The setting is common to all banks of the switcher.
Frame display mode: Values are shown as from 0 to 999
frames. In this display mode, a value entered in
timecode input mode is converted for display as a
number of frames.
Timecode display mode: Values are shown as timecode
values, consisting of seconds and frames. In this
display mode, a value entered in frame input mode is
converted for display as a timecode value. If the value
consists of four or more digits, the last digit is not
shown.
Example: A value of 9 seconds 23 frames appears as
“9.23” and a value of 10 seconds 1 frame appears as
“10.0.”
Setting the transition rate in the numeric
keypad control block

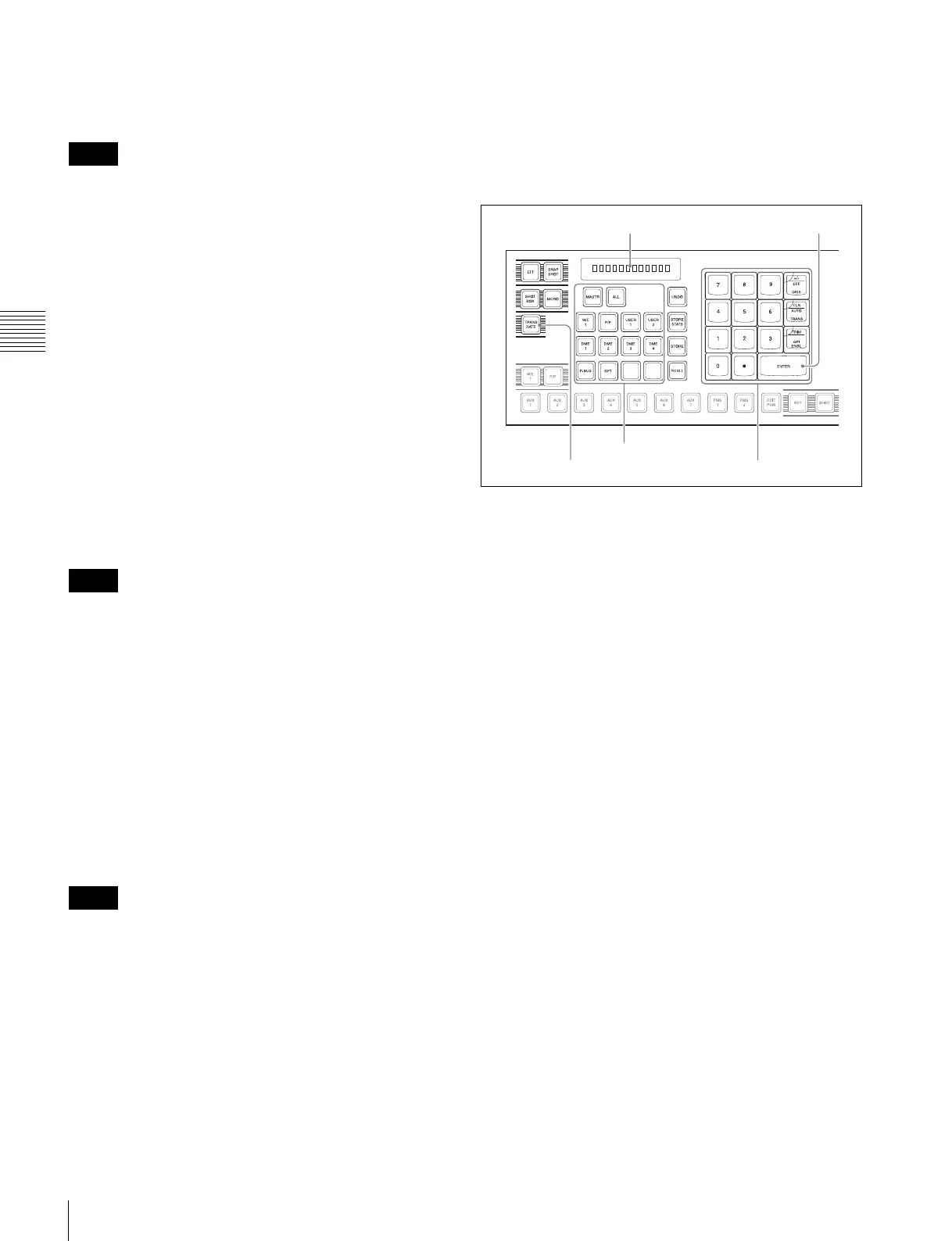

Numeric keypad control block
1
In the numeric keypad control block, press the
[TRANS RATE] button.
2
Press the region selection button for the M/E or PGM/
PST bank for which you want to set the transition rate,
turning it on.
The numeric keypad control block display now shows
the selected region name and the current transition rate
setting for the region.
3
With the numeric keypad, enter the transition rate.
• Enter a value of up to three digits.
• To clear the entry, press the [CLR] button.
4
Press the [ENTER] button.
This confirms the entry, and the selected region name
and the set transition rate appear in the numeric keypad
control block display.
The transition control block display of the same bank
(M/E or PGM/PST) also shows the setting.
To enter a difference from the current value
After pressing the [+/–] button, enter the difference and
press the [TRIM] button.
To change the sign (+ or –), press the [+/–] button.
Notes
Notes
Notes
TRANS RATE button
Region selection buttons
Display
Numeric keypad
ENTER button
