Tsunami Mode-Locked Ti:sapphire Laser

8-14

Figure 8-9: Typical Cross-correlation Signal for an LTC Tsunami Laser

and Mode-locked Laser. ∆τ = 2.4 ps FWHM.

Operating a Model 3941D/3950D/3960D

Without the Model 3930

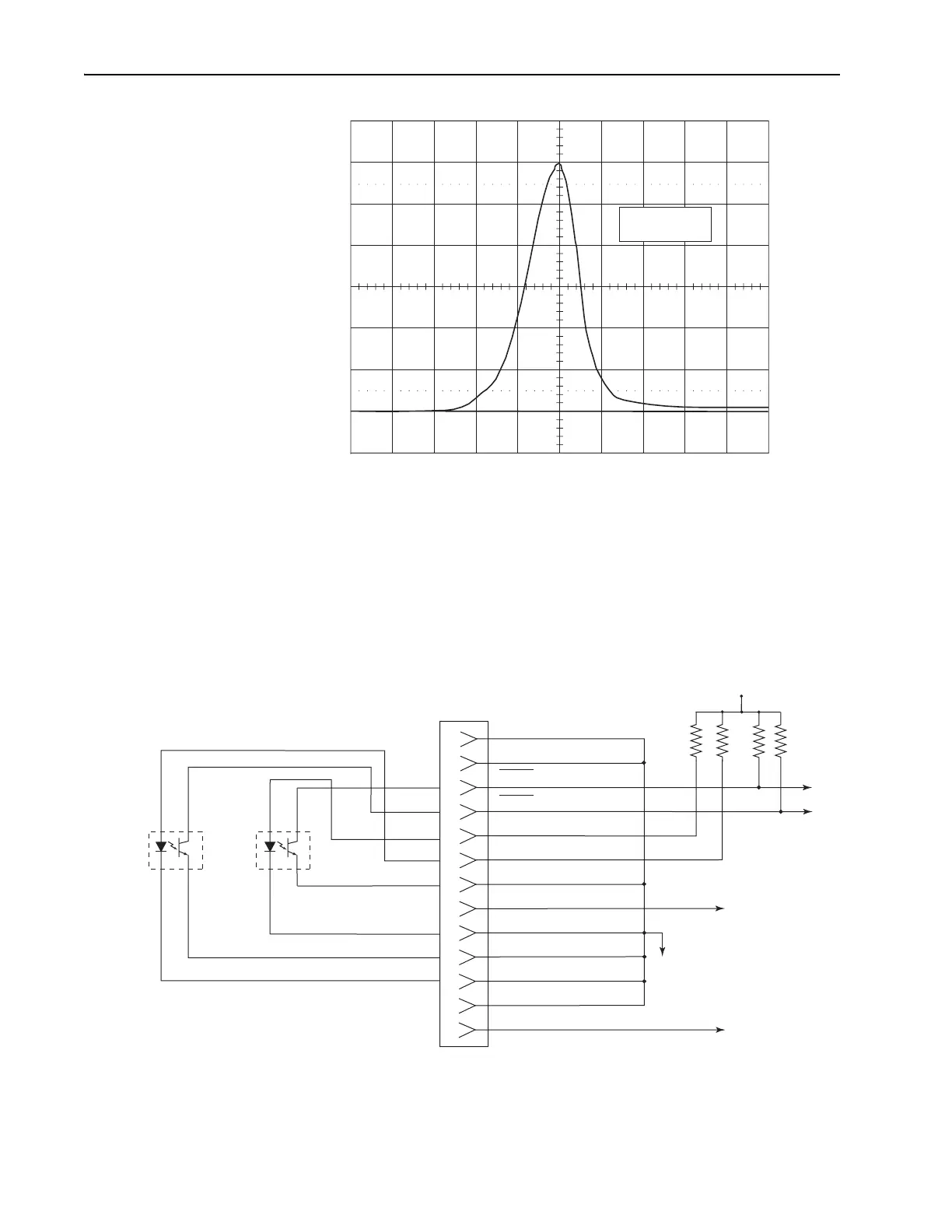

Refer to Figure 8-10 for pin descriptions of the D-sub Lok-to-Clock Tsu-

nami To 3930 connector. It also shows the schematic for the M

limit switch

optointerruptor electronics incorporated in the Tsunami.

Figure 8-10: The

TO 3930 Connector

1.6 ps/div

To 3930

Pins 14 – 25 not used

Motor Drive

PZT Drive –

UpLim

DnLim

UpLimDrive

DnLimDrive

Gnd

PZT Drive +

Gnd

Motor Drive

+ 5 V

10 kΩ

220 Ω

± 10 V

0 to 100 Vdc

Down

Limit
