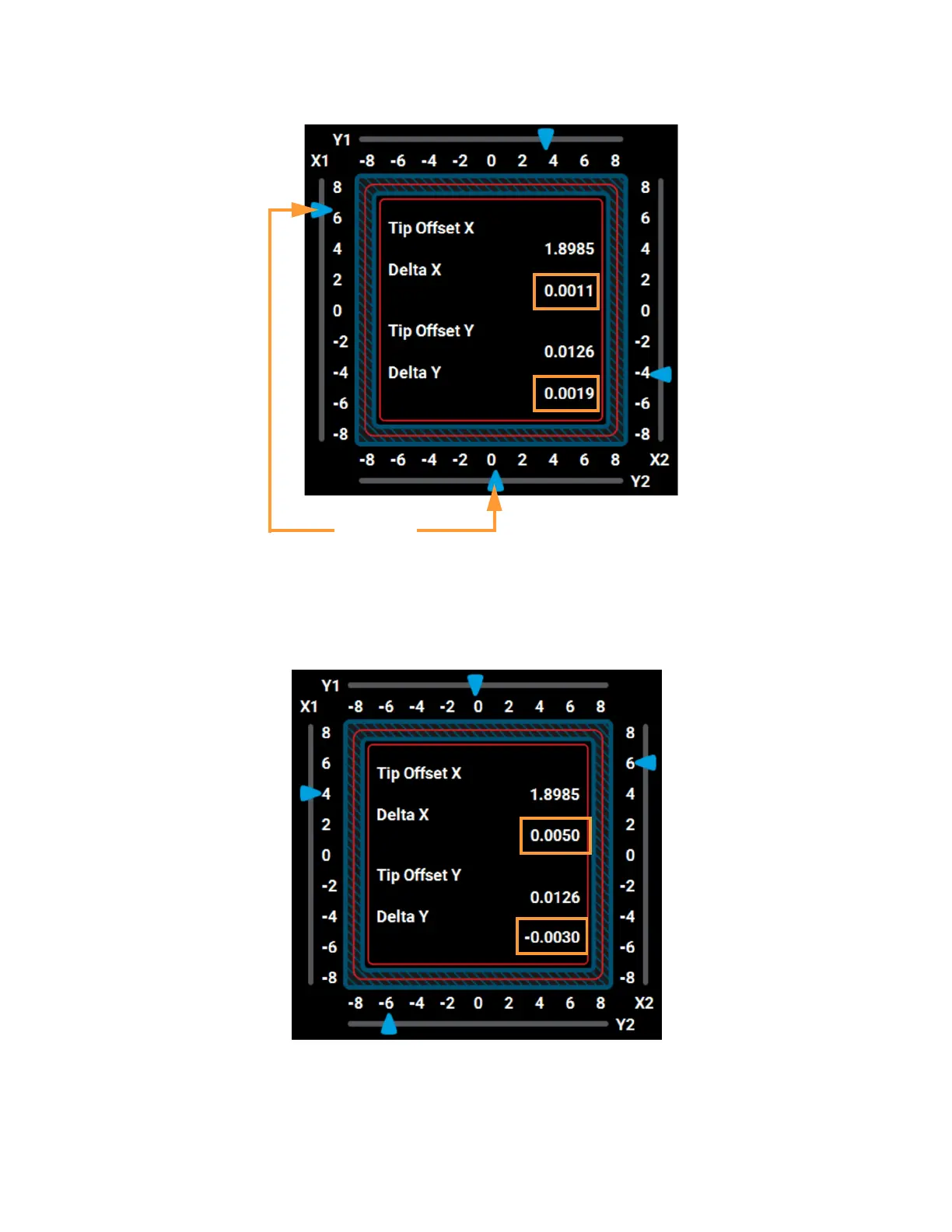

Figure 6-12: XY Offset - No Adjustment Required
• If either of the Delta X or Delta Y values are outside the range of -0.002 to +0.002 in., the printer
requires an adjustment. The following figure shows the Delta X value of 0.0050 in and the Delta Y
value of -0.0030 in. are both outside of the acceptable range.
Figure 6-13: XY Offset - Adjustment Required
D. If an adjustment is required, you will need to rebuild the calibration part. To do so:
