• After entering your adjustment value(s) press the Apply button within the Manual Tip Calibration
page (see Figure 6-9 for button location). Your calibration adjustment(s) will be saved. If you
continue to change the adjustment values, you must press the Apply button again to save the
changes.
• After pressing the Apply button, the Close button will appear. Press the Close button to return to
the initial Tip Calibration page.

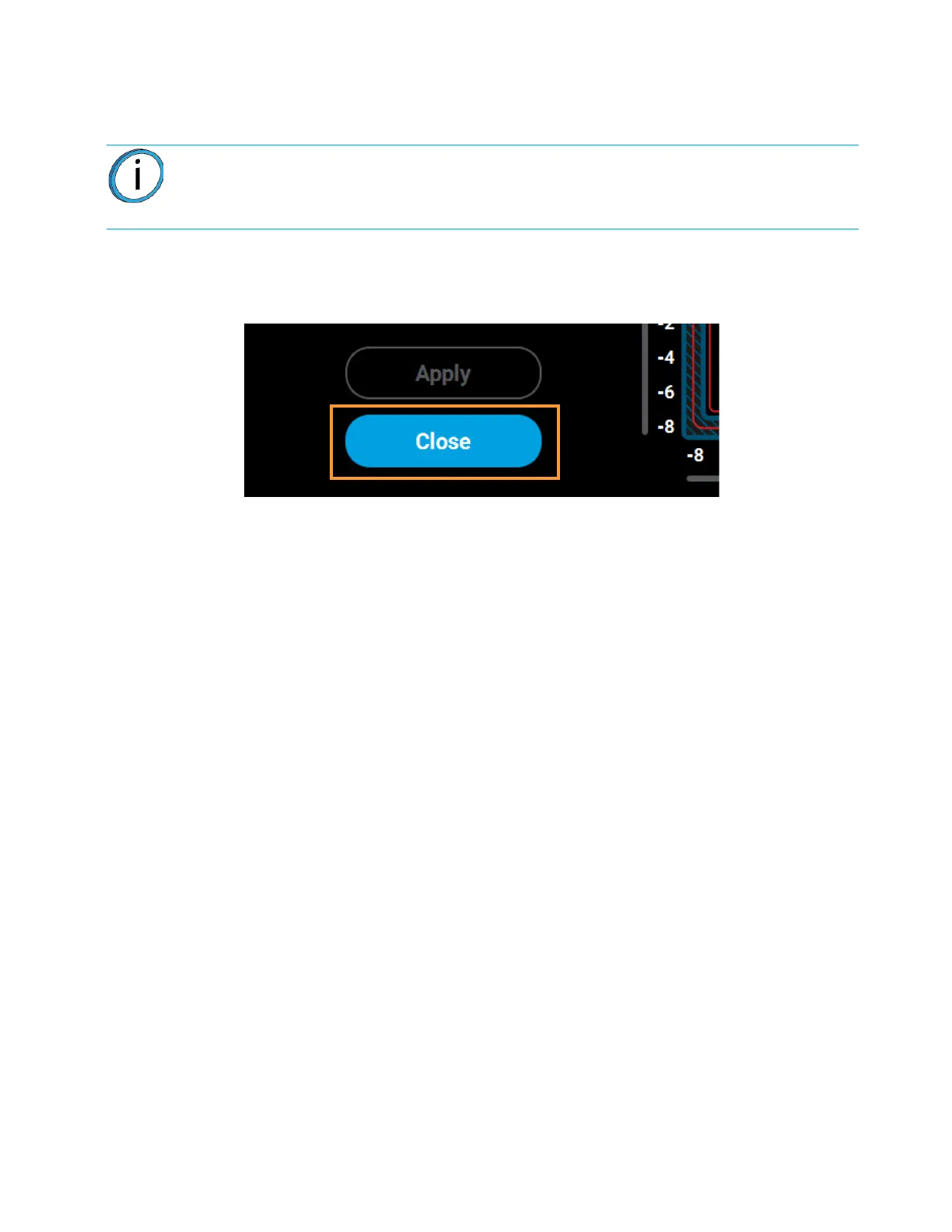

Figure 6-14: Close Button Location
• Repeat step 1 to build a calibration part.
• Repeat the instructions in step . Continue to check and adjust for XY offset. Readjust until both of
the Delta X and Delta Y values are within tolerance, which is within -0.002 to +0.002 in.
E. Proceed to the Z offset adjustment (step 3) once the calibration toolpath for X and Y is within
tolerance.
Note: The Cancel button can be used to reset an adjustment value entered prior to
pressing the Apply button. Once the Apply button is pressed, values will be saved and the
printer’s calibration settings will reflect the adjustment value entered. Use caution when
entering an adjustment value to ensure it is correct prior to pressing the Apply button.
