178
13. Open the material bay drawer.
14. Using a 3mm hex wrench, remove the screws (3) that secure the rear tool tray. Remove the rear
tool tray.

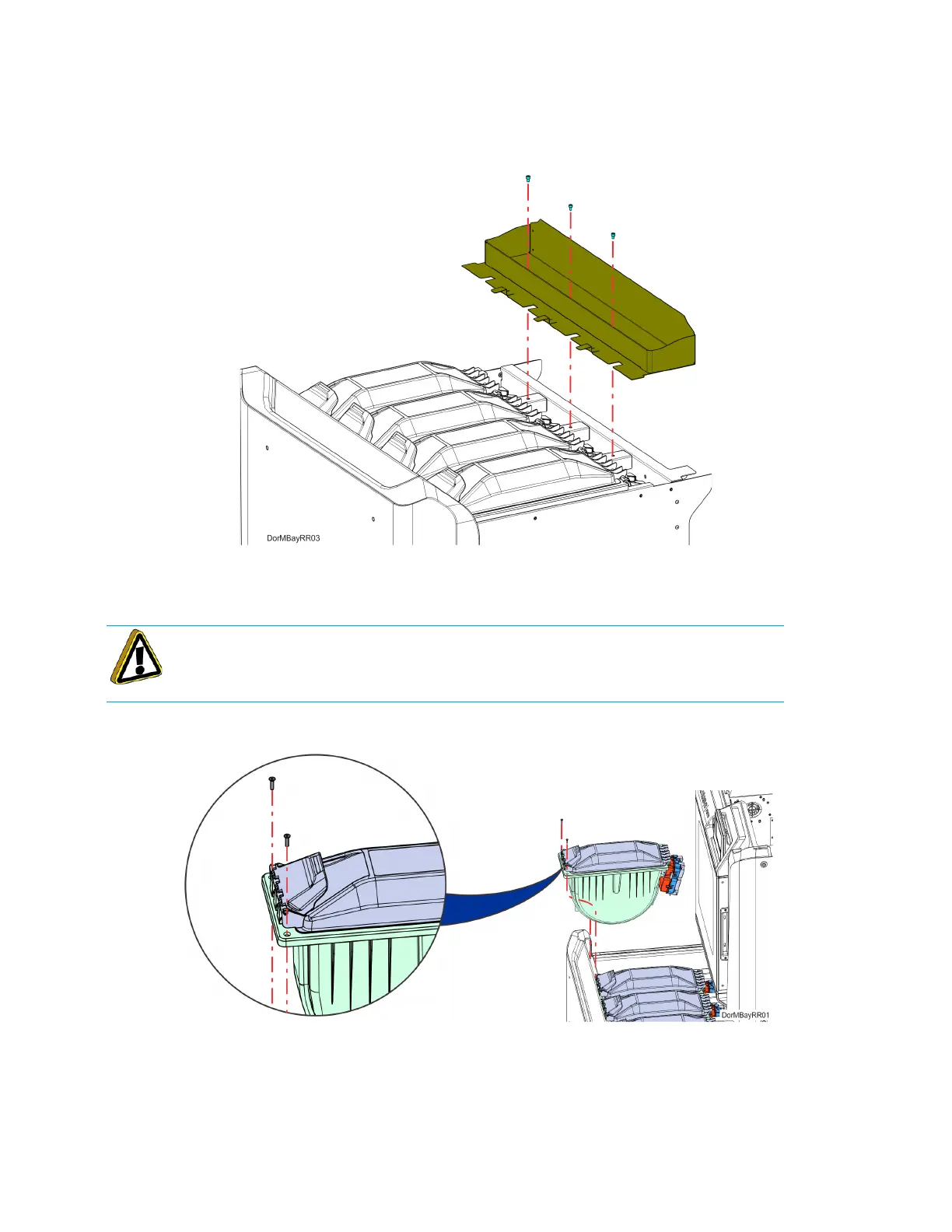

Figure 7-19: Rear tool tray
15. Using a 2.5mm hex wrench, remove the material bay mounting screws (2). See Figure 7-20.
16. Gently tilt and lift the material bay to remove it from the open drawer. See Figure 7-20.
Figure 7-20: Material Bay Removal
Caution: Be careful not to damage the spool interface board on the side of the
material bay.
