198
5. Disconnect the door latch assembly solenoid cable connector.
6. Disconnect the door latch assembly sensor cable connectors (2).
7. Using a 4 mm socket wrench, remove the door latch assembly mounting nuts (2). See Figure 7-
39.
8. Remove the door latch assembly from the oven door. See Figure 7-39.

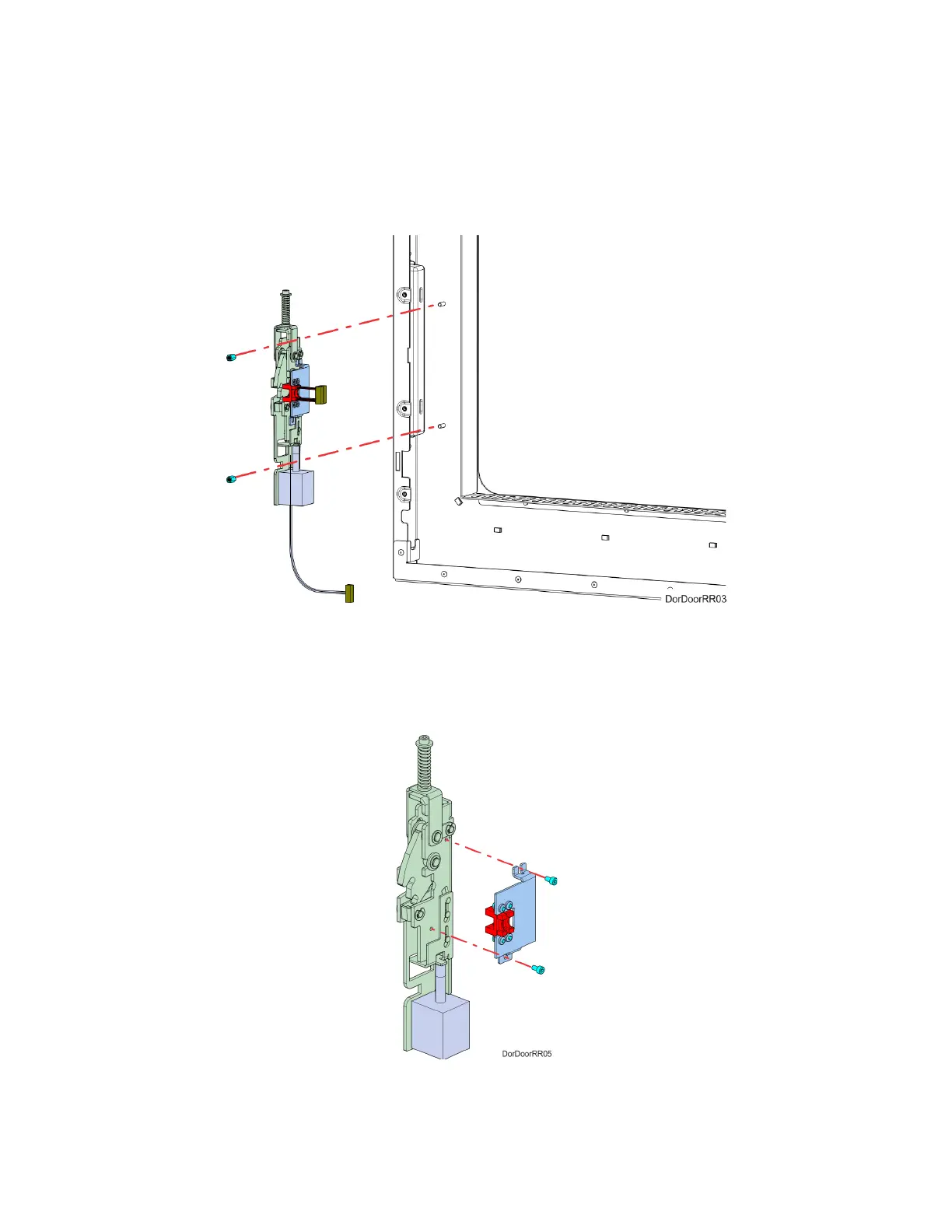

Figure 7-39: Door latch assembly mounting nut locations
9. Using a 2.5 mm hex wrench, remove the sensor bracket mounting screws (2). See Figure 7-40.
10. Remove the sensor and bracket from the latch assembly and retain them for re-installation. See
Figure 7-40.
Figure 7-40: Door latch sensor mounting bracket detail
