Head End Siderail Assembly, Right
Head End Siderail Assembly, Right - 28-0244 Rev R (Reference Only)
Item Part No. Part Name Qty.
1 QPA28-0493 Siderail Sleeve 1
2 28-0006 Siderail Mechanism, Reverse 1
3 QDB28-0278Z Siderail Latch 1
4 QDF2042 14 Position Connector 1
5 QDF2043 Cable Clamp 1
6 QDF2049 Bushing 4
7 QDF26-0108 Siderail Control Module Cable, Right 1
8 QDF28-0145 Screw Cover 2
9 QDF28-0146 Label - Siderail Latch 1
10 QDF28-0246 Label - Nurse Control, Right 1
11 QDF7826 3M Tape #950 1
12 QDF9018 Amp Pin Contact 7
13 QDF28-0491 Bushing 1
14 QDF9518 Cable Tie 4
15 QP28-0489 Siderail Handle, Right 1
16 QP26-0011 Inner Siderail Panel, Head, Right 1
17 QP28-0040 Siderail Cover 2
18 QP28-0521 Siderail, Head, Right 1
19 QPA28-0015 Siderail Sleeve 1
20 QPA28-0016 Sleeve with Lock 1
21 QPA28-0095 Siderail Frame, Head, Right 1
22 QRE25-0245 Spring 1
23 QRE28-0293 Spring 1
24 VV10B0G40-S Hex Socket Head Cap Screw 4
25 VV10A1P20-S Hex Socket Low Head Cap Screw 1
26 VV31A0G16 Flat Head Machine Screw 2
27 VV33A0G28-S Pan Head Machine Screw 8
28 VVB3A9N24PF Pan Head Screw 6
29 QDF2053 PVC Tape, Red 1
30 M0019 OG2 Grease 1
29
11

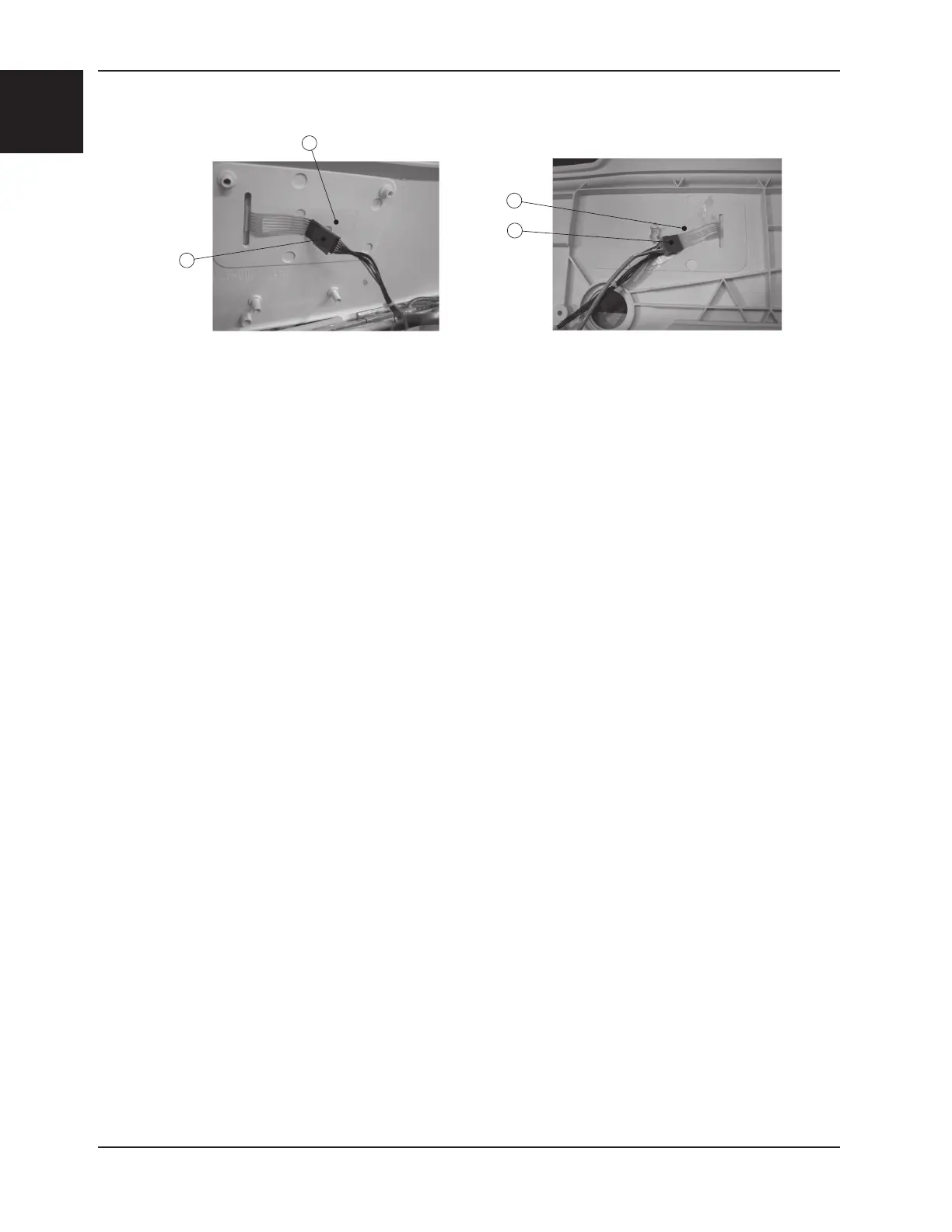

Assembly Detail on part #16
11
29
Assembly Detail on part #18
