www.stryker.com 280C-009-002 REV B 1-35
Return To Table of Contents
English
FOOT SECTION REPLACEMENT
Tools Required:
• 1/2” Combination Wrench
• #2 Phillips Screwdriver
• Bungee Cord (or equivalent)
Procedure:
1. Raise the bed to the highest position and apply the brakes. Flatten all sections of the mattress support.
2. Unplug the power cord from the wall receptacle.
3. Lower the siderails.
4. If applicable, remove the foot section plastic cover (optional). Lift and fold back the foot section toward the head
end of the bed and secure it to the bed using a bungee cord (or equivalent).
5. Remove the foot end mattress retainer (A) and the prop rod and install it on the new foot section. Replace the foot
section to horizontal position.
6. Using a 1/2” combination wrench, remove the two locknuts, two washers, two shoulder spacers, two bolts (B) linking
the foot section to the thigh section and remove the defective section.
7. Reverse the above steps to install the new foot section.
8. Test the bed for proper operation before returning it to service.
B
C
D
E
E
F
G
H

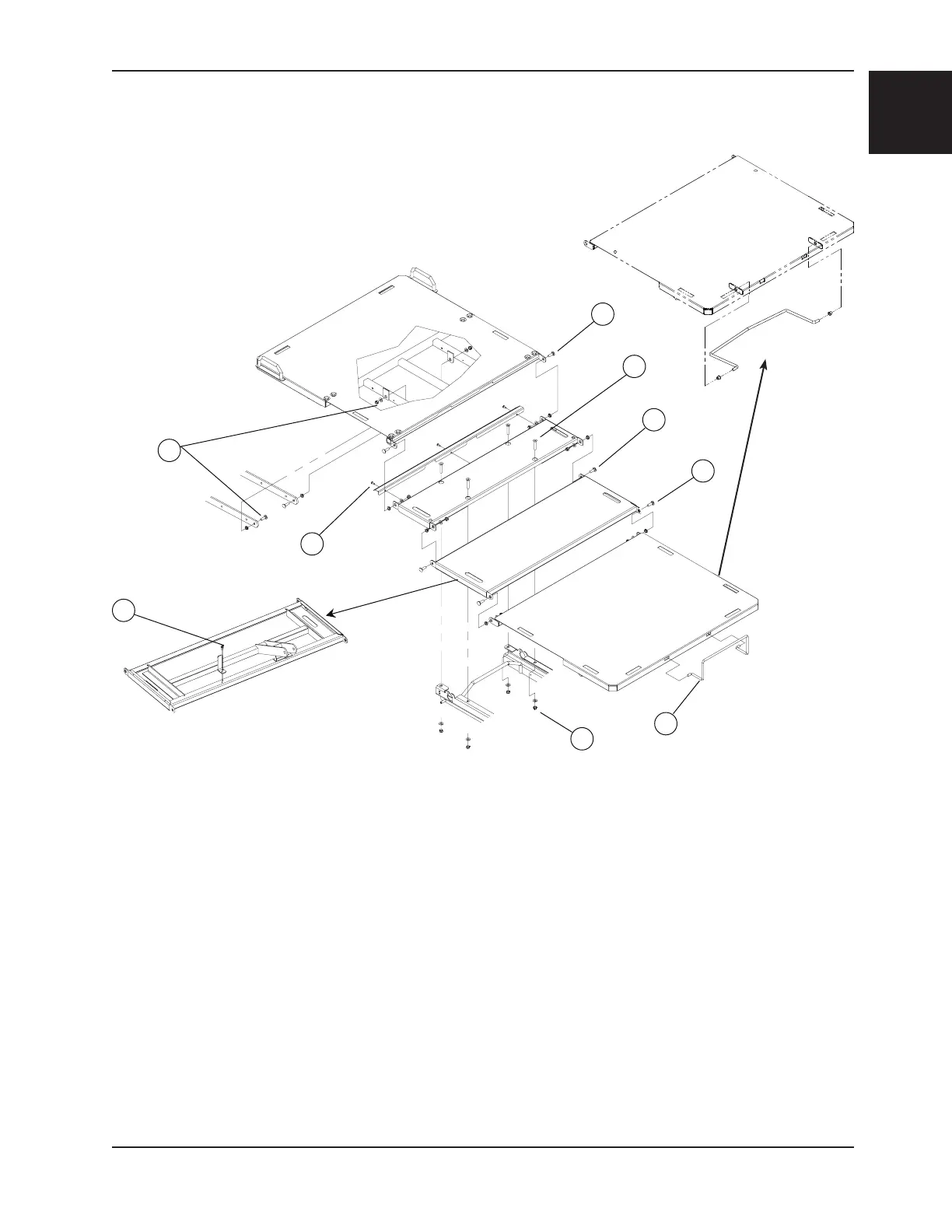

Figure 6
Service Information
