TRANSFORMER REPLACEMENT (100/200/220/240 VAC OPTIONS)
Tools Required:
• #2 Phillips Screwdriver
• 1/2” Combination Wrench
Procedure:
1. Raise the bed to the highest position and apply the brakes.
2. Unplug the power cord from the wall receptacle.
3. Using a #2 Phillips screwdriver, remove the six screws (A) holding the cover to the litter. Keep the cable clips. See
Figure 12, page 1-48.
4. Properly ground yourself (see “Grounding Diagram” section, page 1-13).
5. Using a #2 Phillips screwdriver, remove the nut, washer and bolt (A) holding the transformer to the litter. Disconnect
the transformer cable and remove it.
Note
Use caution to avoid overtightening the bolt.
6. Reverse the above steps to install the new transformer.
7. Test the bed for proper operation before returning the bed to service.

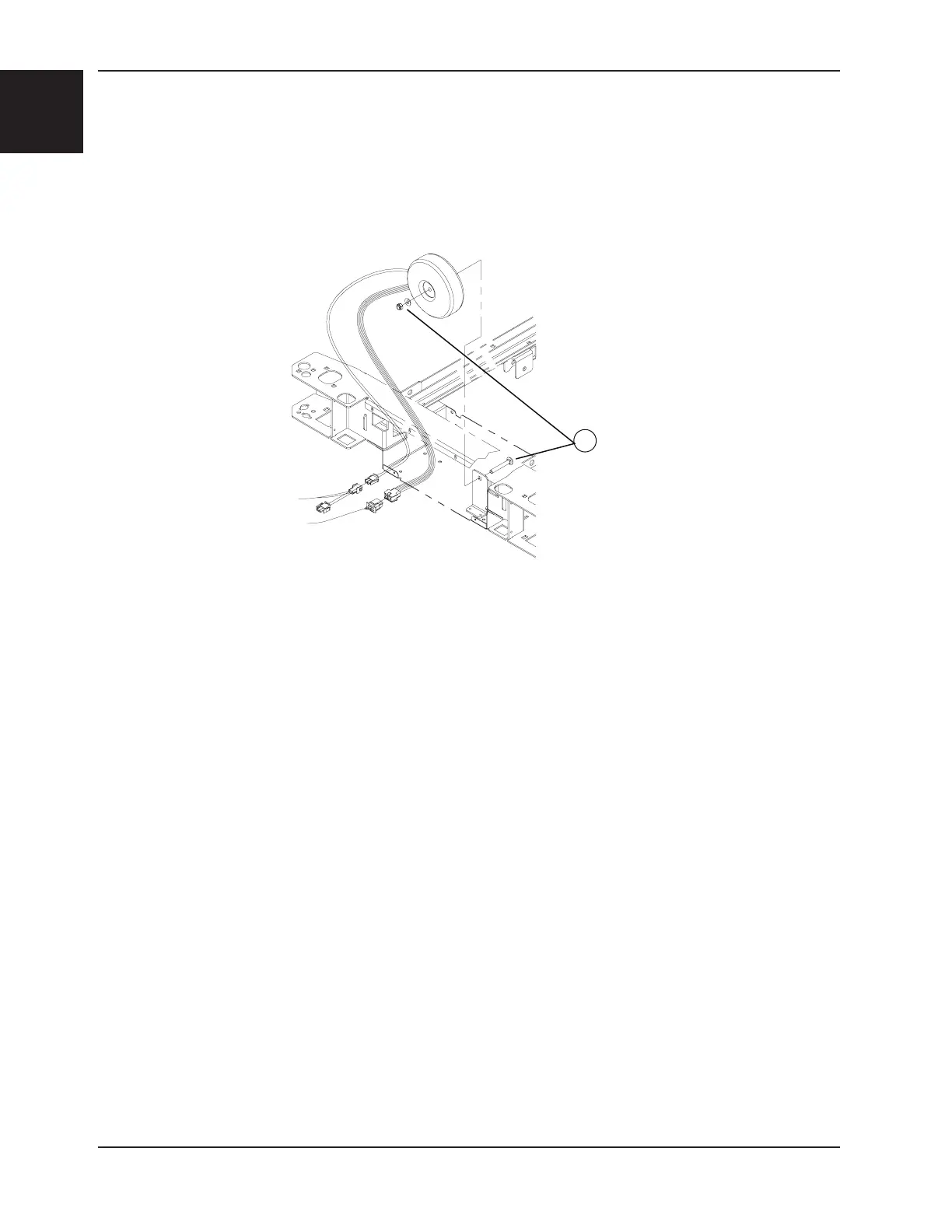

Figure 14
