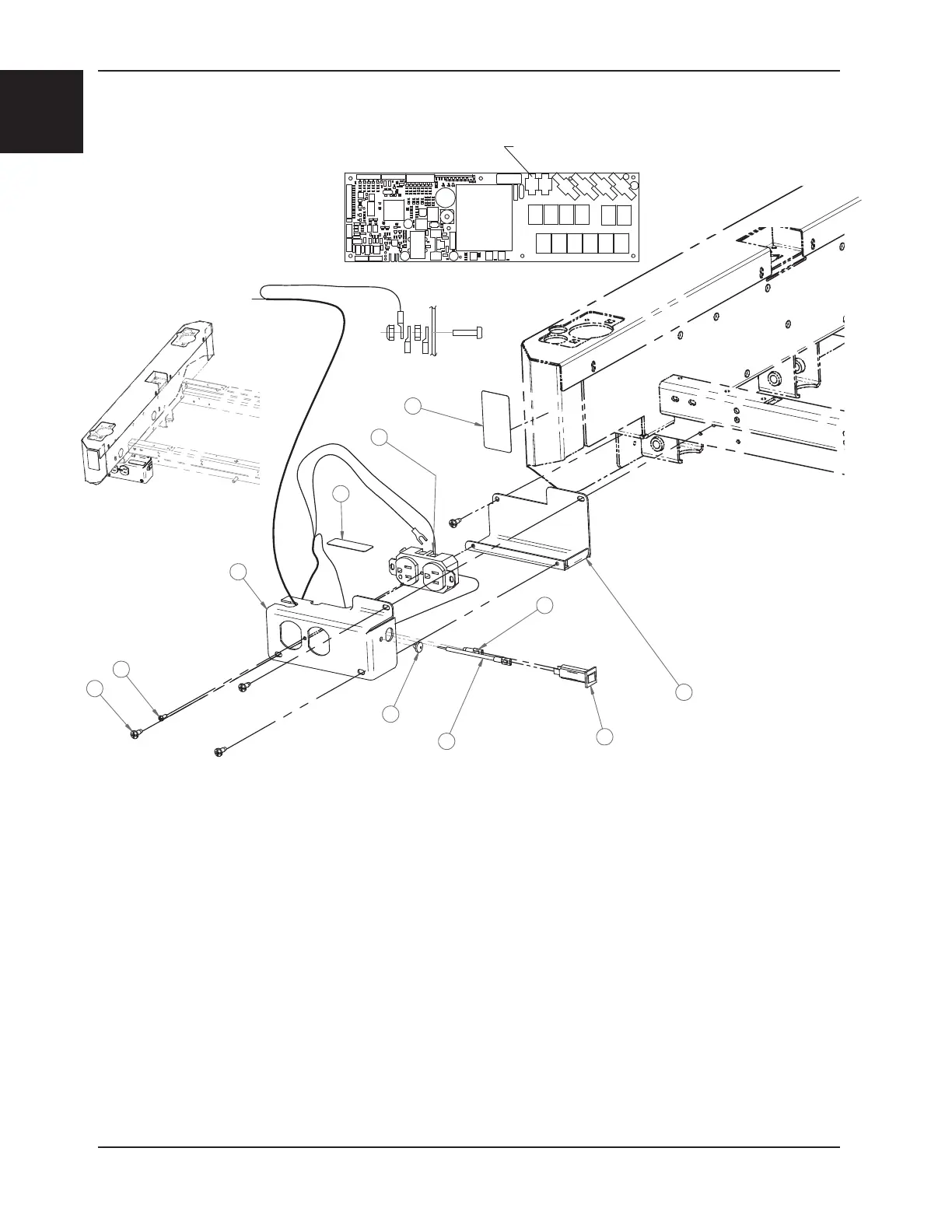

120 VAC Auxiliary Outlet
5
9
1
2
10
7
J6
8
11
3
4
6
Item Part No. Part Name Qty.
1 25-0408P Auxiliary Outlet Casing 1
2 25-0409P Auxiliary Outlet Bracket 1
3 QDF17-0199 Auxiliary 120V Plug Wire 1
4 QDF17-0223 Circuit Breaker Wire 1
5 QDF8024 Double Socket Outlet 1
6 QDF9025 Circuit Breaker - 5A 1
7 QE71-0225-T Circuit Breaker Label 1
8 QE71-0742-T Auxiliary Outlet Label 1
9 VV37A1C12 Truss Head Machine Screw 1
10 VV83A9G16 Pan Head Tapping Screw 4
11 QPCK3001 Rubber Play Bumper 1
OL250029 Rev D (Reference Only)
Control Board
White
Green
Black
Black
Foot End
