Stryker GoBed II - Footboard Assembly

www.stryker.com 280C-009-002 REV B 1-131
Return To Table of Contents
English

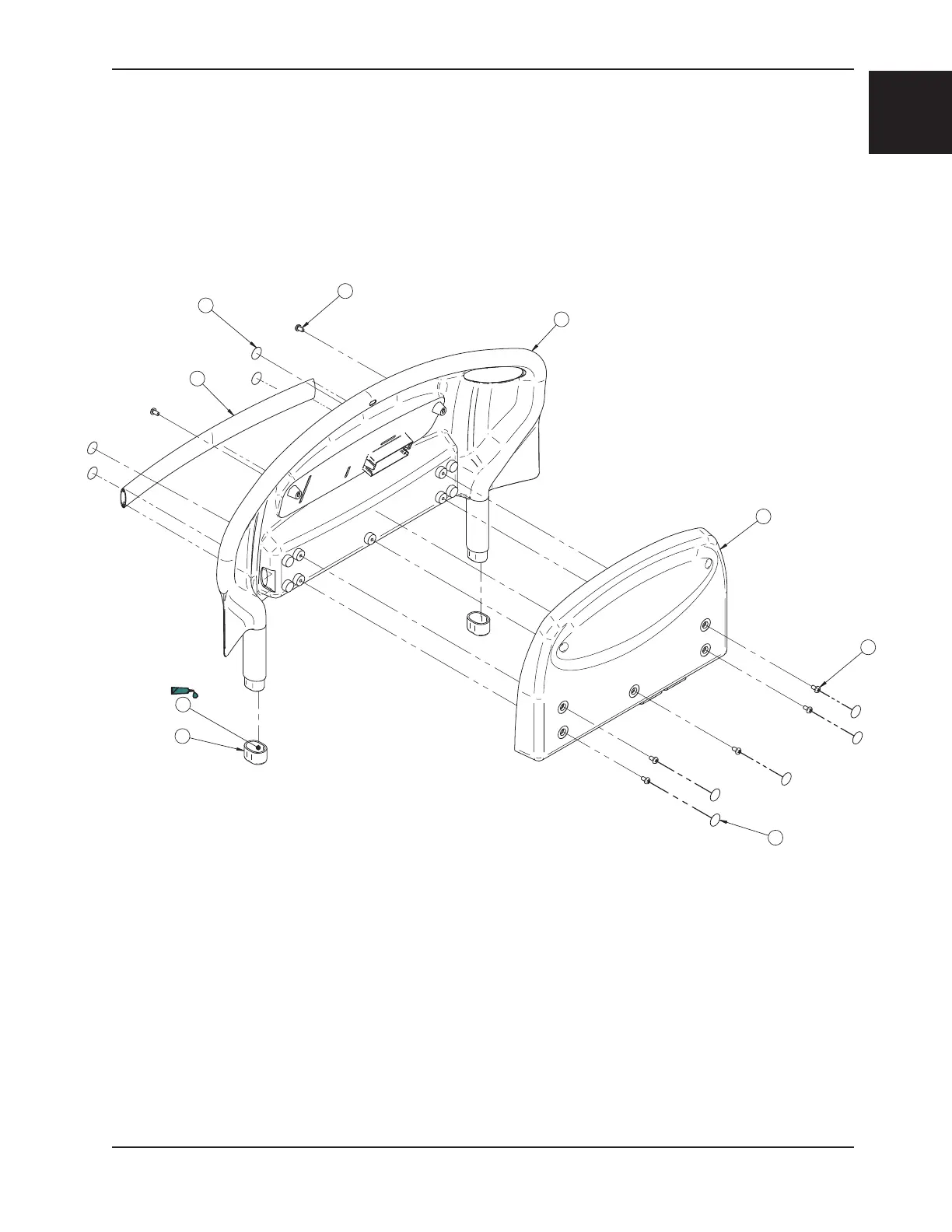

Footboard Assembly
Item Part No. Part Name Qty.
1 25-0260P Pump Support 1
2 M0005 Glue 1
4 QDF28-0334 Screw Cover 9
5 QP28-0679 Foot Board 1
6 QP28-0676 Foot Board Cover 1
7 QPC21-3855 Rubber Cap 2
8 VVB3A9N16PF Pan Head Machine Screw 7
L28-015 Rev C (Reference Only)
5
8
6
4
7
2
1
4
8
Torque item 8 to 22±2
Torque item
8 to 22±2
