Tools Required:
• 1/2” Socket
• 1/2” Combination Wrench
• 3/8” Drive Ratchet
• Bungee Cord (or equivalent)
Procedure:
1. Raise the bed to the highest position and apply the brakes. Raise the siderail to be repaired.
2. Raise the Gatch to the highest position and unplug the power cord from the wall receptacle.
3. If applicable, remove the plastic litter cover (optional). Lift and fold the foot section back toward the head end of
the bed. Secure it using a bungee cord.
4. Using a 1/2” socket and a 1/2” combination wrench, remove the four locknuts and four bolts (A) holding the siderail
assembly to the support and remove the assembly. Support the siderail assembly while removing the last bolts.
5. Reverse the above steps to install the new siderail assembly.
6. Test the siderail for proper operation before returning the bed to service.
K
K
F
D
E
G
B
C
B

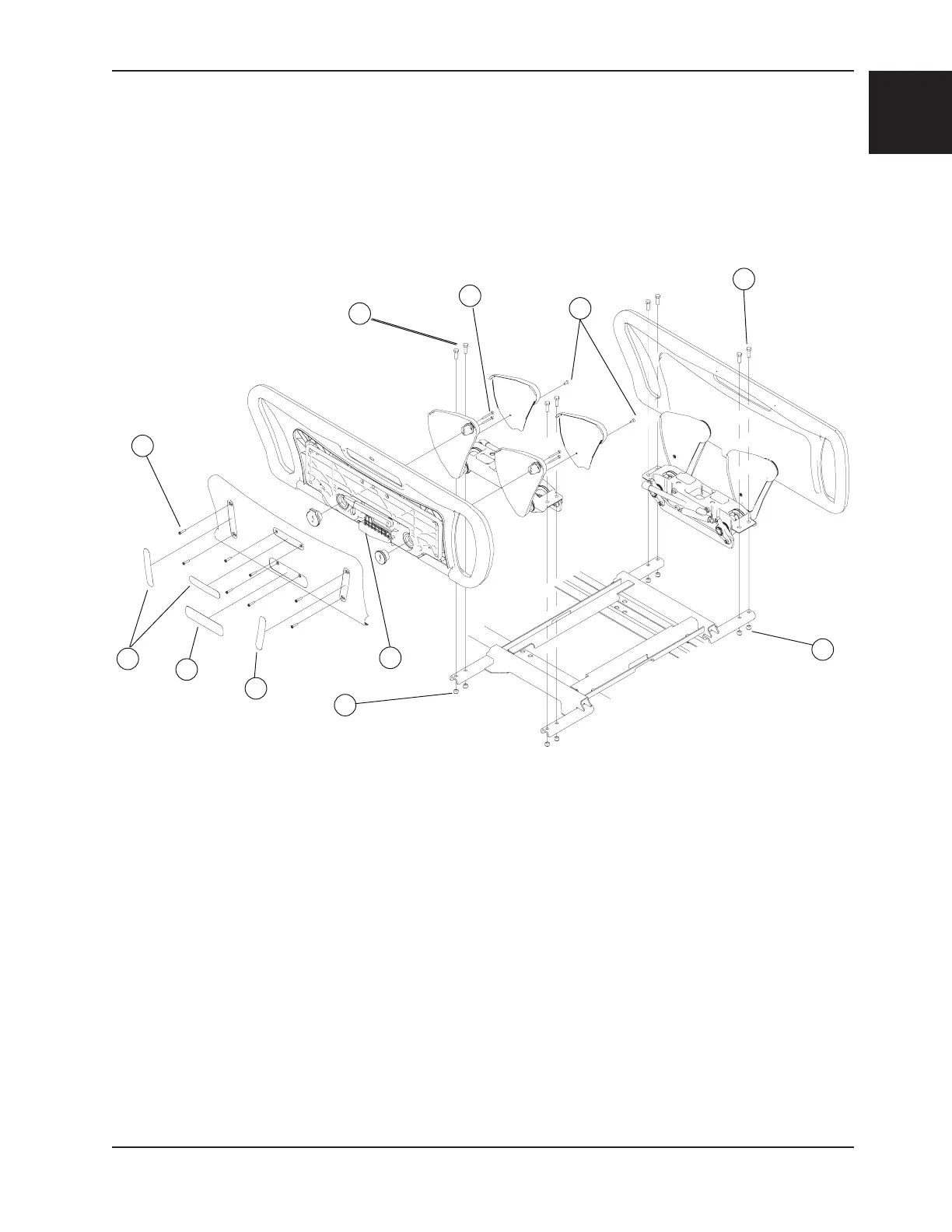

FOOT END SIDERAIL ASSEMBLY REPLACEMENT
Service Information
Figure 2
