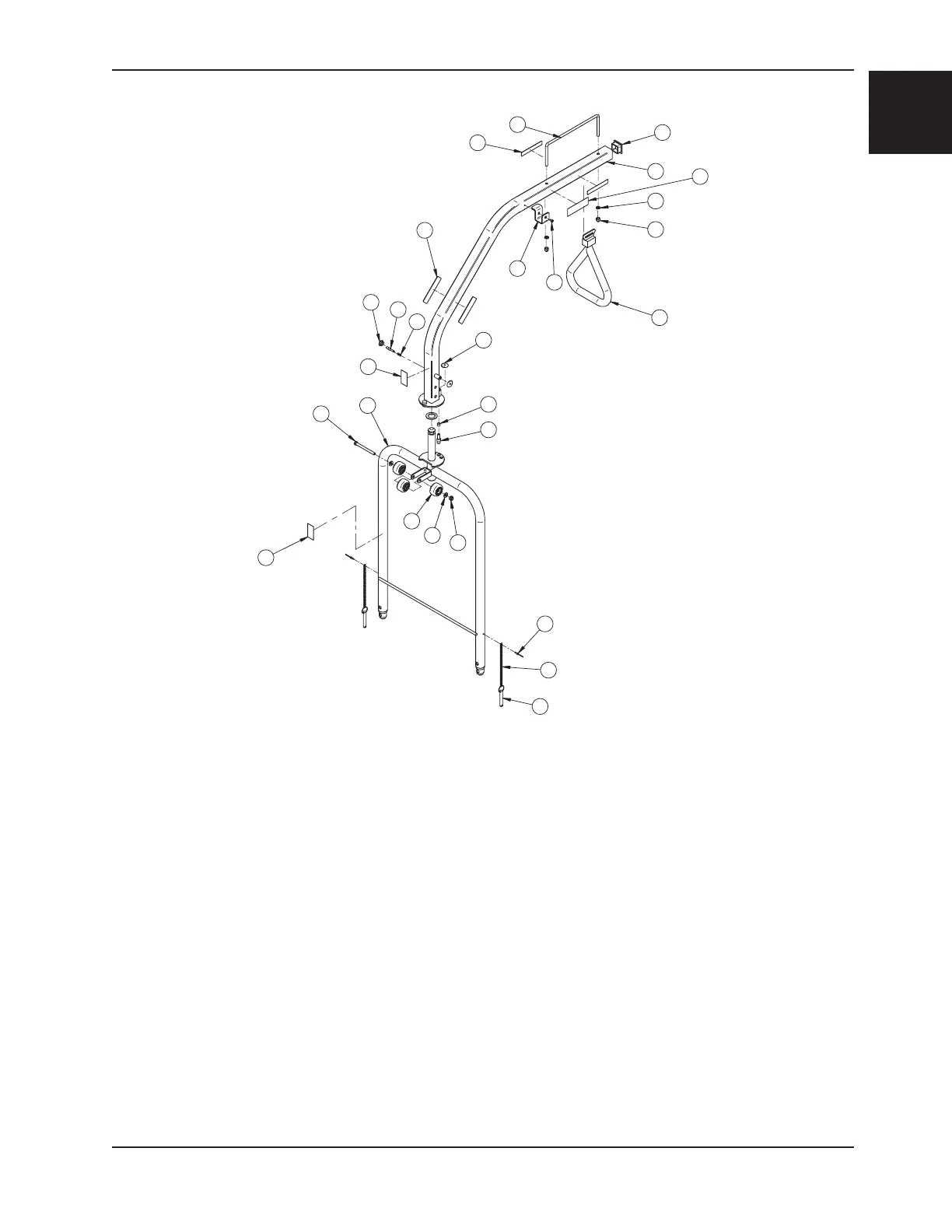

Patient Helper - FA64148
1 16424C Plunger Washer 2
2 16243Z Plunger 1
3 18939Z Plunger 1
4 64-0700P Support Tube 1
5 64-0725P Trapeze Frame 1
6 9870 Triangle Retainer 1
8 QDF6023 Trapeze Handle 1
9 64-1298P Trapeze Hook 1
11 QE71-0292-T Label - Maximum Load 2
12 QE71-0731 Label - Caution 2
13 QPC14-0321 Roller Bumper 3
15 QPPE1205 Cap 1
16 QPPF1505 Square Tube Cap 1
17 QR110027 Compression Spring 1
18 QRC9793 Compression Spring 1
19 VB15A1O60 Hex Bolt 1
20 VE30A1O Nylon Hex Locknut 1
L64-075 Rev E (Reference Only)
8
21
25
4
16
11
6
9
22
12
18
2
15
29
5
19
1
17
3
13
23
20
26
28
27
29
30
Item Part No. Part Name Qty.
21 VE40A10 Cap Nut 2
22 VV83A9G12 Pan Head Tapping Screw 1
23 VW10A10 Washer 2
24 VW10C322802 Nylon Washer 1
25 VW20A10 Spring Washer 2
26 VR11H46 Pop Rivet 2
27 64-0536 Chain 2
28 QDF7871 Hitch Pin 2
29 QE14399-T Label - Manufacturer 2
30 QE71-1163-T Label - Handle Storage 1
Item Part No. Part Name Qty.
