1-40 280C-009-002 REV B www.stryker.com
Return To Table of Contents
English
FOWLER MOTOR REPLACEMENT
Tools Required:
• Needle Nose Pliers
• #2 Phillips Screwdrivers
• #3 Phillips Screwdrivers
• Pliers
• Cutting Pliers
• 5/16” Socket
• 3/8” Drive Ratchet
• Bungee Cord (or equivalent)
• Small Regular Screwdriver
Procedure:
1. Raise the bed to the highest position and apply the brakes.
2. Lower the Fowler to the flat (0°) position.
3. Raise the Gatch to the highest position.
4. Unplug the power cord from the wall receptacle.
5. Raise the siderails.
6. Remove the headboard and footboard.
7. Lift and fold the foot section back toward the head end of the bed. Secure it to the bed using a bungee cord.
8. Using needle nose pliers, remove the rue ring cotter, washers, clevis pin (A) linking the actuator tube to the seat
section lever arms.
B
C
D
D
E
F
G
H
H
I
J
J
I
J
J
K
K

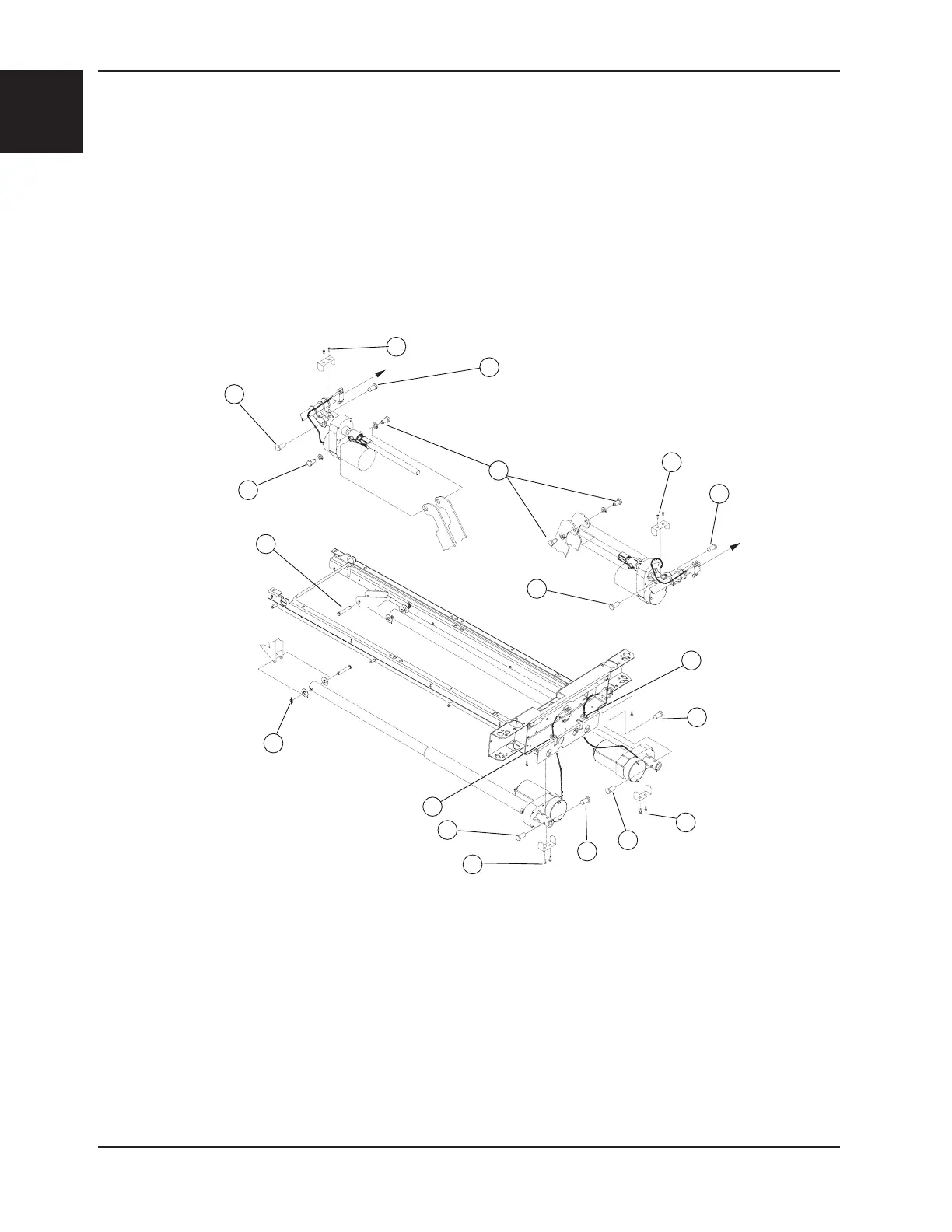

Figure 8
