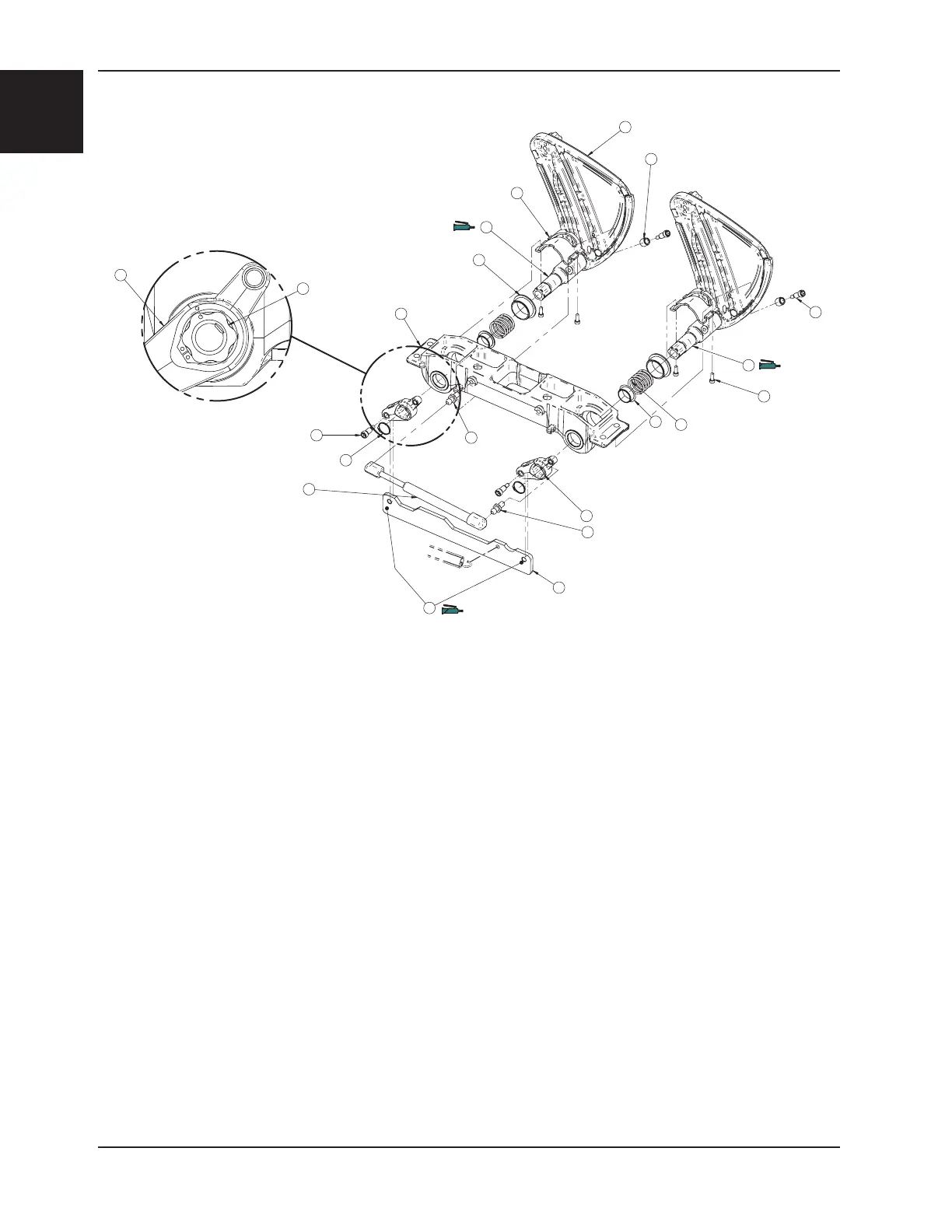

Siderail Assembly - 28-0005
5
8
10
13
14
11
7
12
1
3
13
6
15
15
3
15
2
9
10
1
4
Item Part No. Part Name Qty.
1 28-0282P Siderail Arm 2
2 28-0284P Siderail Base Angle Bracket 1
3 QPA28-0011 Transfer Siderail Arm 2
4 28-0014Z Transfer Plate 1
5 QRC28-0208 Compression Spring 2
6 28-0218Z Sliding Guide 2
7 QDF28-0268 Flanged Bushing 2
8 QDF28-0270 Flanged Bushing 2
9 QPA27-1720 Bushing 2
10 QDF2005-S Ball Stud 2
11 QDF2033 Damper 1
12 QDF7894 Bushing 2
13 VD60A1N1016-S Shoulder Bolt 4
14 VV10A0G16-S Hex Socket Head Cap Screw 4
15 M0019 OG2 Grease 1
Rev 13
