Head End Siderail Assembly, Left
Head End Siderail Assembly, Left - 28-0245 Rev R (Reference Only)
Item Part No. Part Name Qty.
1 QPA28-0493 Siderail Sleeve 1
2 28-0005 Siderail Mechanism 1
3 QDB28-0278Z Siderail Latch 1
4 QDF2042 14 Position Connector 1
5 QDF2043 Cable Clamp 1
6 QDF2049 Bushing 4
7 QDF26-0129 Siderail Control Module Cable, Left 1
8 QDF28-0145 Screw Cover 2
9 QDF28-0146 Label - Siderail Latch 1
10 QDF28-0247 Label - Nurse Control, Left 1
11 QDF9018 Amp Pin Contact 7
12 QDF28-0491 Bushing 1
13 QDF9518 Cable Tie 4
14 QP28-0490 Siderail Handle, Foot 1
15 QP26-0012 Inner Siderail Panel, Head, Left 1
16 QP28-0039 Siderail Cover 2
17 QP28-0522 Siderail, Head, Left 1
18 QPA28-0015 Siderail Sleeve 1
19 QPA28-0016 Sleeve with Lock 1
20 QPA28-0096 Siderail Frame, Head, Left 1
21 QRE25-0245 Spring 1
22 VV10B0G40-S Hex Socket Head Cap Screw 4
23 VV10A1P20-S Hex Socket Low Head Cap Screw 1
24 VV31A0G16 Flat Head Machine Screw 2
25 VV33A0G28-S Pan Head Machine Screw 8
26 VVB3A9N24PF Pan Head Screw 6
27 QRE28-0293 Spring 1
28 QDF7826 3M Tape #950 1
29 QDF2053 PVC Tape, Red 1
30 M0019 OG2 Grease 1
28
29

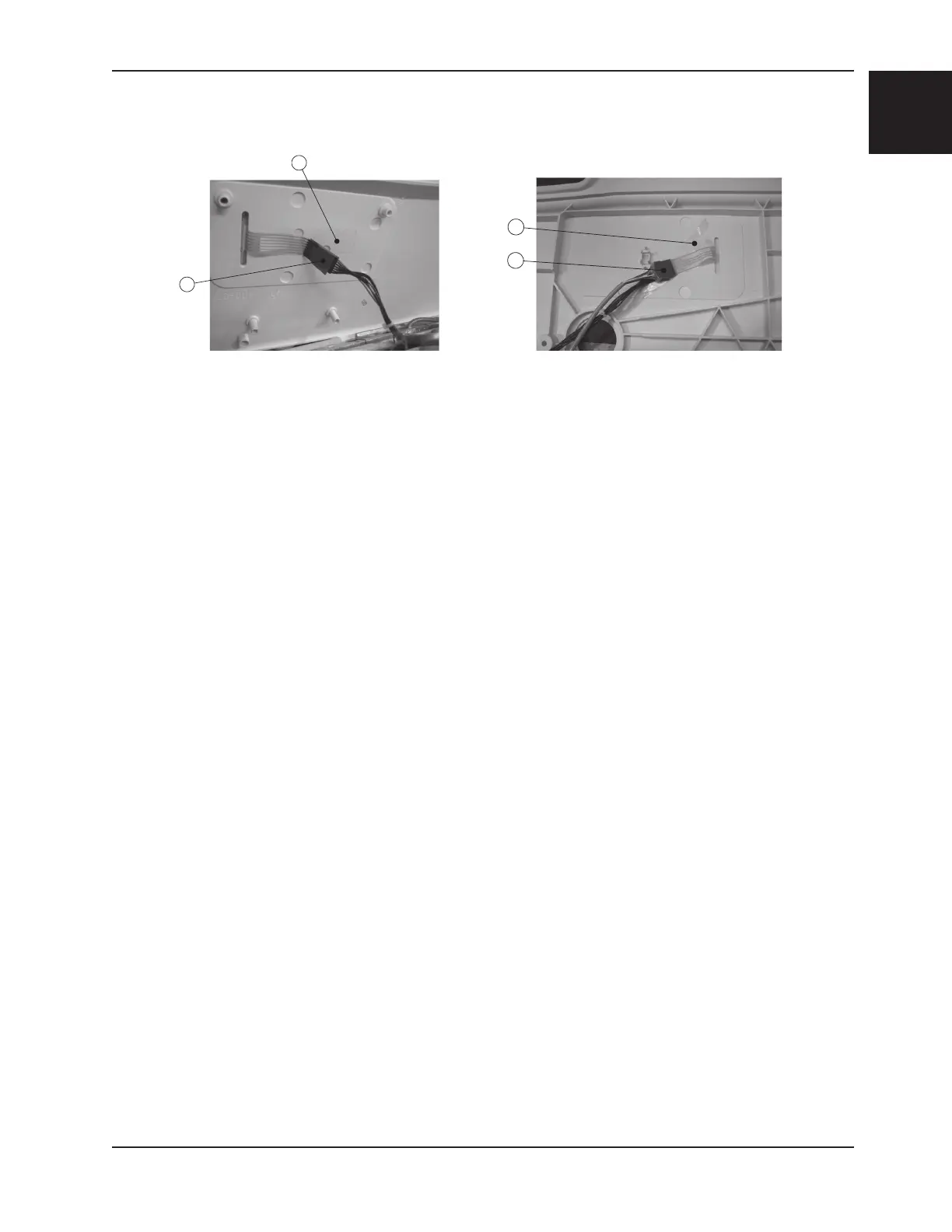

Assembly Detail on part #15
28
29
Assembly Detail on part #17
To Next Page
