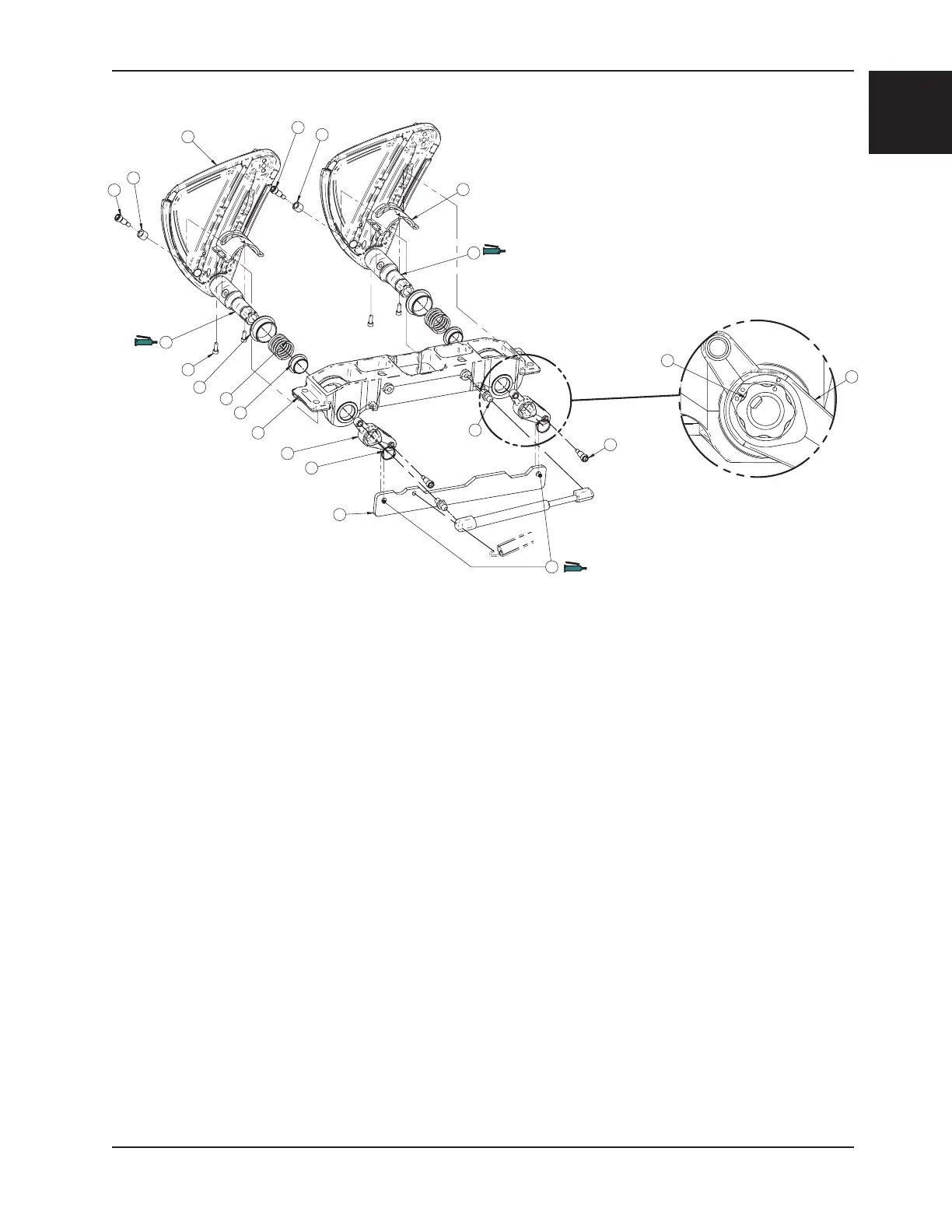

Siderail Assembly, Reverse - 28-0006
3
6
14
13
11
5
9
2
4
1
4
8
14
10
15
10
7
7
14
1
10
Item Part No. Part Name Qty.
1 28-0283P Siderail Arm, Reverse 2
2 28-0284P Siderail Base Angle Bracket 1
3 28-0014Z Transfer Plate 1
4 QPA28-0086 Transfer Siderail Arm, Reverse 2
5 QRC28-0208 Compression Spring 2
6 28-0219Z Sliding Guide, Reverse 2
7 QPA27-1720 Bushing 2
8 QDF28-0270 Flanged Bushing 2
9 QDF28-0268 Flanged Bushing 2
10 M0019 OG2 Grease 1
11 QDF2005-S Ball Stud 2
12 QDF2033 Damper (not shown) 1
13 QDF7894 Bushing 2
14 VD60A1N1016-S Shoulder Bolt 4
15 VV10A0G16-S Hex Socket Head Cap Screw 4
