1-150 280C-009-002 REV B www.stryker.com
Return To Table of Contents
English

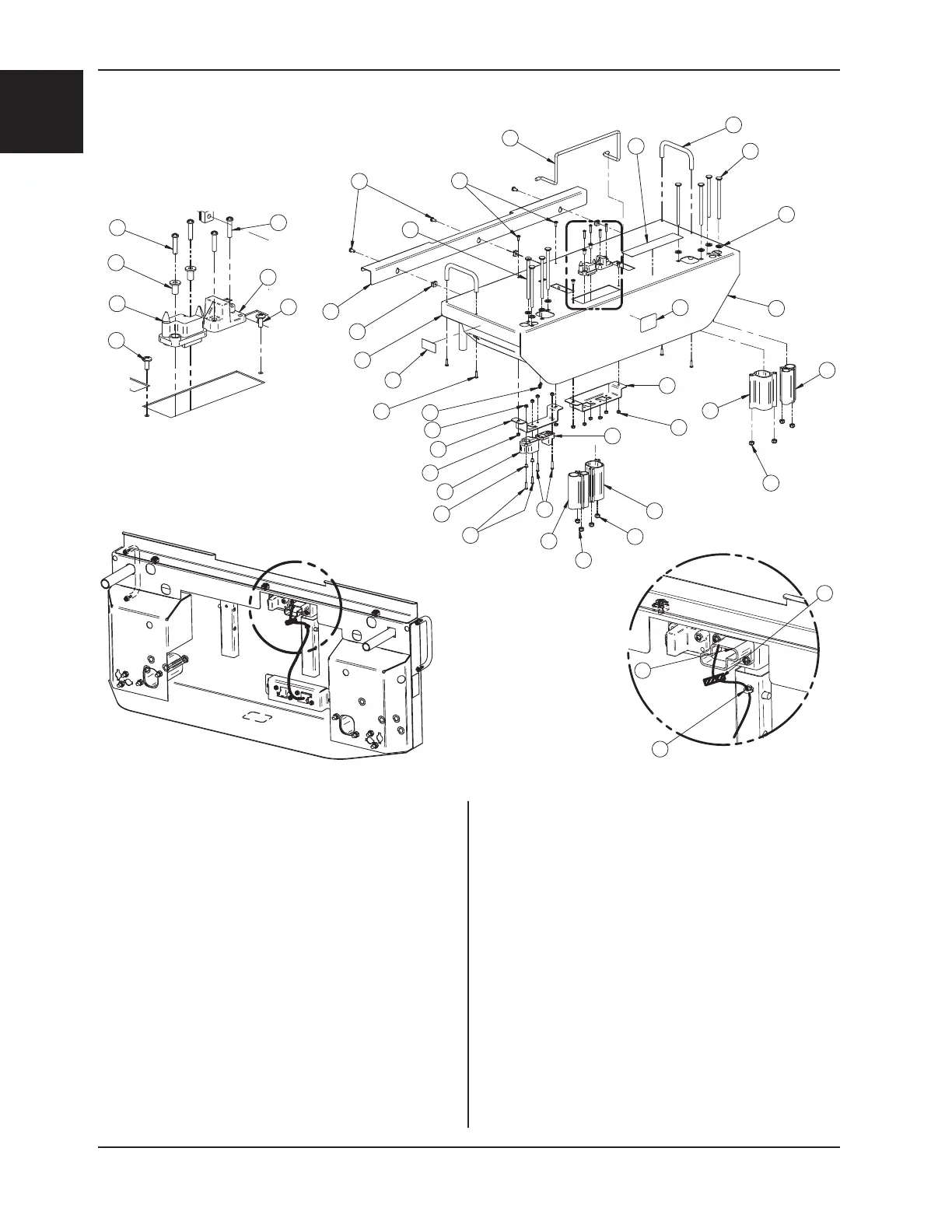

Bed Extender without Scale - FA64164
L64-086 Rev F (Reference Only)
14
7
4
6
2
13
19
20
21
26
20
8
21
9
21
4
27
17
19
15
8
9
28
16
22
25
5
20
10
1
18
24
23
13
10
11
12
3
24
1
26
26
24
1 QP28-0182 Protective Cap 2
2 64-1337P Foot End Mattress Retainer 1
3 25-0527Z Connector Sleeve 2
4 64-0781P Bed Extender 1
5 64-0996P Connector Support 1
6 64-0783P Male Connector Support 1
7 64-0995P Bed Extender Support 1
8 AAL28-0134 Head/Footboard Extrusions 2
9 AAL28-0144 Accessory Extrusion 2
10 QDF17-0139 Extension Cord 1
11 QDF2053 PVC Tape, Red 1
12 QDF28-0259 Foot Board Cable 1
13 QDF9518 Cable Tie 1
14 QE14399-T Label - Manufacturer 1
15 QE71-0697-T Label - Extension Warning 1
16 QE71-0874-F Label - Bed Extension 1
Item Part No. Part Name Qty.
17 QP14034 Mattress Retainer 2
18 QPNC0607 Nylon Shoulder Washer 2
19 VB35A1O72-13 Carriage Bolt 8
20 VE30A0G Nylon Hex Locknut 12
21 VE30A1O Nylon Hex Locknut 8
22 VE90A08 Stationary Nut 3
23 VV33A0G24 Pan Head Machine Screw 2
24 VV33A0G28 Pan Head Machine Screw 6
25 VV33A1N16-S Pan Head Machine Screw 3
26 VV37A0G16 Truss Head Machine Screw 4
27 VV83A9G24 Pan Head Tapping Screw 4
28 VW10C142402 Nylon Washer 8
Item Part No. Part Name Qty.
See Detail B
See Detail A
Detail B
Detail A
