www.stryker.com 280C-009-002 REV B 1-151
Return To Table of Contents
English

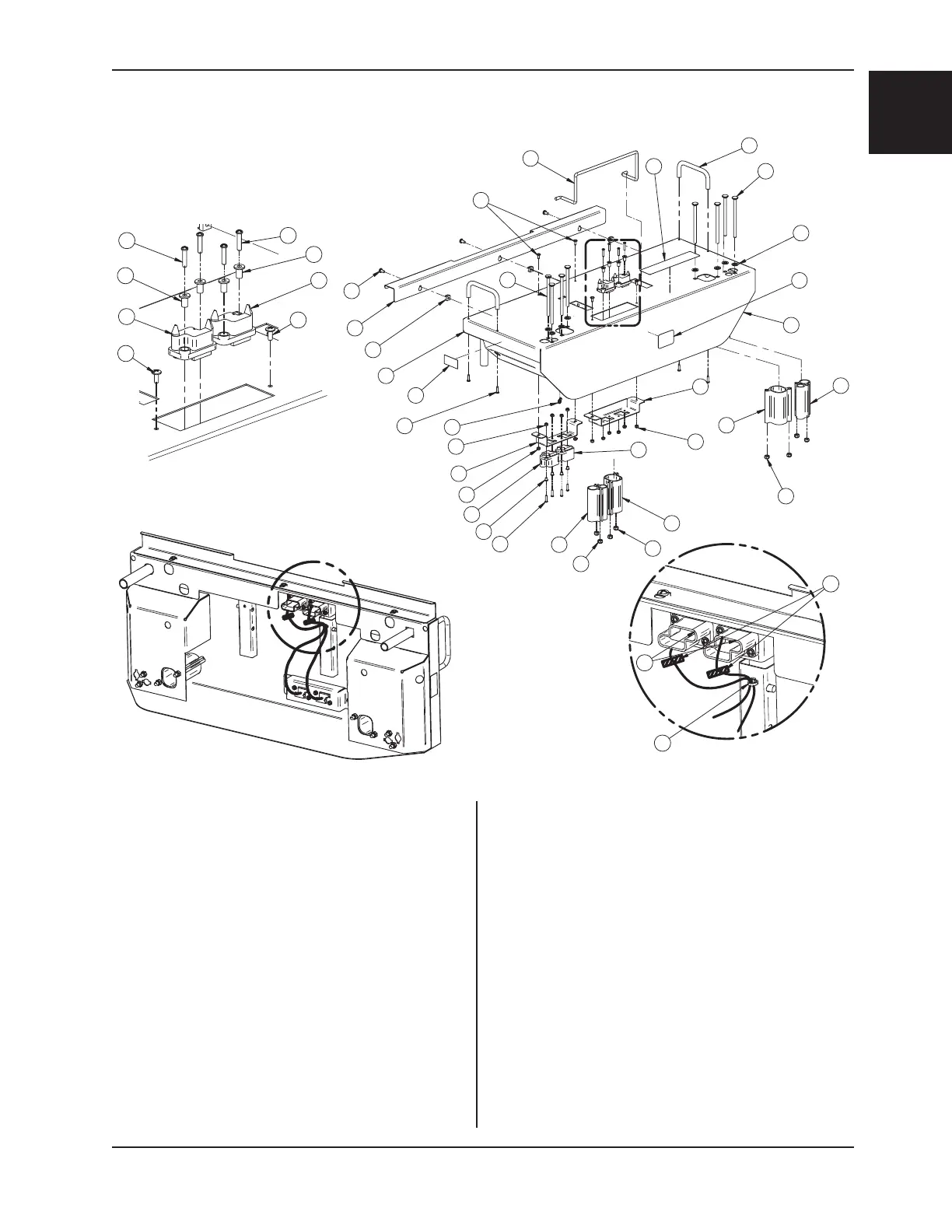

Bed Extender with Scale - FA64173
1 64-1337P Foot End Mattress Retainer 1
2 25-0527Z Connector Sleeve 4
3 AAL28-0134 Head/Footboard Extrusions 2
4 AAL28-0144 Accessory Extrusion 2
5 64-0995P Bed Extender Support 1
6 64-0781P Bed Extender 1
7 64-0782P Connector Support 1
8 64-0783P Male Connector Support 1
9 QDF17-0139 Extension Cord 2
10 QDF28-0259 Foot Board Cable 2
11 QDF9518 Cable Tie 1
12 QE14399-T Label - Manufacturer 1
13 QE71-0697-T Label - Extension Warning 1
14 QPNC0607 Nylon Shoulder Washer 4
15 VB35A1O72-13 Carriage Bolt 8
16 VE30A0G Nylon Hex Locknut 12
L64-102 Rev F (Reference Only)
Item Part No. Part Name Qty.
17 VE30A1O Nylon Hex Locknut 8
19 VV33A0G24 Pan Head Machine Screw 4
20 VV33A0G28 Pan Head Machine Screw 4
21 VV37A0G16 Truss Head Machine Screw 4
22 QP14034-B Mattress Retainer 2
23 VV83A9G24 Pan Head Tapping Screw 4
24 VW10C142402 Nylon Washer 8
25 QDF2053 PVC Tape, Red 1
26 QE71-0873-F Label - Bed Extension 1
27 VE90A08 Stationary Nut 3
28 VV33A1N16-S Pan Head Machine Screw 3
Item Part No. Part Name Qty.
12
5
6
7
8
1
11
15
16
17
21
16
3
17
16
4
17
6
23
22
15
13
3
4
24
26
28
27
9
9
19
14
11
9
25
10
2
20
21
21
20
10
2
See Detail A
Detail B
See Detail B
Detail A
