4-38 Sun Netra T5220 Server Service Manual • January 2012

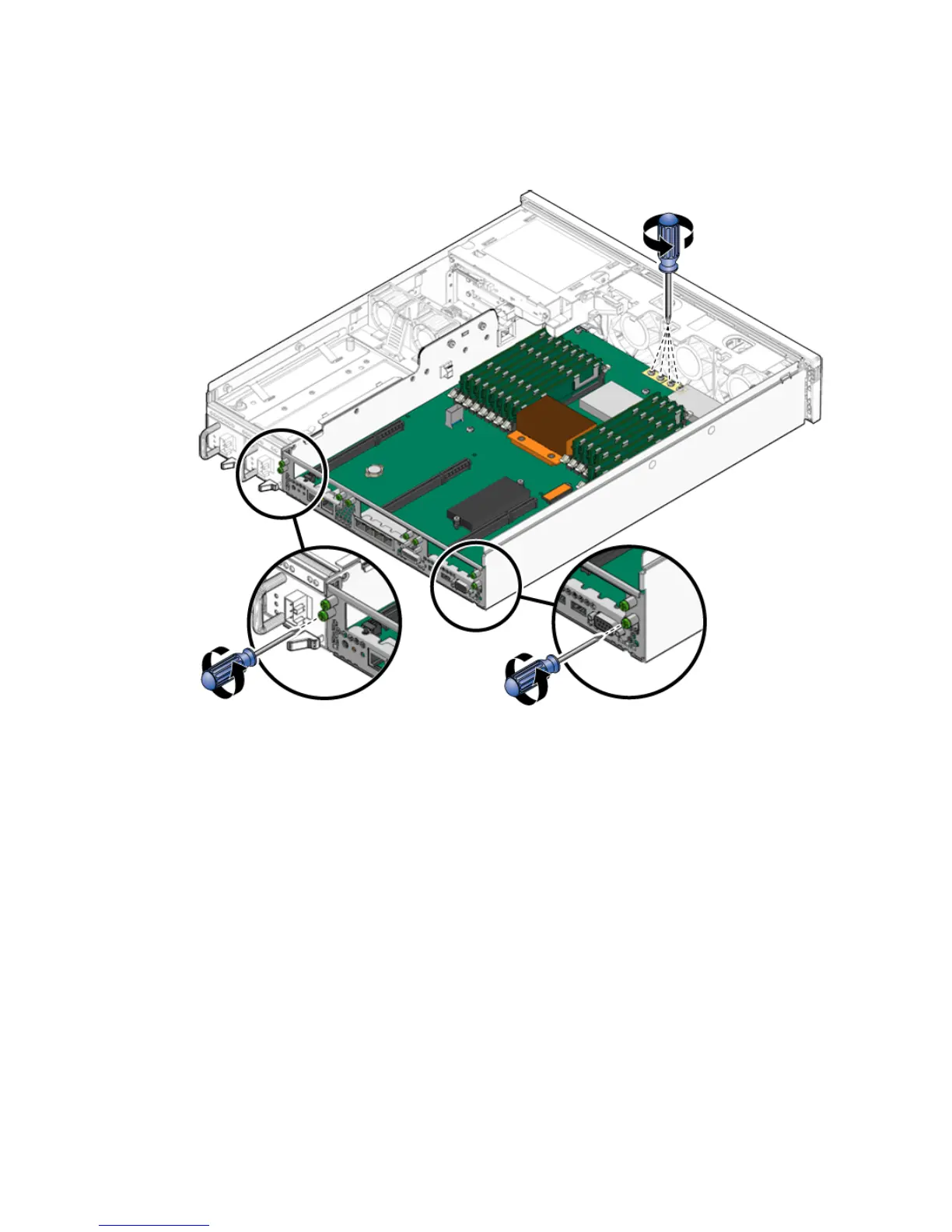

FIGURE 4-22 Removing the Motherboard Assembly Screws
6. Loosen the two captive screws at the center of the motherboard assembly
(
FIGURE 4-22).
7. Lift slighty and slide the motherboard assembly forward approximately one
inch (25.4 mm) (
FIGURE 4-23).
8. Lift up on the right edge to approximately a 45 degree angle (
FIGURE 4-23).
9. Remove the motherboard assembly from the chassis (
FIGURE 4-23).
