4. Tighten the two captive screws at the center of the motherboard assembly
(
FIGURE 4-25).

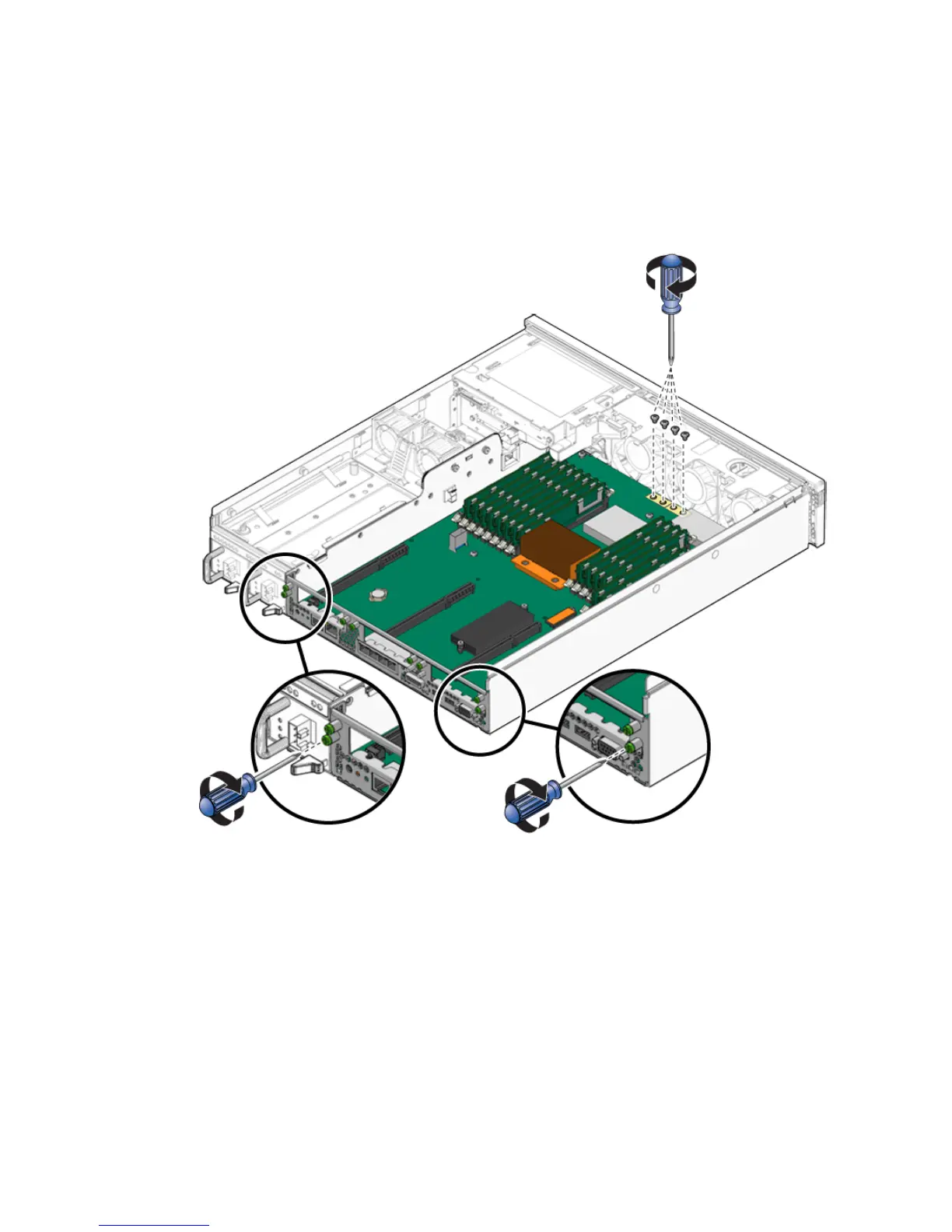

FIGURE 4-25 Installing the Motherboard Assembly Screws
5. Install the two power screws and four other screws that secure the motherboard
assembly to the chassis (
FIGURE 4-25).
6. Reconnect the cables to the following connectors on the motherboard assembly
(
FIGURE 4-26):
