Chapter 4 Replacing Motherboard Assembly Components 4-41

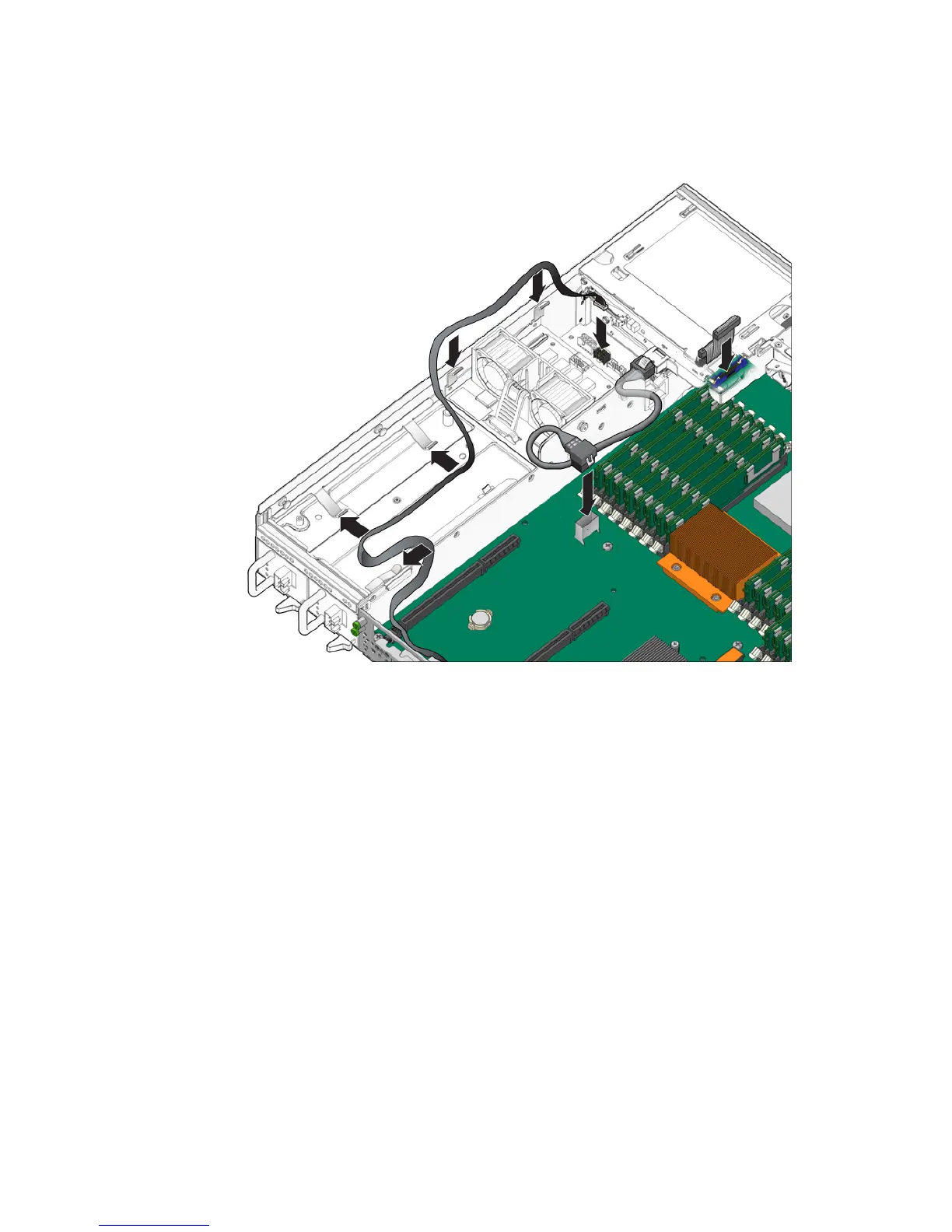

FIGURE 4-26 Reconnecting the Cables to the Motherboard Assembly
7. Install the following components:
■ SCC module (also known as IDPROM chip) – See Section 4.9.2, “Installing the
SCC Module” on page 4-35.
■ Alarm board – Section 5.6.2, “Installing the Alarm Board” on page 5-16
■ FB-DIMMs – Section 4.6, “Replacing FB-DIMMs” on page 4-23, “Installing
FB-DIMMs” on page 26
■ Fan assembly – Section 5.3.2, “Installing the System Fan Assembly” on page 5-8
■ FB-DIMM/CPU duct – Section 4.4.2, “Installing the Air Duct” on page 4-18
8. Bring the server back online.
See Section 4.1, “Powering Off and Powering On the Server” on page 4-1.
