5-20 Sun Netra T5220 Server Service Manual • January 2012

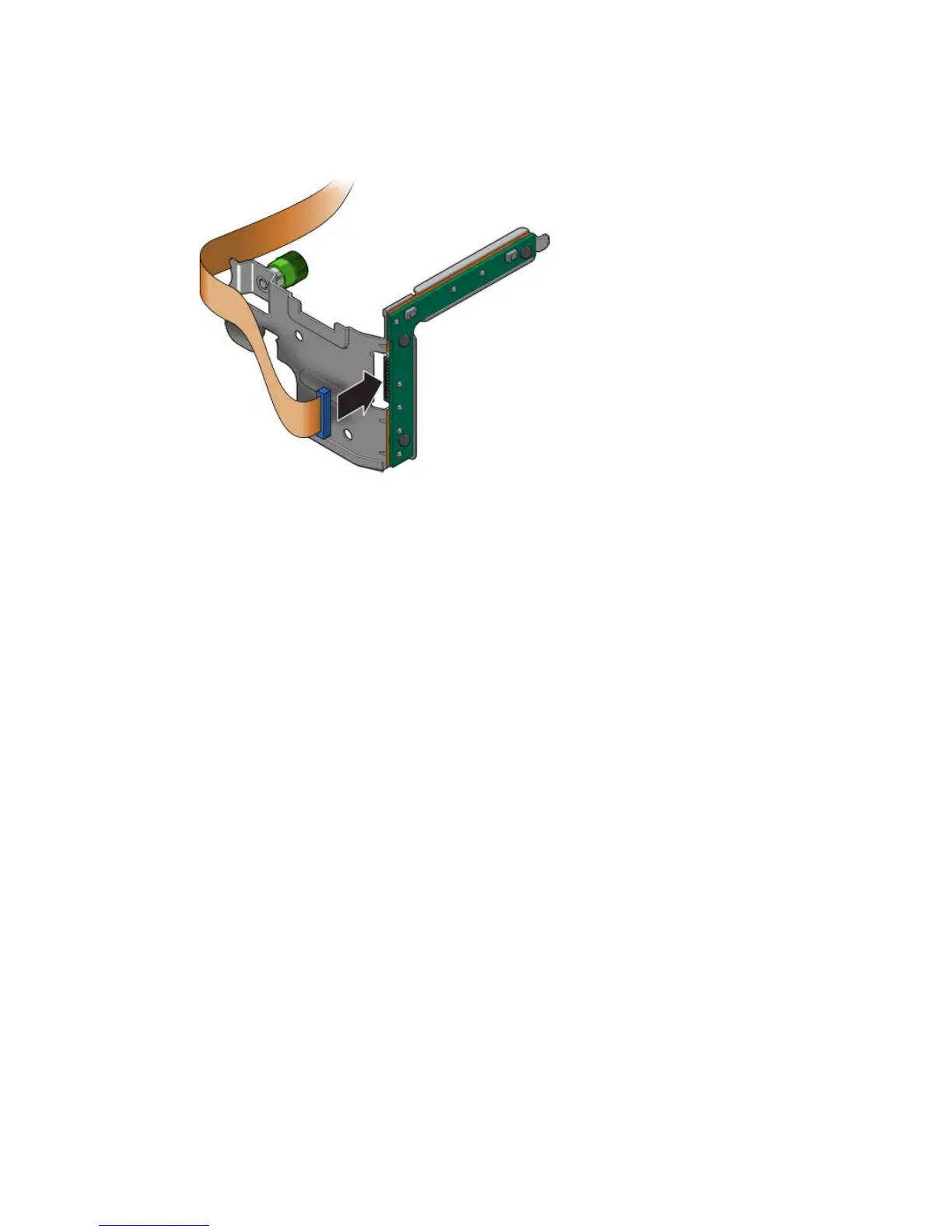

FIGURE 5-18 Connecting Cable to the LED Board
3. Insert the tab on the LED board into the slot on the chassis (FIGURE 5-19).
4. Swing the LED board right to the chassis and tighten the thumbscrew
(
FIGURE 5-19).
