Chapter 5 Replacing Chassis Components 5-21

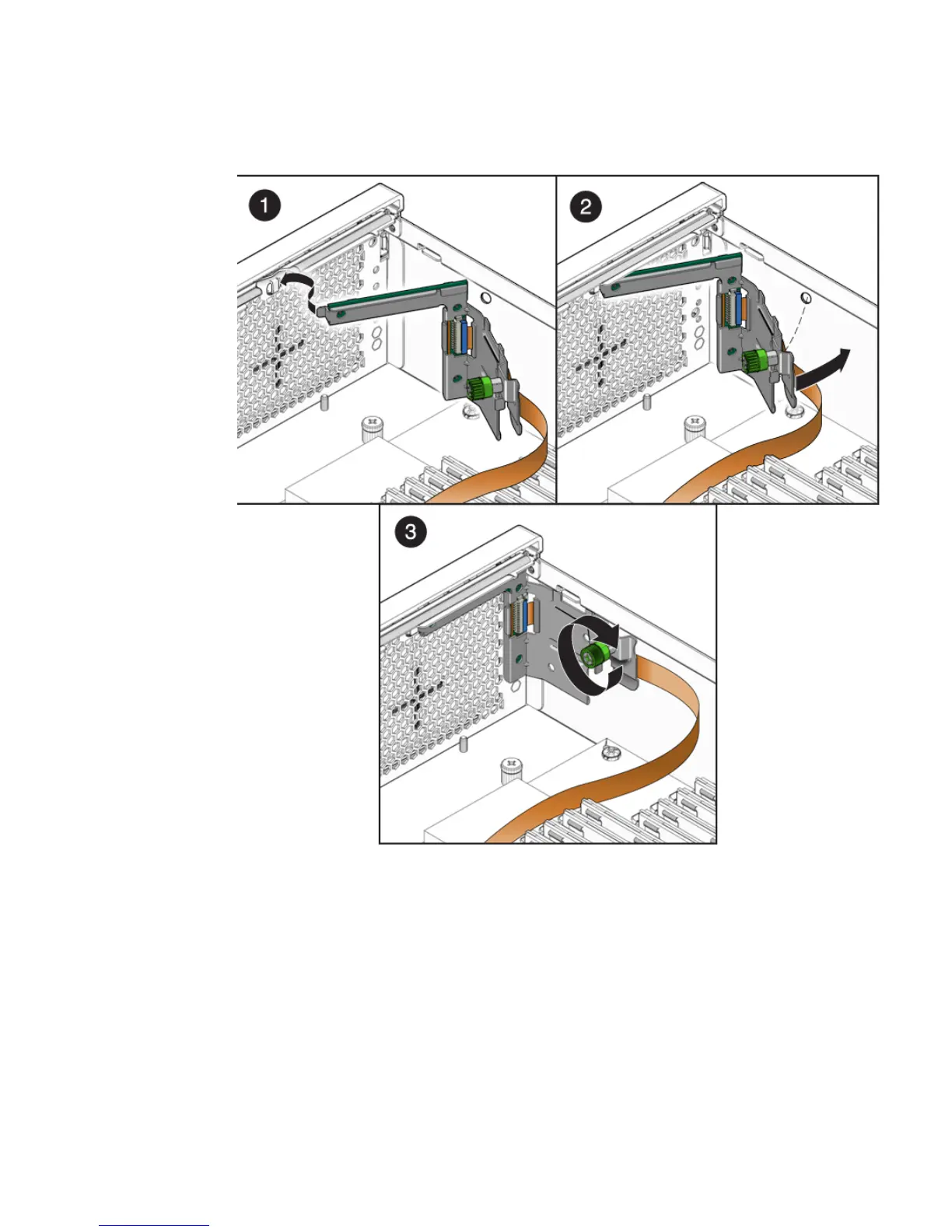

FIGURE 5-19 Inserting the LED Board Tab and Tightening Thumbscrew
5. Route the LED board cable back into the cable guides.
6. Install the system fan assembly.
See Section 5.3.2, “Installing the System Fan Assembly” on page 5-8.
7. Install the air duct.
See Section 4.4.2, “Installing the Air Duct” on page 4-18.
8. Perform the following tasks to bring the server back online:
■ Section 6.1.1, “Installing the PCI Mezzanine” on page 6-1
