Chapter 1 Server Diagnostics 1-9

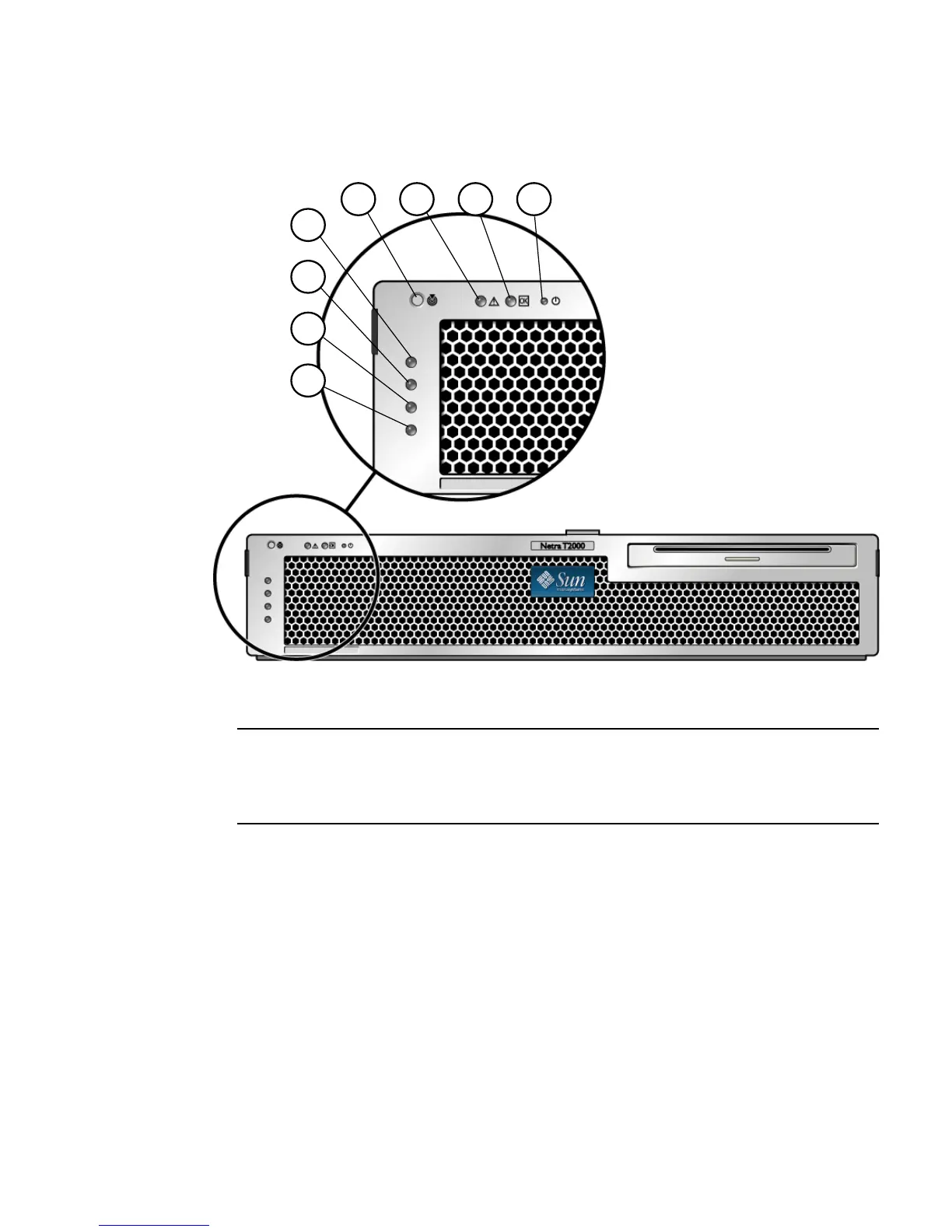

FIGURE 1-2 Location of the Bezel Server Status and Alarm Status Indicators
Figure Legend
1 User (amber) Alarm Status Indicator 5 Locator LED and Button
2 Minor (amber) Alarm Status Indicator 6 Fault LED
3 Major (red) Alarm Status Indicator 7 Activity LED
4 Critical (red) Alarm Status Indicator 8 PowerOKLED
5 6 7 8
4
3
2
1
