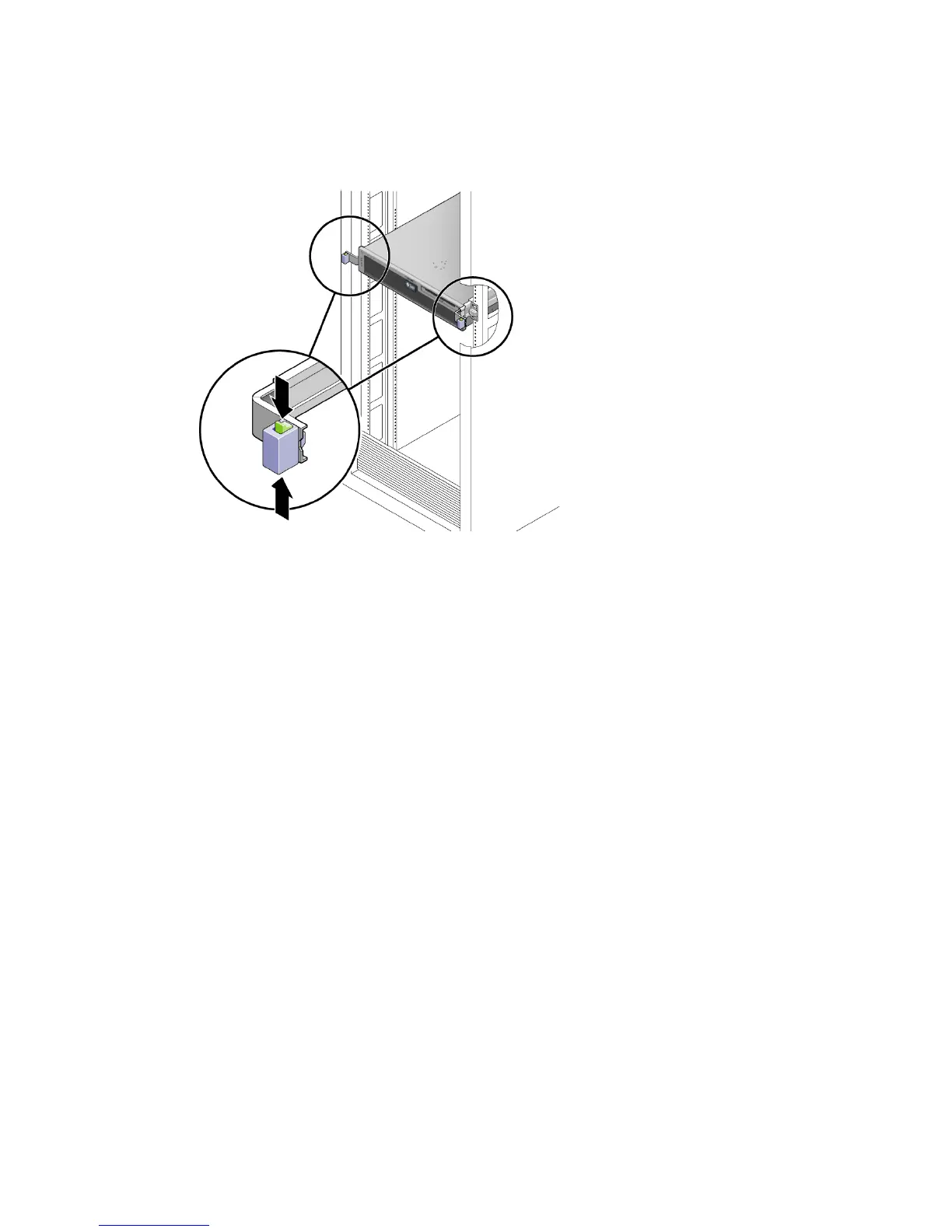

FIGURE 2-1 Slide Release Latches
3. While pinching the release latches, slowly pull the server forward until the
slide rails latch.
4. Press the metal lever (
FIGURE 2-2) that is located on the inner side of the rail to
disconnect the CMA from the rail assembly (on the right side from the rear of
the rack).
The CMA is still attached to the cabinet, but the server chassis is now
disconnected from the CMA.
