Chapter 4 Replacing Motherboard Assembly Components 4-3

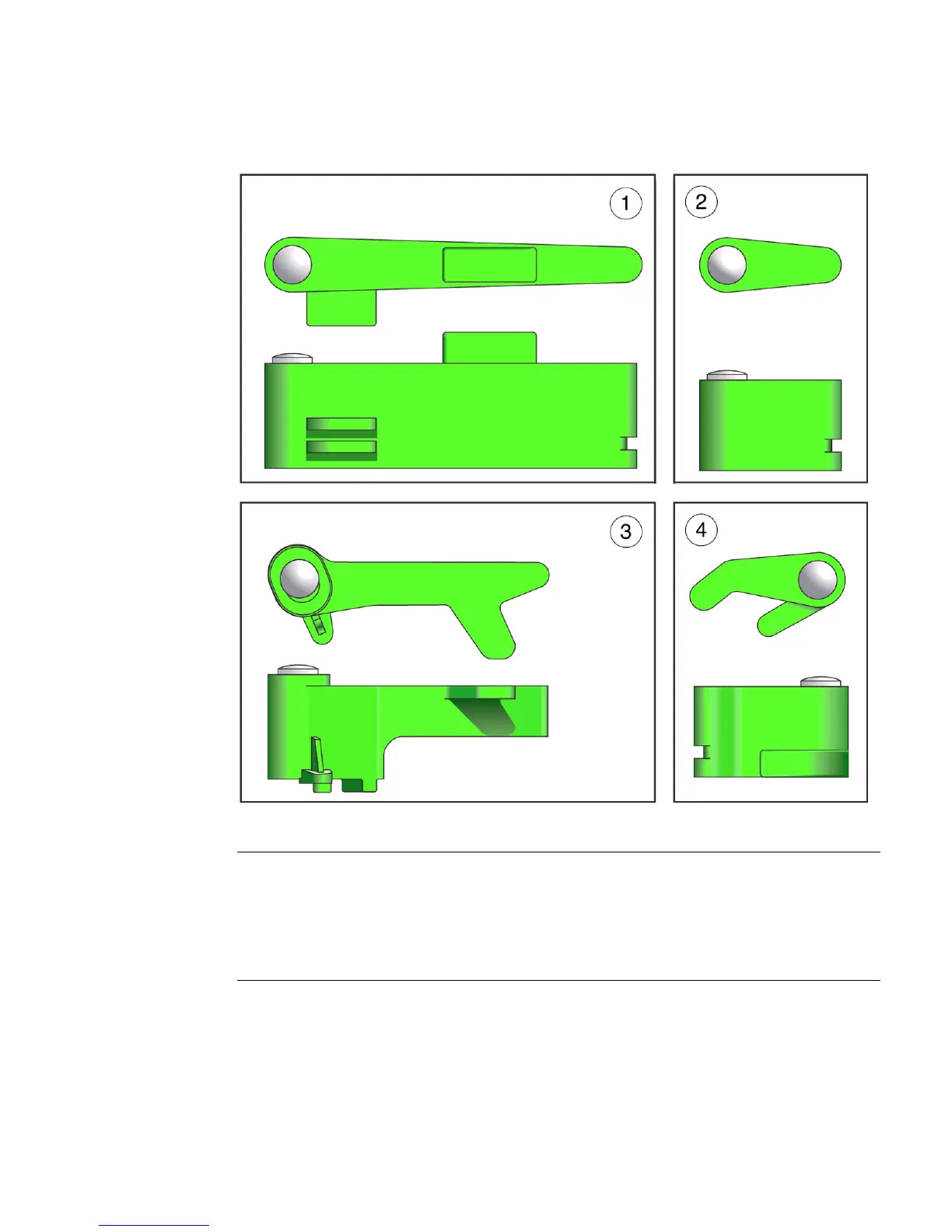

FIGURE 4-1 PCI Card Retainers
The following figure shows examples of how to use these retainers with differently
sized PCI cards.
Figure Legend
1 Long retainer; mfg part number: 340747400038, 60mm long
2 Short, straight retainer; mfg part number: 340747400037, 18mm long
(Note: This retainer fits the same cards as the short, curved retainer [4].)
3 Low-profile retainer; mfg part number: 340764100068, 48mm long
4 Short, curved retainer; mfg part number: 340747400039, 24mm long
(Note: This retainer fits the same cards as the short, straight retainer [2].)
