4-4 Sun Netra T5220 Server Service Manual • January 2012
Note – The short, straight retainers and the short, curved retainers can be used
interchangeably to secure the same cards. The short, curved retainer provides more
support.

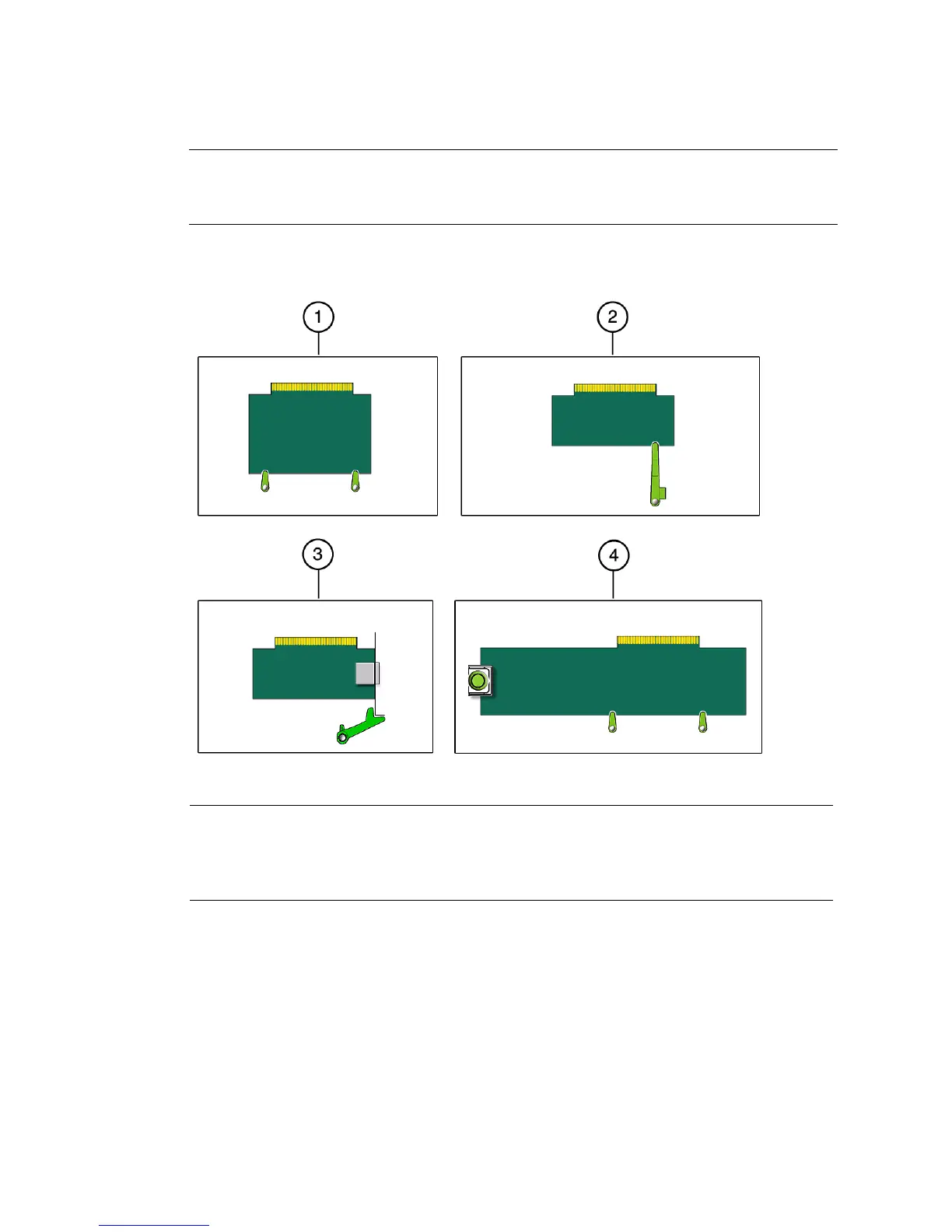

FIGURE 4-2 PCI Card Retainer Examples
Figure Legend
1 Half-length, standard-height card secured with two short retainers
2 Low-profile card secured with one long retainer
3 Low-profile card secured with one low-profile retainer
4 Full-length, standard-height card secured with two short retainers and the retainer on the air duct
