104 Sun Server X4-2 Service Manual • May 2014

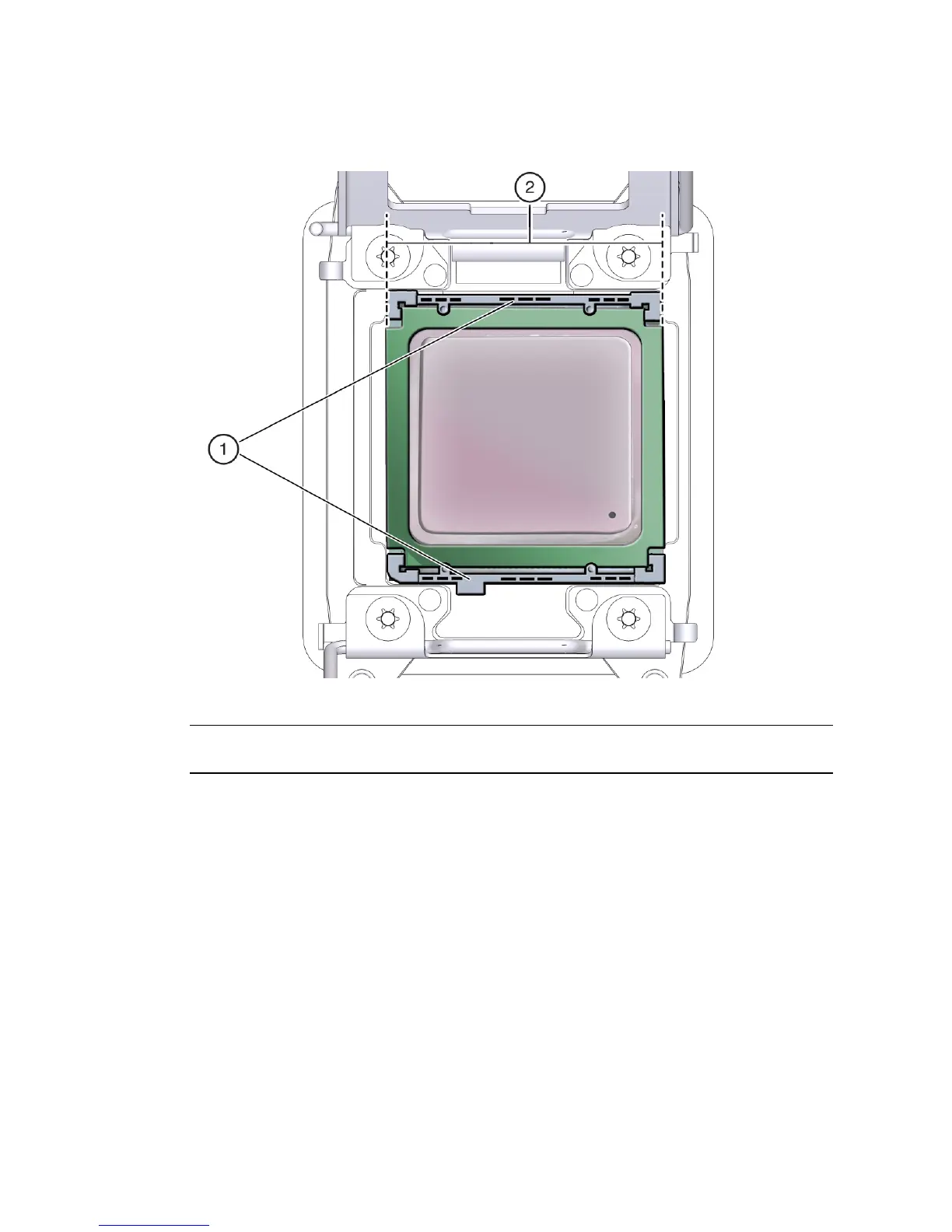

FIGURE: Larger Processor Installed in a Motherboard Processor Socket
After you have determined the size of the processor installed in your server, select
the correct processor removal/replacement tool. Like the processors, the processor
removal/replacement tool also comes in two sizes. The tool for the smaller
processors (processors with 10 or fewer cores) is color-coded green. The tool for the
larger processors (12-core processors) is color-coded pink. See FIGURE: Color-Coded
Processor Removal/Replacement Tools on page 105.
Figure Legend
1 Processor alignment brackets
2 Processor left and right edges extend beyond alignment bracket boundaries
