FIGURE: Color-Coded Processor Removal/Replacement Tools
Caution – The pink color-coded processor removal/replacement tool must be used
only with the larger processor (the 12-core processor). Likewise, the green
color-coded removal/replacement tool must be used only with smaller processors
(the 4-, 6-, 8-, and 10-core processors); otherwise, the processor or the processor
socket might be damaged.
The following table provides an easy reference for matching a processor (by number
of cores or model number) to the correct processor removal/replacement tool.

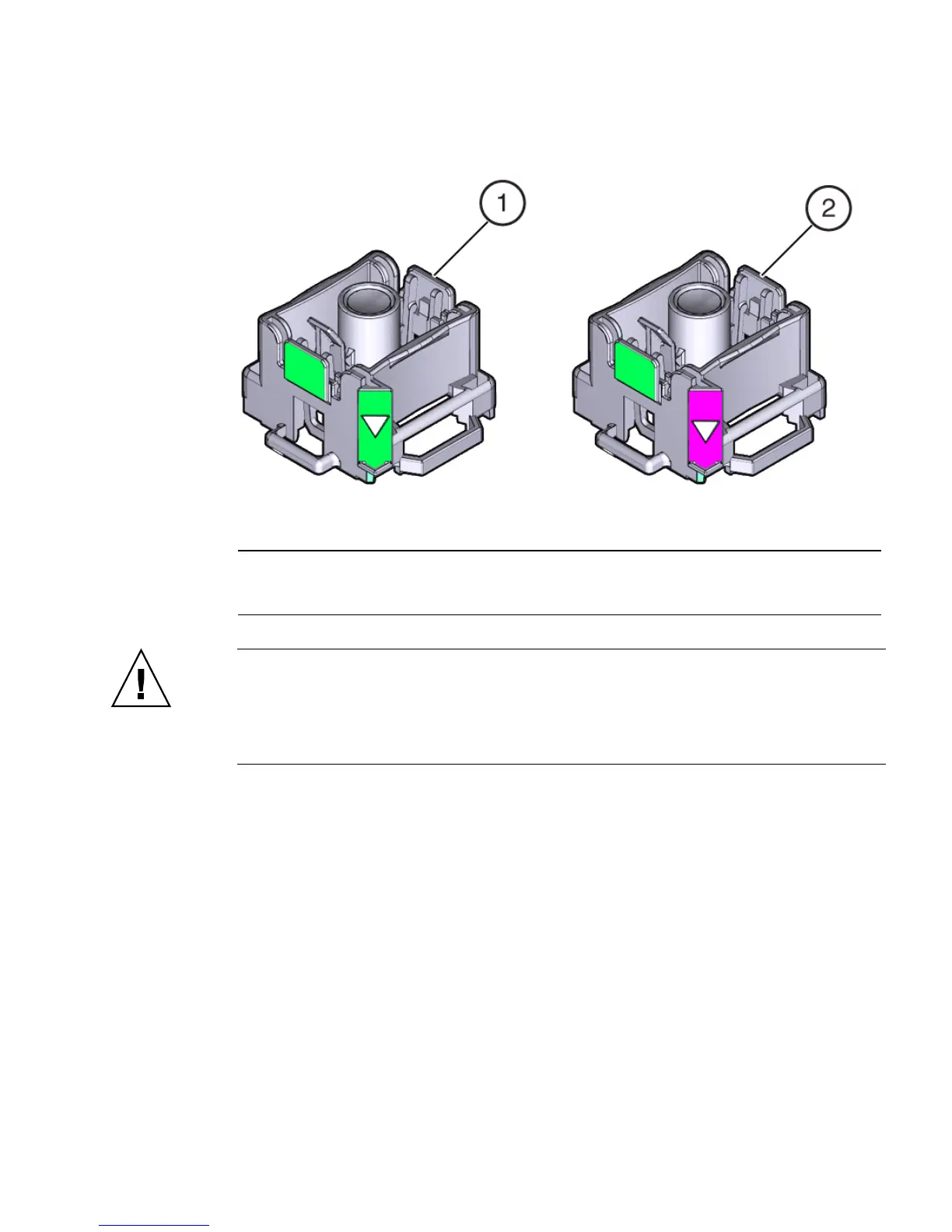

Figure Legend
1 Green, color-coded removal/replacement tool for the smaller processors—models E5-2609 V2
(4-core), E5-2630 V2 (6-core), E5-2650 V2 (8-core), and E5-2690 V2 (10-core)
2 Pink, color-coded removal/replacement tool for the larger processor—model E5-2697 V2 (12-core)
