Y Design Interval : It sets the distance between the repetitions (between start points) on the Y-axis.
Direction of the repetition is set by ‘＋’ or ‘－’.
＋
:
repeat in the X direction (right)
－
:
repeat in the Y direction (left)
X/Y Design Priority : It sets the priority between X and Y directions.
[Fig. 5.11.1-2] is X direction priority, [Fig. 5.11.1-3] is Y direction priority.
Design Interval Mode : It sets the type of movement between repeated designs.
There are Stop code and Jump code.
Stop code : The frame moves to the next design and stops.
Jump code : The frame moves to the next design and automatically starts
embroidery.
Distance +20mm Distance -20mm
Distance
Design start point
Distance
Design start point

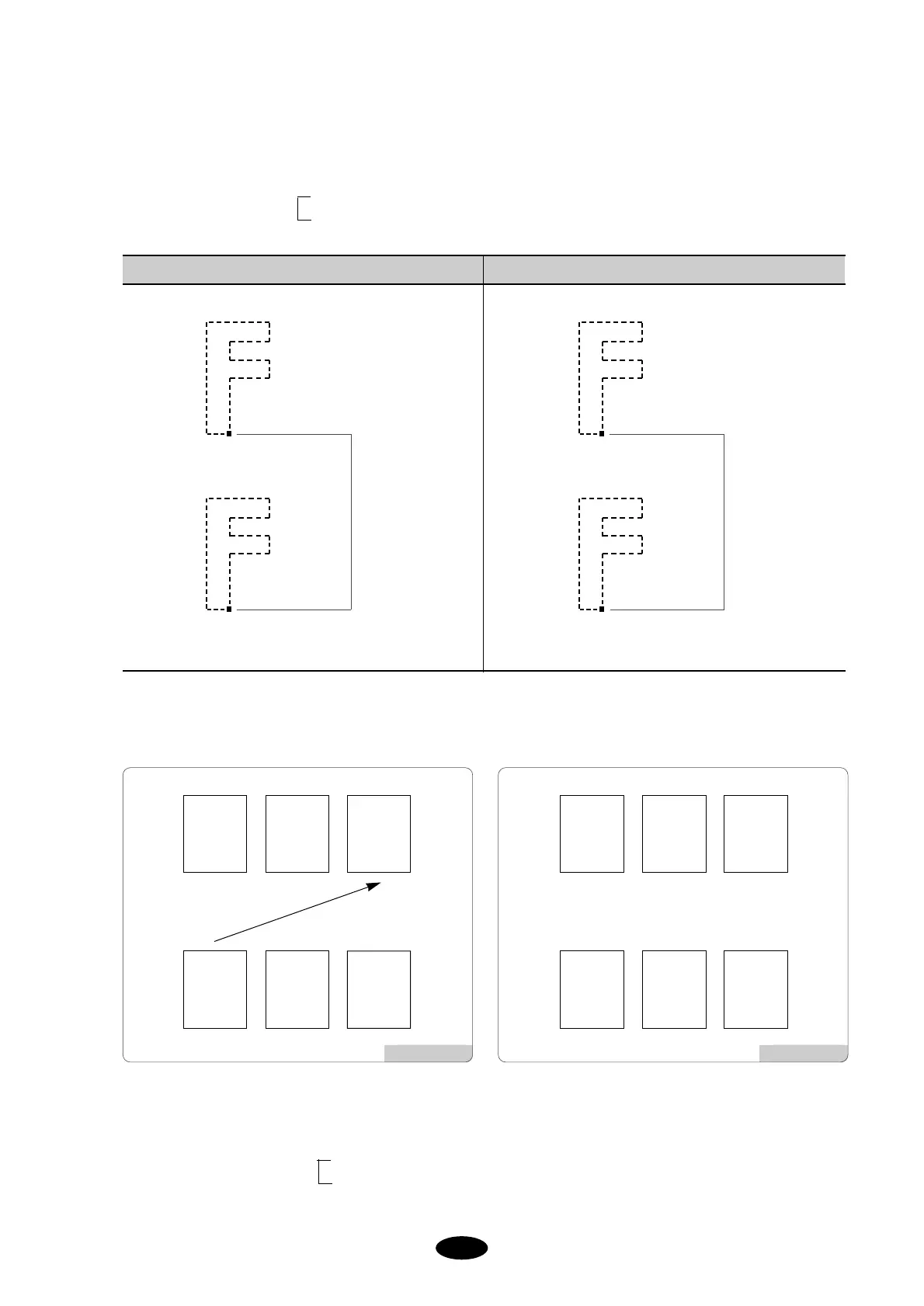

[Fig.5.11.1-2] [Fig.5.11.1-3]
