132 097-55501-01 Issue 6 – June 2003
1
TimeHub 5500 System Guide

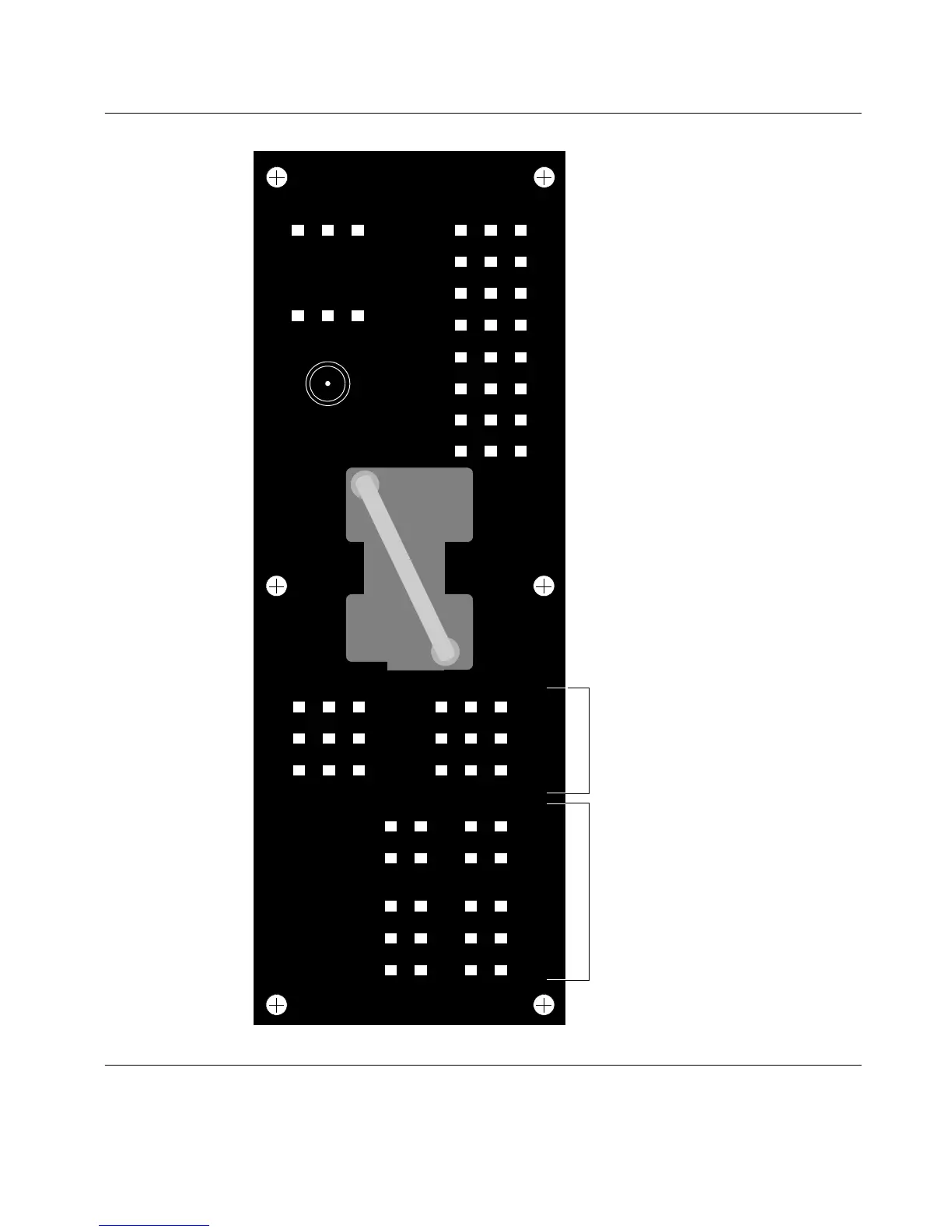

Figure 4-14. Input/Alarm Connector Module Connections
DS1 TERM IN
1
2
3
4
DS1 BRDG IN
CC IN 1
SRT
SRT
SRT
SRT
SRT
SRT
SRT
SRT
2
4
6
8
CC IN 2
5/10 MHZ IN
VIS
AUD
EXT ALM INPUTS
CNC NO
MN
MJ
CR
MN
MJ
CR
10
1
3
5
7
9
CNC NO
1
2
3
4
OFFICE ALARM
SRT
SRT
UNIVERSAL
CONTACT CLOSURE
ONLY
RTNALM RTNALM
RTNALM RTNALM
RTNALM RTNALM
Office Alarms
External Alarms
