097-55501-01 Issue 6 – June 2003 35
2
5
3
Description
Using TimeScan THC software, the clear attempt can be activated via the
following sequence:
1. Select the Configuration --> Output screen (Figure 1-3) and identify
the output card group that is to have port alarm clear attempted. In
the example shown, the C output group on the Master shelf is
selected.

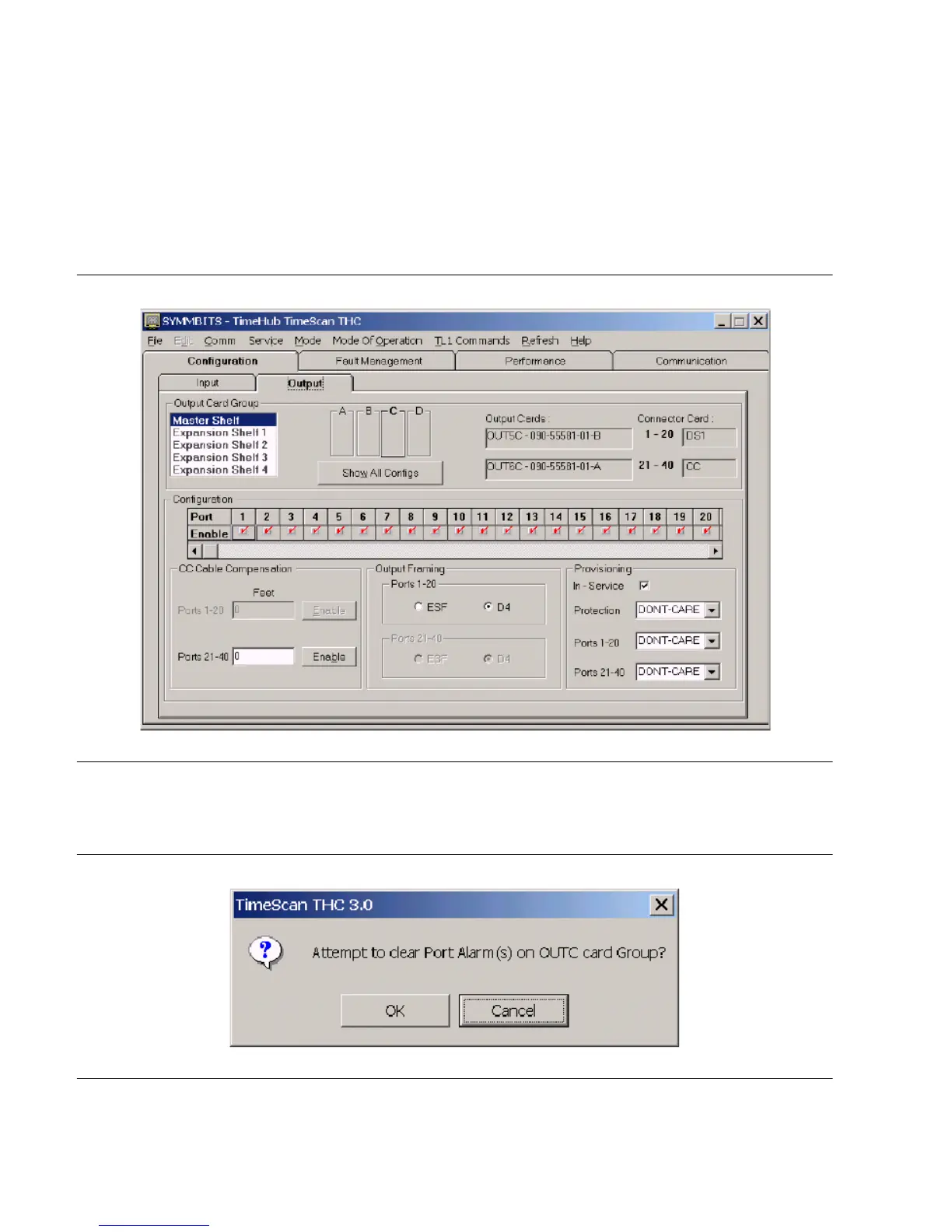

Figure 1-3. Configuration --> Output Screen
2. Select the Service --> Port Alarm Clear... menu, which will bring up
a screen similar to Figure 1-4.
Figure 1-4. Attempt to Clear Port Alarm Query Screen
To Next Page
